YAMAHA YSM10 High-Speed Compact Modular Mounter
Request a quote

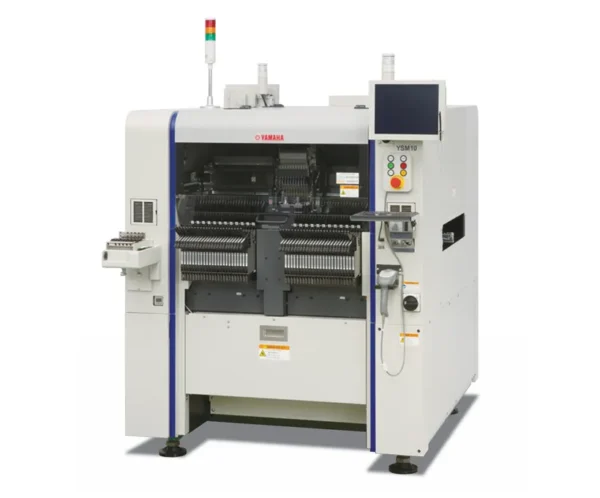

YSM10 — High-Speed Compact Modular Mounter
46,000 CPH±0.035mm Accuracy0201–55×100mm96 Feederse-Vision + Side View
- 🚀 46,000 CPH (HM head) — 2-3× faster than legacy placement
- 🎯 ±0.035mm accuracy · 0201/03015 metric components
- 🏭 YAMAHA YSM platform · THK · Panasonic · SMC · ISO 9001 · CE
PICK AND PLACE MACHINE
JHIMS YSM10 High-Speed Compact Modular Mounter
Achieve 46,000 CPH world’s-fastest mounting speed in the 1-beam 1-head class. Single-head handles 0201 to 55×100mm components with no head replacement. Integrates 3 machine types into 1 platform — proudly distributed by JHIMS, authorized YAMAHA global partner.
ISO 9001 Certified
CE Compliant
Serving 2,456+ Clients in 30+ Countries
36 R&D Engineers
Est. 2012 — 12+ Years of Excellence
Automotive Tier-1 Supplier
Medical Device Manufacturer
Consumer Electronics OEM
Industrial Automation Leader
LED Lighting Manufacturer
Medical Device Manufacturer
Consumer Electronics OEM
Industrial Automation Leader
LED Lighting Manufacturer
Explore JHIMS Solutions: Learn more about SMT assembly equipment and PCBA manufacturing solutions. Looking for specific applications? Discover our expertise in pick and place machines and reflow ovens for complete SMT line integration.
Pain Points & JHIMS Solutions
Common SMT Placement Challenges
- Multiple machines needed to cover different component sizes — high capital cost and floor space
- Head replacement between 0201 chips and large connectors wastes 15-30 minutes per change
- High pickup error rates (2,000+ PPM) causing rework costs and component waste
- Slow component recognition programming — hours of manual data entry for new parts
- Limited feeder capacity (40-60 lanes) forcing frequent reloads and line stops
- One machine, one function — inflexible for high-mix/low-volume production
- High operating cost from dedicated operators per machine and excessive floor space
YSM10 + JHIMS Automation Solutions
- Single platform replaces 3 machines (YS12+YS12P+YS12F) — 67% floor space savings
- 1-head solution: 0201 to 55×100mm without head replacement — zero changeover downtime
- Pickup error rate below 200 PPM — 10× better than legacy systems
- e-Vision auto recognition: new part data generation takes ~1 minute instead of hours
- 96 feeder lanes + 15 tray positions (sATS15) — 2× more than conventional machines
- Ultra-flexible: handles consumer, automotive, medical, industrial PCBs in one platform
- 46,000 CPH mounting speed — 25%+ faster than previous generation

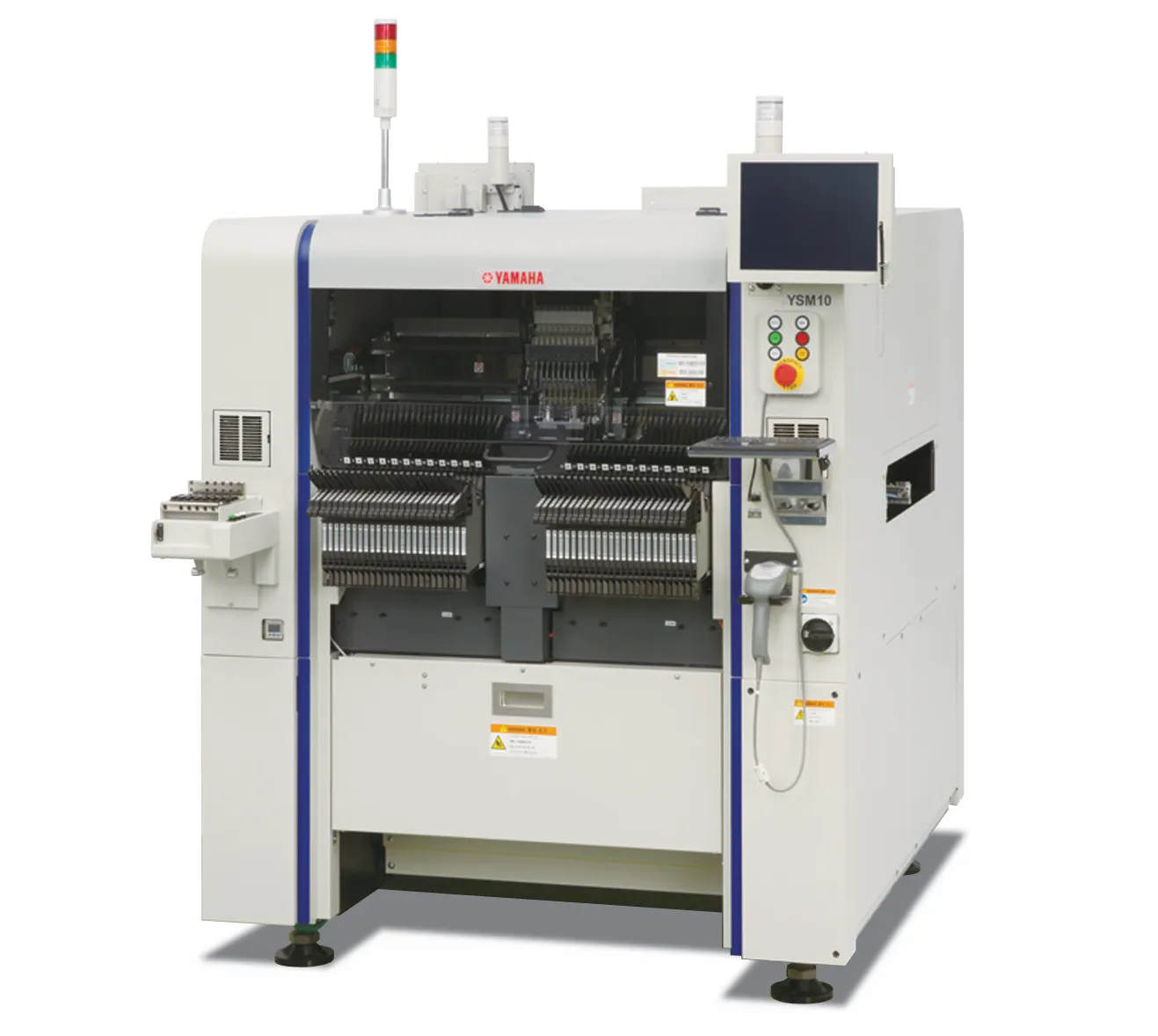

Product Overview — YSM10 High-Speed Modular Mounter
The YAMAHA YSM10 pick and place machine is a high-speed compact modular mounter that achieves the world’s fastest mounting speed of 46,000 CPH in the 1-beam 1-head class. As an authorized YAMAHA distributor, JHIMS provides global sales, technical support, and after-sales service for this entry-level powerhouse. The YSM10 pick and place machine combines ±0.035mm accuracy (±0.025mm at Cpk≥1.0) with e-Vision auto recognition and Side View detection.
Built by YAMAHA with THK linear guides, Panasonic servo drives, SMC pneumatics, IGUS cable management and Hikvision vision components for 24/7 industrial reliability.
Applications: Consumer electronics, automotive electronics, medical devices, industrial automation, home appliances, new energy and LED lighting SMT assembly.
Key Features of the YSM10 High-Speed Mounter
🔧
HM Multi-Purpose Head (10 Nozzles)
Standard high-speed multi head with 10 nozzles handles 0201 to 55×100mm components in a single setup. No head replacement required — the same head technology used in YAMAHA’s high-end models, now available in an entry-level platform. HM5 economy head (5 nozzles) also available.
📷
New Scan Camera Technology
On-the-fly component recognition for parts up to 12×12mm at full speed. Improved scan camera performance eliminates the speed penalty traditionally associated with vision systems. Combined with the optional multi-camera for larger parts up to 55×100mm and 15mm height.
🧠
e-Vision Auto Recognition Optimizer
Revolutionary smart recognition system that auto-generates component data in approximately 1 minute. Simply load the component image, edit the contour, and the system automatically generates recognition parameters and runs a verification test. Prevents pickup and recognition errors on complex-shaped parts.
👁️
Side View Detection Function
Real-time component verification with zero time loss. Detects component presence, missing parts, and pickup status during the mounting cycle. Completely solves mounting errors before they reach reflow — no additional cycle time required.
🔫
Automatic Nozzle Management System
Automatic nozzle exchange station with intelligent nozzle health monitoring. The blow station automatically cleans nozzle shafts to maintain peak performance during long production runs. Nozzle health check applies automatic recovery processes including blow cleaning and nozzle protection to prevent use of abnormal nozzles.
📦
Intelligent SS/ZS Electric Feeders
Electric-drive intelligent feeders with 96-lane capacity (8mm tape conversion) plus 15-tray automatic tray supply unit (sATS15). SS and ZS feeders are fully compatible with all YS series models. Auto-teach pickup height and position compensation ensure superb pickup performance.
🖥️
Multi-Language Touch Panel
Intuitive touch-screen interface with one-key language switching between Japanese, English, Chinese, Korean, and German. Smooth, simple operation designed for global manufacturing environments. Full operation logging with diagnostic capabilities.
📐
Ultra-Compact Footprint
At L1,254×W1,440×H1,445mm and just 1,270kg, the YSM10 fits into tight production floor layouts. Features 4 software-selectable conveyor directions (L→R, R→L, L→L, R→R) for flexible line integration. Optional PCB length extension to 610mm.
Technical Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Model | YSM10 | Type | High-Speed Compact Modular Mounter |
| Applicable PCB (Min) | L50 × W50 mm | Applicable PCB (Max) | L510 × W460 mm (Option: L610 mm) |
| Applicable Components (Min) | 0201 / 03015 Metric (0.3×0.15mm) | Applicable Components (Max) | W55 × L100 mm, Height ≤ 15mm |
| Mounting Speed (HM Head) | 46,000 CPH (Optimal) / 30,000 CPH (IPC9850) | Mounting Speed (HM5 Head) | 31,000 CPH (Optimal) / 20,000 CPH (IPC9850) |
| Mounting Accuracy | ±0.035mm (±0.025mm) Cpk ≥ 1.0 (3σ) | Head Types | HM (10 Nozzles) / HM5 (5 Nozzles) |
| Feeder Capacity | Fixed: Max 96 Types (8mm Tape) | Tray Capacity | 15 Types (sATS15, JEDEC) |
| Camera System | Scan Camera (≤12×12mm) + Optional Multi Camera | Multi Camera Range | Up to W55×L100mm, Height ≤ 15mm |
| Power Supply | 3-Phase AC 200/208/220/240/380/400/416V ±10%, 50/60Hz | Air Supply | 0.45 MPa+, Clean & Dry |
| External Dimensions | L1,254 × W1,440 × H1,445 mm | Weight | Approx. 1,270 kg |
| Conveyor Direction | L→R; R→L; L→L; R→R (Software-selectable) | Conveyor Height | 900±10 mm (Standard) |
| Display Languages | JP / EN / CN / KR / DE (One-key Switch) | Compliance | CE Marking (EU Safety Standard) |
| Feeder Type | SS Feeder & ZS Feeder (YS Series Compatible) | Nozzle Station | Auto Exchange + Health Check + Cleaning |
Machine Configuration — Premium Global Components
Every YAMAHA YSM10 is built with world-class components from leading global brands.
YAMAHA
🇯🇵 Japan
Servo System & Motion Control
THK
🇯🇵 Japan
Linear Motion Guides
Panasonic
🇯🇵 Japan
Servo Motor Drives
SMC
🇯🇵 Japan
Pneumatic Components
IGUS
🇩🇪 Germany
Cable Management System
Hikvision
🇨🇳 China
CCD Vision Camera
Applications & Industries
The YAMAHA YSM10 is deployed across mission-critical electronics manufacturing sectors worldwide.
📱
Consumer Electronics
🚗
Automotive Electronics
🏥
Medical Devices
🏭
Industrial Automation
🏠
Home Appliances
🔋
New Energy
💡
LED Lighting
Industry Solutions & Technical Guides
Industry-Specific SMT Placement Solutions
Automotive Electronics
The YSM10 meets rigorous automotive reliability standards including IATF 16949. Its ±0.035mm accuracy handles fine-pitch components for ECU modules, BMS controllers, ADAS sensor boards, and infotainment systems. The 96-lane feeder capacity supports the high component variety typical of automotive PCBs, while the 1-head solution eliminates head-change downtime during high-mix production runs.
Medical Devices
Medical electronics demand zero-defect manufacturing. The YSM10’s Side View detection catches missing components and pickup errors in real-time with zero cycle time impact. Combined with the e-Vision recognition optimizer, setup validation for medical device PCBs is reduced from hours to minutes. CE marking compliance ensures the machine meets EU safety requirements for medical manufacturing environments.
Consumer Electronics
High-volume production of smartphones, tablets, wearables, and IoT devices demands maximum throughput. The YSM10’s 46,000 CPH mounting speed — 25%+ faster than previous generation — delivers the capacity needed. The SS/ZS electric feeders provide reliable, high-speed tape advancement with minimal maintenance, while the 96-lane capacity reduces feeder reload frequency during extended runs.
Industrial & New Energy
For power electronics, inverters, BMS boards, and industrial controllers, the YSM10 handles large connectors up to 55×100mm and 15mm in height. The multi-camera system’s segmented recognition processes oversized components without speed penalties. The automatic tray supply unit (sATS15) accommodates 15 JEDEC trays for large, odd-form components in industrial applications.
SMT Pick-and-Place Technology Guide
Understanding modern SMT placement technology is essential for optimizing your PCB assembly process. Below is a comprehensive technical reference for engineers and process managers.
Component Recognition Technology
The YSM10 employs dual-camera architecture: the on-the-fly Scan Camera handles components up to 12×12mm at full speed, while the optional Multi Camera provides high-resolution recognition for larger parts up to 55×100mm. The system uses advanced image processing with sub-pixel accuracy, achieving ±0.035mm placement precision. For complex-shaped connectors and BGAs, the e-Vision system generates recognition parameters automatically from component images.
Pickup System Optimization
The YSM10’s automatic pickup height teach function measures the optimal Z-axis position for each feeder lane, compensating for tape thickness variations and feeder wear. Combined with the pickup position auto-compensator, the system maintains pickup success rates above 99.98% (<200 PPM errors). The Side View detection verifies pickup status during transport with zero time loss, catching missing or misaligned components before placement.
Feeder Technology Comparison
The SS (Smart Servo) feeder uses a servo motor with closed-loop feedback for precise tape indexing. The ZS (Z-axis Servo) feeder adds independent Z-axis control for each lane, optimizing pickup height per component type. Both feeders support 8mm through 56mm tape widths and are fully compatible across all YS series platforms. Electric drive eliminates the maintenance and inconsistency of pneumatic feeders.
Line Balancing & Cycle Time Optimization
At 46,000 CPH, the YSM10 typically serves as the primary high-speed placer in a multi-machine line. Optimal line configuration pairs the YSM10 with a flexible placer for large/odd-form components. The 4-direction conveyor flexibility enables left-to-right, right-to-left, or U-shaped line layouts. For high-volume single-product lines, the 96-lane feeder capacity supports extended unattended operation of 4+ hours between reloads.
Manufacturing Best Practices Guide
Maximize your YSM10’s performance with these proven manufacturing operation and maintenance guidelines.
Daily Startup Checklist
1. Verify 3-phase power at correct voltage (200-416V ±10%). 2. Check air supply at 0.45MPa minimum, clean and dry. 3. Inspect all nozzles for wear or clogging — run nozzle health check. 4. Verify feeder lane assignments match production program. 5. Run automatic pickup calibration for all active feeder positions. 6. Confirm conveyor width setting for first PCB batch. 7. Execute test placement run with verification using Side View detection before starting full production.
Preventive Maintenance Schedule
Daily: Clean nozzle shafts (blow station auto-cycle), inspect feeder indexing, check vacuum levels. Weekly: Clean scan camera lens and mirrors, inspect all belts for tension and wear, verify conveyor alignment. Monthly: Lubricate linear guides (YAMAHA-specified grease), calibrate placement accuracy with test board, clean/replace air filters. Quarterly: Full system calibration including multi-camera alignment, replace vacuum pump filters, update software. Annually: Comprehensive service by JHIMS-certified engineer — includes full mechanical inspection, servo tuning, and performance validation.
Changeover Best Practices
1. Pre-load next production program during current run — the YSM10’s Windows-based control supports background program editing. 2. Use the automatic nozzle exchange station to swap nozzle sets without manual handling. 3. SS/ZS feeders can be pre-loaded offline and swapped as complete units — zero on-machine setup time. 4. Export and store verified component recognition data for reuse — e-Vision data is transferable between YS series machines. 5. Target changeover time: under 15 minutes for a complete product switch with 60+ component types.
Environmental Control Requirements
Maintain cleanroom class 100,000 (ISO 8) or better. Temperature: 22±3°C. Humidity: 45±10% RH. The YSM10’s enclosed design protects internal mechanisms, but consistent environmental control extends component life and maintains placement accuracy. Power stability is critical — use a voltage stabilizer if mains supply fluctuates beyond ±10%. For lead-free soldering environments, ensure adequate ventilation to prevent flux residue accumulation on optical surfaces.
Production Workflow — YSM10 in Your SMT Line
See exactly where the YAMAHA YSM10 fits in your PCB assembly process and how it integrates with upstream and downstream equipment.
📦
PCB Loader
PCB Loader
→
🖨️
Solder Paste Printer
Solder Paste Printer
→
🔍
SPI Inspection
SPI Inspection
→
🤖
YSM10 Mounter
⭐ This Product
YSM10 Mounter
⭐ This Product
→
🔥
Reflow Oven
Reflow Oven
→
🔎
AOI Inspection
AOI Inspection
→
📤
PCB Unloader
PCB Unloader
The YSM10 pick-and-place mounter is the core of the SMT assembly line — placement speed and accuracy directly determine overall line throughput. JHIMS offers complete line integration support including upstream stencil printers, SPI, downstream reflow ovens, and AOI systems for seamless MES/ERP connectivity.
Legacy Placement vs. YSM10 High-Speed Mounter
| Metric | Legacy / Low-Speed Placement | YAMAHA YSM10 | Advantage |
|---|---|---|---|
| Placement Speed | 15,000–25,000 CPH | 46,000 CPH | 2-3× Faster |
| Component Range | Requires 2-3 machines/heads | 0201 to 55×100mm — Single Head | 3 Machines → 1 |
| Head Change Time | 15–30 minutes per change | Zero — No Head Replacement Needed | Completely Solved |
| Pickup Error Rate | 2,000+ PPM | <200 PPM | 10× Fewer Errors |
| Vision Programming | 2–4 hours per new component | ~1 minute (e-Vision) | 100-200× Faster |
| Feeder Capacity | 40–60 lanes | 96 lanes + 15 trays | 2× Capacity |
| Floor Space | 3 machines required | Single L1,254×W1,440mm unit | 67% Space Savings |
| Annual Capacity (8h shift) | ~300,000 placements/h total | ~736,000 placements/h | 2.5× Throughput |
Based on real-world production data from electronics manufacturers using the YSM10. Actual results may vary by application.
ROI Calculator — See Your Payback Period
Based on the quotation we prepare for your YSM10. Enter your current production parameters to calculate how quickly the YSM10 pays for itself.
Product Gallery — See the YSM10 in Detail

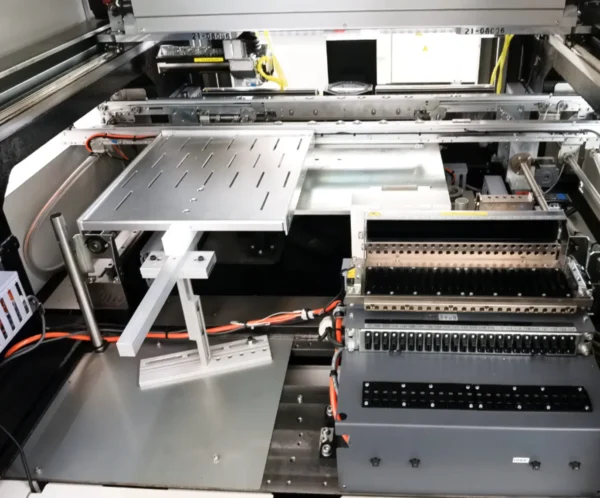

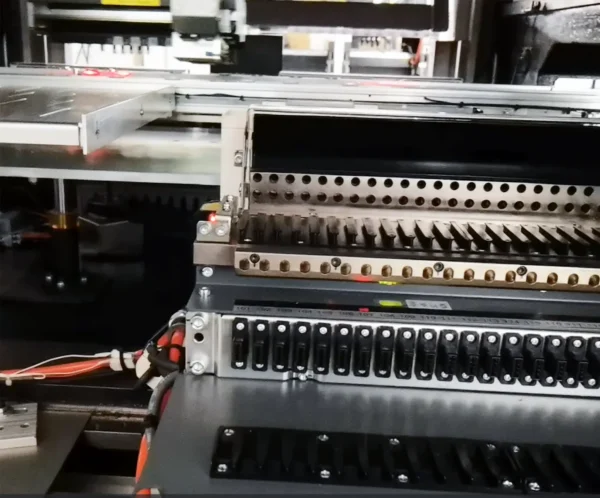

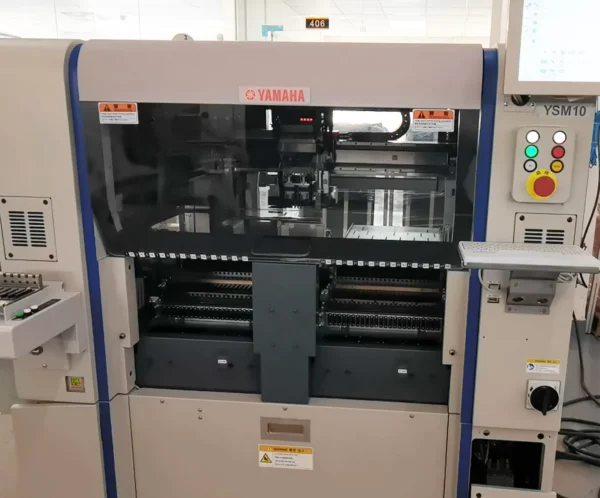

The YAMAHA YSM10: multifunctional machine, internal structure, feeder platform and machine overview.
Product Videos — See the YSM10 in Action
Watch the YAMAHA YSM10 performing real-world placement tasks. All videos are hosted on YouTube for fast, reliable streaming worldwide.
Factory Yamaha Pick and Place Machine — YSM10 in Production
YSM10 YAMAHA — Pick and Place Machine Overview
YSM10 Pick and Place Machine — Platform Design
CUSTOMER SUCCESS STORIES
Trusted by SMT Factories Worldwide
Real deployments of Yamaha YSM10-class high-speed placement across four continents — from turnkey SMT lines to high-speed LED display production. Every project shipped, installed and supported by the JHIMS team.
SMT LINETurnkey SMT Line with YSM10 Placement
Full DDP turnkey delivery — YSM10, L5 solder paste printer and F8 reflow oven, engineered, installed and commissioned as one automated line.
100%Turnkey Delivery
3+Line Stations
DDPFull Logistics
HIGH-SPEED PLACEMENT95K CPH SMT Lines in Changsha
Yamaha high-speed placement lines (same YSM platform as the YSM10) running 95,000 CPH in a Changsha PCB assembly plant.
95KCPH Throughput
24/7Production
0Major Downtime
SMT EFFICIENCYShenzhen SMT Efficiency Upgrade
A Shenzhen EMS provider upgraded to Yamaha high-speed placement and cut labor cost per board by over 40%.
-40%Labor Cost
+25%Throughput
1Line Rebuilt
LED DISPLAYYSM40R LED Display Production Line
Shenzhen LED display maker scaled output with Yamaha high-speed placement — 145K CPH throughput and a shorter, denser line.
145KCPH Throughput
+123%Speed Gain
-33%Line Length
Frequently Asked Questions
🔧 Technical Questions
The YAMAHA YSM10 achieves 46,000 CPH with the HM head (10 nozzles) under optimum conditions as defined by YAMAHA Motor. Under IPC9850 standard conditions, it achieves 30,000 CPH. With the HM5 economy head (5 nozzles), it achieves 31,000 CPH (optimal) / 20,000 CPH (IPC9850).
The YSM10 handles components from ultra-micro 0201 / 03015 Metric (0.3mm×0.15mm) chips up to large parts measuring W55×L100mm and 15mm in height. For parts exceeding 12mm in size or 6.5mm in height, the optional Multi Camera is required. Parts wider than 45mm use segmented recognition.
No. The YSM10’s 1-head solution uses the same HM multi-purpose head for the entire component range from 0201 to 55×100mm. This eliminates head replacement downtime entirely — one of the key advantages over conventional multi-head machines that require 15-30 minute head changes between component families.
The YSM10 achieves mounting accuracy of ±0.035mm (±0.025mm) with Cpk ≥ 1.0 (3σ) under optimum conditions as defined by YAMAHA Motor, when standard evaluation materials are used. This accuracy is suitable for fine-pitch components including 0.4mm pitch BGAs and QFPs.
The YSM10 accommodates a maximum of 96 types on its fixed plate (conversion for 8mm tape feeder) plus 15 tray types when equipped with the sATS15 automatic tray supply unit (JEDEC standard). This is approximately 2× the feeder capacity of conventional machines in its class.
The YSM10 supports PCB sizes from L50×W50mm (minimum) to L510×W460mm (maximum). An optional extension is available for PCBs up to L610mm in length. The conveyor supports 4 software-selectable directions: L→R, R→L, L→L, and R→R.
e-Vision is YAMAHA’s smart recognition optimizer that automatically generates component recognition data from an image. The process takes approximately 1 minute: load the component image, edit the contour, and the system auto-generates recognition parameters and runs a verification test. This replaces hours of manual programming for complex-shaped components like connectors and BGAs.
The Side View function detects component presence, missing parts, and pickup status during the transport cycle with zero time loss — no additional inspection cycle is required. If an error is detected (e.g., missing component, mispick), the system automatically corrects without stopping production.
The YSM10 touch panel interface supports 5 languages with one-key switching: Japanese, English, Chinese, Korean, and German. The intuitive Windows-based interface includes operation logging and diagnostic capabilities for global manufacturing teams.
Power: 3-Phase AC 200/208/220/240/380/400/416V ±10%, 50/60Hz. Compressed air: 0.45 MPa or more, in a clean, dry state. We recommend an air dryer and filter at the inlet for optimal performance and component longevity.
The HM (High-speed Multi) head is the standard configuration with 10 nozzles, delivering 46,000 CPH for maximum throughput. The HM5 is an economy version with 5 nozzles, delivering 31,000 CPH, while retaining all HM head functions. The HM5 is ideal for operations with moderate throughput requirements and tighter budgets.
The YSM10 integrates the capabilities of three YS series models into one platform: the YS12 (flexibility and mobility), YS12P (simplified specifications for cost-sensitive applications), and YS12F (superior component handling compatibility). This single-platform approach delivers a super-entry model with high parts compatibility and versatility.
JHIMS provides a 12-month standard warranty covering manufacturing defects for YAMAHA YSM10 machines distributed through our authorized channel. Extended warranty packages of 24 or 36 months are available. Wear items (nozzles, filters, belts) are covered under standard usage terms during the warranty period.
Yes. JHIMS provides on-site installation, commissioning, and operator training by JHIMS certified engineers — on-site service is available at a charge. Remote video training, documentation support and professional technical guidance are provided free of charge.
🛡️ Warranty & After-Sales
Technical support is available via email ([email protected]), phone (86-755) 86700443, WhatsApp, Telegram (@jinghe_tech), or Microsoft Teams. JHIMS provides remote diagnostics and our engineering team typically replies within 12 working hours (Mon–Sat, 09:00–23:00 China Standard Time, UTC+8). YAMAHA’s global IM office network (Japan, China, Germany, USA, Thailand, Vietnam) also provides additional support channels.
We recommend keeping: a set of HM nozzles (standard sizes), air and vacuum filters, feeder maintenance kits, conveyor belts, and calibration tools. JHIMS offers a recommended spare parts kit at a discounted price with every machine purchase.
Yes. JHIMS offers annual preventive maintenance (PM) contracts including quarterly remote health checks, annual on-site service by a YAMAHA-certified engineer, calibration verification, software updates, and priority technical support. Contact our sales team for regional pricing.
JHIMS is ISO 9001:2015 certified. The YAMAHA YSM10 carries CE marking (European Machinery, EMC, and LVD Directives compliance). All documentation can be provided upon request for your compliance and audit records.
Yes. JHIMS (Shenzhen Jinghe Technology Co., Ltd.) is an authorized YAMAHA Motor IM global distributor. We provide genuine YAMAHA equipment with full manufacturer warranty, certified installation, and authorized spare parts supply. YAMAHA’s global IM offices in Japan, China (Suzhou & Shenzhen), Germany, USA, Thailand, and Vietnam support the YSM10 globally.
With proper preventive maintenance and use of genuine YAMAHA parts, the YSM10 is designed for 8-10+ years of industrial service. YAMAHA’s premium engineering and the use of high-quality components ensure exceptional long-term reliability and consistent placement accuracy throughout the machine’s operational life.
Standard payment terms: 70% T/T deposit with the order, 30% T/T before shipment. Existing customers may use L/C (Letter of Credit) at sight. Volume discounts are available for multi-unit orders. Contact our sales team to discuss your preferred payment method.
Each YSM10 is packed in a fumigated wooden crate with vacuum-sealed moisture barrier, shock indicators, and tilt indicators. The machine is secured with custom-fitted supports. Shipping crate dimensions and weight are provided with each quotation based on your specific configuration.
🚚 Shipping & Payment
We ship via sea freight (FCL or LCL), air freight, or express courier for spare parts and accessories. Sea freight from Shenzhen typically takes 15-30 days to Europe, 20-35 days to the Americas, and 7-15 days to Southeast Asia. We can ship on FOB, CIF, or DDP terms based on your requirements.
Standard lead time is 4-6 weeks from order confirmation to shipment, depending on YAMAHA production scheduling and your specific configuration requirements. Rush orders may be accommodated — please inquire about current availability.
Absolutely! We encourage factory visits. You can visit the JHIMS facility in Shenzhen for demonstrations and discussions, and we can arrange visits to YAMAHA Motor IM facilities in Japan, China, or other global locations. Contact us to schedule — we’ll assist with travel arrangements and local accommodations.
The MOQ for the YAMAHA YSM10 is 1 unit. We welcome both single-unit trial orders and multi-unit fleet purchases. Volume discounts are available for orders of 3+ units. Contact our sales team for multi-unit pricing and fleet deployment planning assistance.
JHIMS works with several international equipment financing partners who offer leasing and installment payment plans for qualified buyers. Financing terms typically range from 12 to 48 months. Contact our sales team to discuss financing options available in your region and we’ll connect you with an appropriate financing partner.
The YSM10 is the entry-level high-speed mounter (46K CPH, 1-beam 1-head), ideal for high-mix production. The YSM20R is a premium high-speed modular (95K CPH, 2-beam) for high-volume lines. The YSM40R is the ultra-high-speed flagship (200K CPH, 4-beam) for maximum throughput. The YSM10 offers the best cost-performance ratio for facilities transitioning from legacy to modern SMT placement.
Yes. JHIMS works with YAMAHA to configure each YSM10 to your specific production requirements. Custom options include: choice of HM or HM5 head, multi-camera addition, sATS15 tray unit, extended PCB conveyor (up to L610mm), feeder mix (SS and ZS types in your required tape widths), custom nozzle sets, and software options. Our application engineers will recommend the optimal configuration based on your component list and production targets.
JHIMS provides comprehensive training packages: (1) Standard: 3-day on-site operator and technician training during installation; (2) Advanced: 5-day program covering programming, e-Vision optimization, preventive maintenance, and troubleshooting; (3) Remote: video-based training with live Q&A sessions for refresher training or new hires. All training materials are provided in English and Chinese, with additional language support available upon request.
LEARNING CENTER
Knowledge Center — Expert Resources
Real case studies and guides about Yamaha YSM10-class high-speed placement — from line integration to throughput optimization, written by JHIMS engineers.
Reference videos: Factory Yamaha pick and place machine for sale #yamaha #ysm20r #pick and place machine #smt #ysm10; watch the process on YouTube; YSM10 pick and place machine｜ on which platform was the Yamaha YSM10 developed and designed? #YSM10.
| Weight | 1270 kg |
|---|---|
| Dimensions | 1254 × 1440 × 1445 mm |
| Component Range (Min) | 0201 / 03015 metric |
| PCB Size (Min) | L50×W50mm |
| PCB Size (Max) | L510×W460mm |
| PCB Size (Extension) | Optional to L610mm |
| Placement Speed (HM Head) | 46,000 CPH (optimal) |
| Placement Accuracy | ±0.035mm (±0.025mm) Cpk≥1.0 |
| Feeder Capacity | Max 96 types (8mm tape equiv.) |
| Scan Camera | Up to 12×12mm components |
| Multi-Camera (opt) | Up to 55×100mm, H≤15mm |

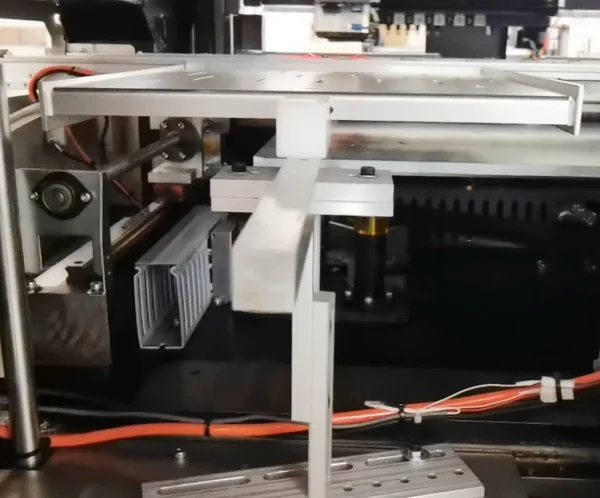

| Tray Capacity | 15 trays (sATS15, JEDEC) |
| Power | 3-Phase AC 200~416V ±10% 50/60Hz |
