Yamaha YSM40R Case Study: 145K CPH LED Display Production
Shenzhen LED display maker swapped four Hanwha S2 mounters for two Yamaha YSM40R: placement +123% (65,000 to 145,000 CPH), line 33% shorter, irregular LED defects eliminated.
Case Study
Yamaha YSM40R Case Study: LED Display Production in Shenzhen
Why a Shenzhen LED display maker replaced four Hanwha S2 mounters with two Yamaha YSM40R units: 65,000 to 145,000 CPH per machine, lines 33% shorter, irregular LED defects eliminated.
Direct answer: The Yamaha YSM40R is a high-speed SMT mounter that doubled LED display production output for the customer. Replacing Hanwha S2 machines, the YSM40R delivers 145,000 CPH (a 123% speed increase), features a compact 1m width that shortened production lines by 33%, and its rotary head eliminated irregular LED placement defects. Two YSM40R units add 19,800,000 CPH monthly capacity at lower cost than four Hanwha S2 machines.
Key Takeaways
- 1145,000 CPH Speed
- 2+123% Speed Gain
- 3-33% Line Length
- 42× Hanwha S2 Output
Customer & Industry
At a glance: who the customer is, where the machine was delivered, and what drove the investment.
CustomerLED display manufacturer in Shenzhen (name confidential)
IndustryLED display manufacturing
Project LocationShenzhen, China
Project TypeYamaha YSM40R high-speed mounter (2 units)
ApplicationIndoor & outdoor LED module placement
Driving RequirementDouble output and eliminate irregular LED placement defects
LED display assembly is a placement problem with an optical test attached: one rotated, offset or damaged LED becomes a visible bright or dark spot on the finished panel. This Shenzhen maker builds both indoor modules (fine pixel pitch, high module counts) and outdoor modules (larger packages, wider pitch), so one platform has to hold accuracy across both. The stated goal: double output and stop irregular placement defects reaching finished modules.
Customer Background: Scaling LED Display Output
The customer builds LED displays in Shenzhen on four Hanwha S2 mounters rated 65,000 CPH each and 1.5 m wide. The published account reports low output against a growing order book, a footprint that limited line layout, LED placement defects that showed up in finished displays, and rising operating cost — all consequences of adding machines instead of raising the rate of each machine. JHIMS supplied the replacement: two Yamaha YSM40R units.
Project Challenges
- Low Speed The existing Hanwha S2 (65,000 CPH) delayed order fulfillment for growing LED display demand.
- Large Footprint The 1.5m machine width hindered production line optimization and floor-space efficiency.
- LED Placement Defects Regular LED placement caused display abnormalities, impacting product quality.
- Rising Costs Maintaining four Hanwha S2 machines raised operating costs as output demand grew.
The four reported challenges each map to a measurable machine property: low speed (65,000 CPH, below the pace the order book needed) is head architecture; the 1.5 m machine width is layout; the LED defects are a head and vision question rather than a feeder question; rising cost is the accumulated price of running four machines. Framed this way, every symptom becomes testable in a pilot placement trial.
The reported challenges, what each one actually measures, and how the delivered configuration answers it.
| Reported challenge | What it actually measures | Answer in the delivered configuration |
|---|---|---|
| Existing machines rated 65,000 CPH delayed orders | Head architecture and the placements available per pass | Rotary head platform at 145,000 CPH in this deployment |
| 1.5 m machine width hindered line layout | Line length and floor space consumed per placement capacity | 1 m wide machines, shortening the production line by 33 percent |
| Regular LED placement caused display abnormalities | How the head presents an irregular LED to the board | Rotary head placement eliminated the reported LED defects |
| Four machines raised operating costs | Services, spares and maintenance load per unit of output | Two machines replaced four, with lower total configuration cost |
| Growing order volume required more capacity | Capacity measured across a production calendar | Two units added 19,800,000 CPH of monthly capacity |
| Indoor and outdoor modules on the same floor | Component range and program flexibility of one platform | 0201 to 45 x 100 mm range with P-Tool program loading |
| Higher pixel densities expected to continue | Placement accuracy headroom above today’s pitch | Plus or minus 0.035 mm, Cpk at least 1.0, verified in production |
Customer Requirements
Before selecting the YSM40R, the customer verified four non-negotiable requirements:
- Higher Throughput Doubling placement speed to meet growing order volumes.
- Compact Footprint A narrower machine to optimize production line layout.
- Defect-Free LED Placement Reliable handling of irregular LED components.
- Cost Efficiency Lower total cost than the existing four-machine configuration.
All four requirements could be checked on the customer’s own products: doubling placement speed (set against the order book, not a brochure figure), a narrower machine measured as line length and floor space, defect-free handling of the irregular LED packages the customer actually buys, and a total cost below the four-machine configuration — including floor space, services and maintenance load.
JHIMS Solution
- High-Speed Assembly 145,000 CPH placement — doubling the Hanwha S2’s output per machine.
- Compact 1m Width Reduced production line length by 33%, freeing valuable factory floor space.
- Rotary Head Rotary head placement enabled irregular LED mounting, eliminating display abnormalities.
- Two-Unit Configuration Two YSM40R units added 19,800,000 CPH monthly capacity.
- Cost Advantage Lower total cost compared to four Hanwha S2 machines.
- On-Site Training JHIMS engineers provided installation, commissioning and operator training.
Why JHIMS: reliable, high-quality SMT equipment, expert solutions tailored to customer needs, and comprehensive support from design to after-sales.

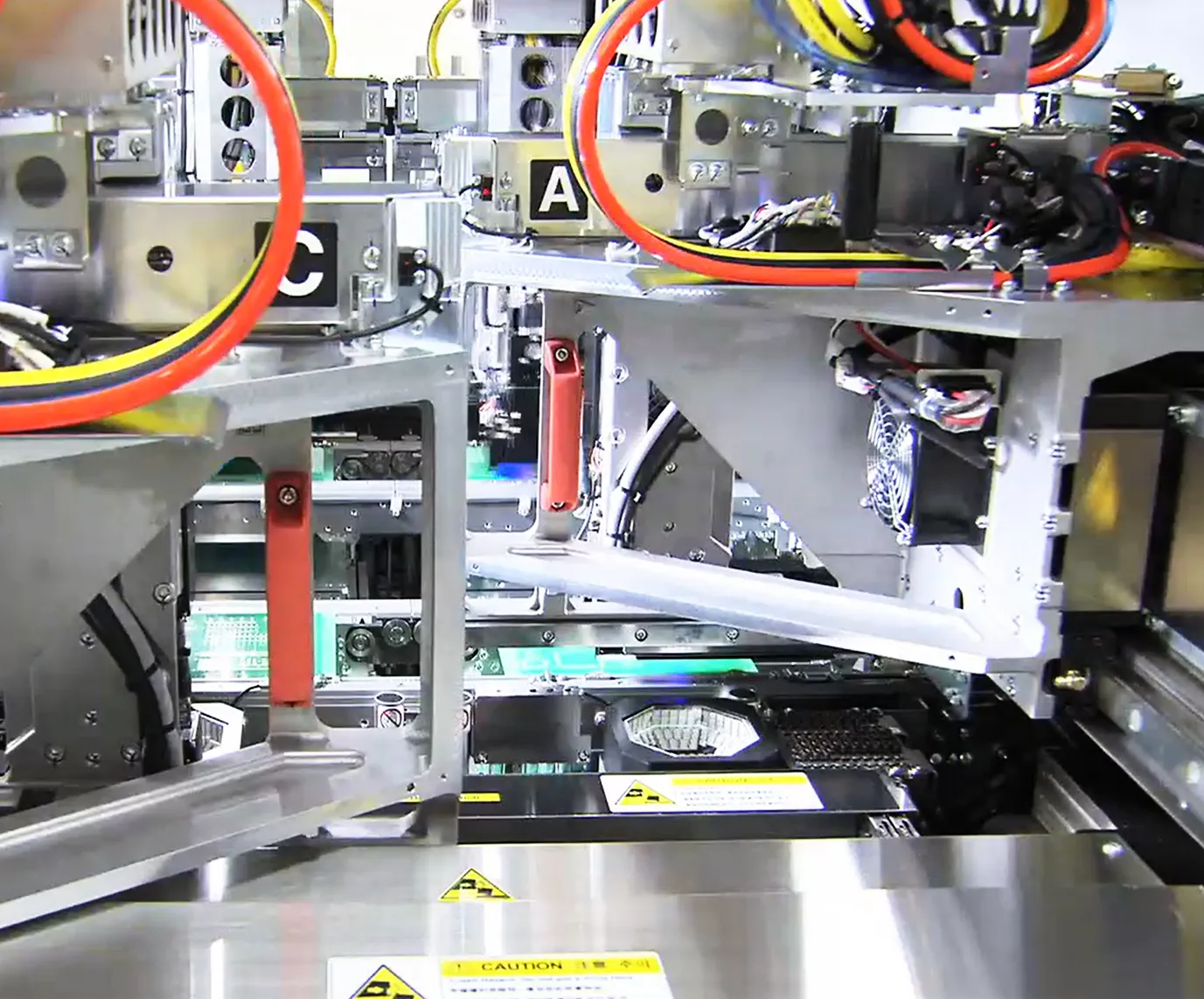

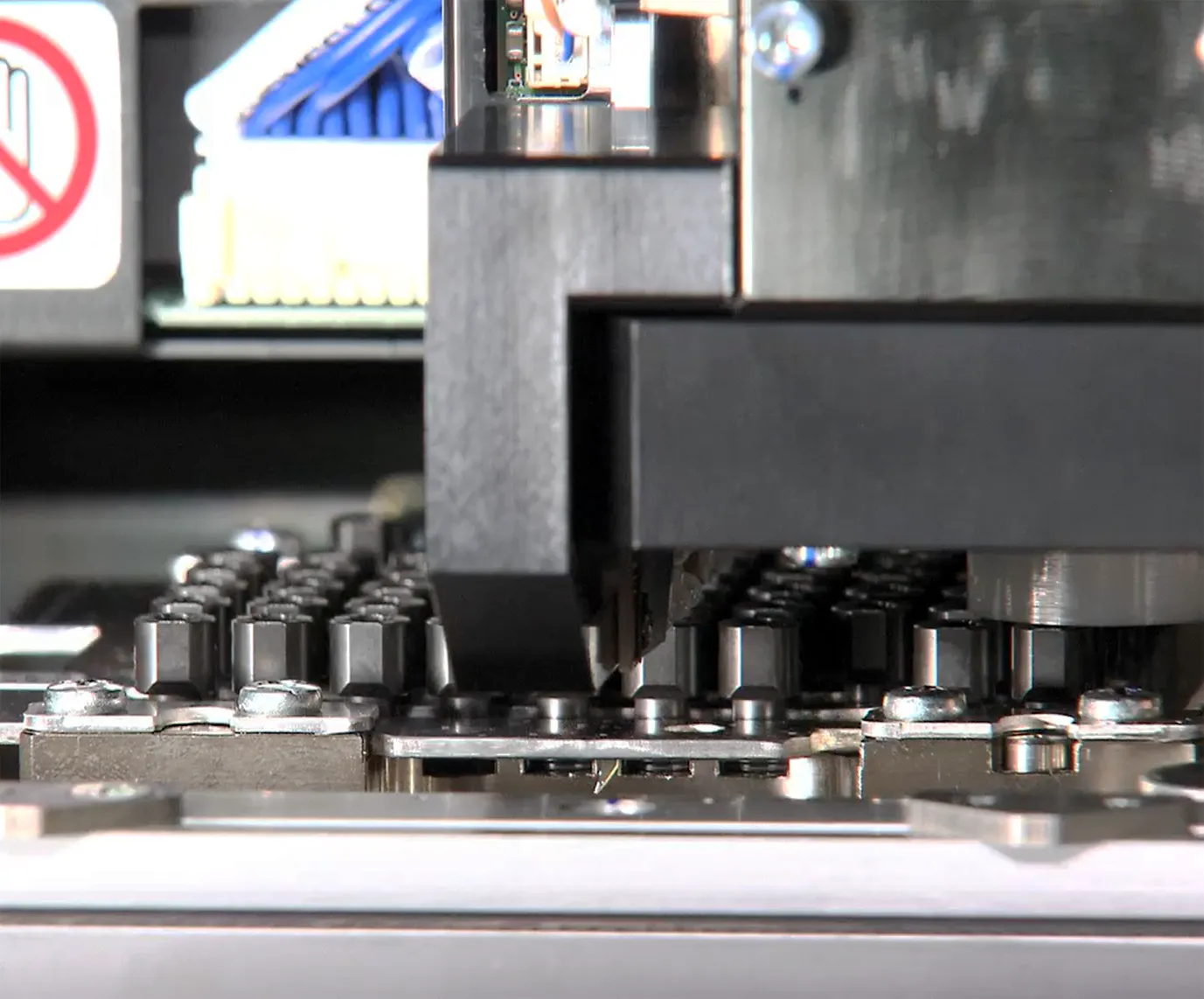

A ring of nozzles picks, rotates and places while the head keeps indexing, so each pass covers more placements — 145,000 CPH here, up to 200,000 CPH on the four-beam YSM40R-4. Each nozzle corrects its own rotation, so an LED with an irregular body arrives at the correct angle instead of being dragged into position — the mechanism behind the eliminated display defects. Two 1 m machines replaced four 1.5 m machines: line 33% shorter, output per machine +123%.
Equipment Configuration: YSM40R Mounter
| Item | Model | Qty |
|---|---|---|
| Ultra-high-speed modular mounter | Yamaha YSM40R | 2 |
| Replaced machines | Hanwha S2 | 4 (retired) |
Two YSM40R units replaced four Hanwha S2 machines, delivering more capacity in less floor space.
YSM40R Key Specifications
| Feature | Details |
|---|---|
| Model | Yamaha YSM40R (deployed config: 145,000 CPH) |
| Mounting Speed | Up to 200,000 CPH (YSM40R-4, 4-beam RS head) |
| Placement Accuracy | ±0.035mm (±0.025mm high-accuracy) Cpk ≥ 1.0 |
| Component Range | 0201 to 45 × 100 mm, max height 25.5mm |
| Machine Width | 1m (vs 1.5m for Hanwha S2) |
| PCB Size | L50×W50mm to L700×W460mm (dual lane L700×W280) |
| Feeder Capacity | Up to 80 (RS) / 88 (MU) types (8mm equivalent) |
| Power Supply | 3-phase AC 200-416V ±10%, 50/60Hz (13.9 kVA) |
| Air Pressure | 0.45MPa or higher |
| Warranty | 12 months |
Three published figures decide how far the platform stretches as the mix changes: component range 0201 to 45 x 100 mm with a maximum height of 25.5 mm (indoor and outdoor families on one machine, no re-tooling); placement accuracy of plus or minus 0.035 mm (or 0.025 mm in the high-accuracy grade) with a Cpk of at least 1.0; and up to 80 RS or 88 MU feeder positions (8 mm equivalent) for high-mix runs. Two units together added 19,800,000 CPH of monthly capacity.
The published before-and-after figures for this project, as reported by the customer and confirmed in production.
| Metric | Previous configuration | Delivered configuration |
|---|---|---|
| Machines on the line | 4 x Hanwha S2 | 2 x Yamaha YSM40R |
| Placement speed per machine | 65,000 CPH | 145,000 CPH, a 123 percent increase |
| Machine width | 1.5 m | 1 m, shortening line length by 33 percent |
| Head type | Linear | Rotary |
| LED placement defects | Caused display abnormalities | Eliminated in this deployment |
| Monthly capacity added | Baseline four-machine output | 19,800,000 CPH from two units |
| Component range | Limited to existing LED programs | 0201 to 45 x 100 mm, maximum height 25.5 mm |
| Placement accuracy | Not sufficient for the reported defects | Plus or minus 0.035 mm, Cpk at least 1.0 |
| Total cost of configuration | Four machines, services and floor space | Lower total cost than the four-machine configuration |
Implementation: Installation & Training
JHIMS delivered and installed the two YSM40R units, integrated them with the existing LED display production line, and provided on-site operator training. The machines were programmed with the customer’s indoor and outdoor LED module programs using P-Tool, and production verification confirmed the 145,000 CPH placement rate.
Commissioning concentrated on the two things that decide whether a rated speed is reachable on a real schedule: the programs and the people. Both machines were programmed with the customer’s indoor and outdoor module programs in P-Tool — real board geometries, not a demonstration board — and production verification confirmed 145,000 CPH on them. JHIMS engineers installed, commissioned and trained the shift team before handover.
Video: YSM40R in Action
Watch the Yamaha YSM40R in LED display production — operational video and maintenance insights. Watch the full YSM40R video on YouTube.
On video, watch stability rather than the peak number. The head should keep a continuous rhythm through pickup, rotation and placement — hesitation usually means a feeder pickup is not repeatable. The nozzle should place a full group of components per pass instead of shuttling to the feeder bank, and the tape should advance and splice cleanly. The machine’s own screen is the real evidence: rated rate reached with a clean reject log.
Results & Operational Benefits
The Yamaha YSM40R pick and place machine delivered transformative results for the customer: a 123% speed increase, doubled output per machine, and significant cost savings compared to the previous four-machine configuration.
| Metric | Before (Hanwha S2) | After (YSM40R) | Improvement |
|---|---|---|---|
| Speed (CPH) | 65,000 | 145,000 | +123% |
| Machine Width | 1.5m | 1m | -33% line length |
| Head Type | Linear | Rotary | No LED defects |
The change is in the shape of the line, not only the speed: 65,000 to 145,000 CPH per machine (+123%), two units replacing four, and 19,800,000 CPH of added monthly capacity. Machine width fell from 1.5 m to 1 m, so lines are 33% shorter and the freed floor space absorbs expansion without a new building. Linear to rotary head eliminated the defects behind the display abnormalities — and two machines instead of four brought total cost down.
The YSM40R transformed our production, meeting deadlines with ease. — customer production representative
- Speed 123% speed increase — from 65,000 to 145,000 CPH per machine.
- Capacity Monthly capacity boost of 19,800,000 CPH with two units.
- Cost Lower total cost compared to four Hanwha S2 machines.
- Quality Rotary head eliminated irregular LED placement defects.
- Floor Space 33% shorter production lines freed space for expansion.
Beyond throughput, the YSM40R’s compact footprint and reliable operation positioned the customer to scale LED display output while maintaining the precision that indoor and outdoor LED modules demand.
Related Products
FeaturedYamaha YSM40R MounterUltra-high-speed modular mounter — up to 200,000 CPH, 0201 to 45×100mm, rotary head for irregular LED placement.View product →
RelatedYamaha YSM20R MounterHigh-speed modular mounter – 95,000 CPH, 140 feeders, 0201 to 55×100mm components.View product →
CompanionYamaha YSM10 MounterHigh-speed compact modular mounter – 46,000 CPH, 96 feeders, e-Vision + Side View.View product →
RelatedJHIMS S630 3D SPI3D solder paste inspection – verifies print quality before reflow.View product →
RelatedDPS-2 Lens Vibratory FeederDual-frequency vibratory lens feeder — 0.5–1s per lens, 3–25mm lenses, 2 disc tracks expandable to 10.View product →
RelatedJHIMS R10 Reflow OvenLead-free hot-air reflow soldering for SMT lines – 20 heating zones, up to 300°C peak.View product →Related Resources
Case StudyMalaysia Turnkey Line CaseFully automated SMT production line delivered turnkey to a German enterprise in Malaysia.Read article →
Case StudyChangsha PCBA CaseYSM20R 4-line PCB assembly deployment in Changsha.Read article →
Case StudyShenzhen YSM20R CaseRefurbished YSM20R boosts a Shenzhen contract manufacturer’s efficiency.Read article →
GuideSourcing SMT Equipment from ChinaA risk-managed procurement guide – sourcing, QC and delivery for SMT equipment from China.Read article →
GuideL5 Solder Paste Printer GuideStep-by-step video guide for the JHIMS L5 automatic solder paste printer.Read article →
SupportTechnical SupportGlobal after-sales support, remote training, spare parts and service requests.Get support →Frequently Asked Questions
What is the actual speed of the Yamaha YSM40R?▼
The YSM40R achieves 145,000 CPH in this deployment — a 123% increase over the Hanwha S2’s 65,000 CPH, as verified in the Shenzhen LED display production case. The YSM40R-4 configuration reaches up to 200,000 CPH with four RS heads.
How does the YSM40R improve LED display quality?▼
Its rotary head enables irregular LED placement without display abnormalities, eliminating the defects caused by linear-head machines on LED modules.
Is the YSM40R suitable for indoor and outdoor LED modules?▼
Yes. The YSM40R delivers high-speed, high-precision placement for both indoor and outdoor LED module boards.
How much floor space does the YSM40R save?▼
At 1m width versus 1.5m for the Hanwha S2, the YSM40R shortens production line length by 33%, freeing floor space for expansion.
What is the capacity gain from two YSM40R units?▼
Two YSM40R units add 19,800,000 CPH of monthly placement capacity — at lower cost than four Hanwha S2 machines.
What is the maximum placement speed of the YSM40R?▼
The YSM40R-4 (4-beam) reaches 200,000 CPH with four RS heads, and the YSM40R-2 (2-beam) delivers 58,000 CPH with MU heads. Real-world CPH depends on your board design and component mix.
What are the smallest and largest components the YSM40R can handle?▼
The RS head places 0201 (0.6×0.3mm) components up to 6.5×6.5mm at 2.0mm height or less. The MU head covers 03015 to 45×100mm components up to 25.5mm height.
What placement accuracy does the YSM40R achieve?▼
The YSM40R-4 achieves ±0.035mm (±0.025mm high-accuracy) at Cpk≥1.0 (3σ); the YSM40R-2 achieves ±0.040mm (±0.030mm high-accuracy).
How many component types can the YSM40R hold?▼
Up to 80 types with RS heads and 88 types with MU heads (8mm tape equivalent) on the feeder carriage or fixed plate configuration.
What PCB sizes can the YSM40R process?▼
Single lane: L50×W50 to L700×W460mm. Dual-lane (YSM40R-4): two parallel lanes each up to L700×W280mm. 2-stage operation supports two PCBs in the machine.
What power supply does the YSM40R require?▼
Three-phase AC 200/208/220/240/380/400/416V ±10%, 50/60Hz, with a power capacity of 13.9 kVA and average consumption of approximately 1.9kW.
What air supply does the YSM40R need?▼
Clean, dry compressed air at 0.45MPa or higher. An 8mm or larger supply line is recommended, and an air dryer and filter unit is advised.
What vision systems does the YSM40R use?▼
Four systems work together: a fiducial camera for board mark detection, a multi-camera (50mm field of view) for component recognition, plus scan and side-view cameras.
What is the cATS automatic tray supply carriage?▼
The cATS tray carriage (compatible with the YSM40R-2) stores up to 30 tray pallet layers and supplies tray components without stopping production.
What feeders does the YSM40R use?▼
The YSM40R runs Yamaha ZS and SS electric feeders. The ultra-high-speed ZS feeder feeds about 40% faster than the standard SS feeder.
Can the YSM40R integrate with other vendors’ machines?▼
Yes. Standard SMEMA/GATE signaling is built in for conveyor handshakes, and the SEMI SMT-ELS communication standard (optional) enables integration with other vendors’ equipment.
What is the One Platform, Wide Flexibility concept?▼
It is Yamaha’s approach of covering the full component range with interchangeable heads on one platform, so no head replacement or machine change is needed when the component mix changes.
Does the YSM40R support 2-PCB simultaneous production?▼
Yes. The dual-lane YSM40R-4 conveys two parallel lanes up to L700×W280mm each, and 2-stage operation conveys two PCBs of up to L700×W460mm in sequence.
What maintenance does the YSM40R require?▼
Daily: visual checks and air pressure confirmation. Weekly: nozzle inspection and camera-glass cleaning. Monthly: axis lubrication and periodic calibration.
YSM40R vs YSM20R: what is new?▼
The YSM40R is Yamaha’s ultra-high-speed modular mounter built on the Z:TA-R platform with an all-new connected design, higher throughput and advanced compensation technology.
What software comes with the YSM40R?▼
The YSM40R includes the standard P-Tool basic license for programming and line management, running on the machine’s latest operating system.
Can the YSM40R handle FPC and flex boards?▼
Yes, when configured with appropriate tooling and a carrier or support plate. The automatic push-up pin system positions pins based on board geometry.
What is the Stride Board Buffering function?▼
When boards are too large to wait inside the machine, the Stride Board Buffering function lets boards stand by between the machine’s two stages, improving line flow.
What accuracy technology does the YSM40R use?▼
MACS (Multiple Accuracy Compensation System) is the YSM40R’s in-production compensation technology. It automatically recalibrates head, nozzle, and camera positions in real time.
What nozzle types does the YSM40R use?▼
The RS head uses the 72XX nozzle series (7201A to 7208A), the MU head uses the 50X standard or 51X narrow-pitch series.
What is the standard transport height of the YSM40R?▼
The standard conveyor transport height is 900mm ±10mm, matching typical SMT line heights for printers, reflow ovens and other line equipment.
What warranty does JHIMS provide for the YSM40R?▼
All JHIMS machines come with a 12-month warranty from the date of delivery, covering manufacturing defects in materials and workmanship. Extended warranty options are available.
How do I get technical support for the YSM40R?▼
Contact us on phone (86-755) 86700443, WhatsApp, email ([email protected]) or Telegram (@jinghe_tech). An engineer replies within 12 working hours (Mon–Sat, 09:00–23:00 China Standard Time, UTC+8) (business days). Browse JHIMS machine videos on YouTube.
What payment terms does JHIMS offer?▼
T/T (Telegraphic Transfer) is the primary method. Standard payment terms: 70% T/T deposit with the order, 30% T/T before shipment. Existing customers may use L/C (Letter of Credit) at sight.
How is the YSM40R packaged and shipped?▼
The machine is packed in a reinforced plywood crate with foam cushioning and moisture-barrier wrap, then shipped via sea freight (20-35 days), air freight (5-7 days) or express courier. DDP, DAP and FOB Shenzhen terms are available.
