SMT Production Line Case Study: Turnkey Factory in Malaysia
See how a German electronics enterprise built a fully automated SMT line in Malaysia with JHIMS — 100% turnkey DDP delivery, Yamaha placement, and audit-re.
Case Study
SMT Production Line Case Study: Turnkey Factory in Malaysia
See how a German electronics enterprise built a fully automated SMT line in Malaysia with JHIMS — 100% turnkey DDP delivery, Yamaha placement, and audit-ready quality.
Direct answer: JHIMS delivered a fully automated SMT production line to a German electronics enterprise building a new factory in Malaysia — under 100% turnkey DDP (Delivered Duty Paid) terms. The line comprises a PCB loader (L350), the JHIMS L5 vision solder paste printer, a Yamaha YSM10 pick-and-place machine with a 72-feeder platform, an 8-zone intelligent reflow oven (F8), PCB conveyors and a PCB unloader (JH-X330), plus 76 new original Yamaha feeders. Delivered in early 2026, the line passed stringent European and US factory audits with traceable quality control and long-term production stability.
Key Takeaways
- 1100% Turnkey DDP
- 276 New Original Yamaha Feeders
- 372 Feeder Platform
- 42026 Factory Launch
Customer & Industry
At a glance: who the customer is, where the factory was built, and what drove the investment.
CustomerGerman electronics enterprise (name confidential)
IndustryElectronics manufacturing (former EMS buyer)
Project LocationBrand-new factory in Malaysia
Project Type100% turnkey SMT production line (DDP)
Purchase Date2026-01-29
Driving RequirementEuropean & US end-customer factory audits
Customer Background: From EMS Outsourcing to In-House Capital Assets
In early 2026, a high-growth German electronics enterprise made a capital allocation decision to transition away from traditional Third-Party Electronic Manufacturing Services (EMS) and build a brand-new factory in Malaysia. The catalyst for this move was the implementation of strict factory audits by their primary end-customers.
For any purchaser, if a company lacks its own production lines and technical team, there are significant risks. This is precisely why the German client decided to invest in building their own high-standard, fully automated SMT production line with JHIMS Jinghe Technology — converting what was once outsourced manufacturing cost into a traceable, controllable in-house capital asset.
Project Challenges
- Factory Audits Stringent European/US factory audits that third-party EMS couldn’t guarantee.
- Cross-Border Delivery Equipment manufacturing to factory-floor delivery across borders with full duty handling.
- Line Integration Integrating printer, placement, reflow, and board handling into one seamless automated line.
Customer Requirements
During factory audits, the client’s end-customers verified five non-negotiable requirements before approving a new supplier:
- Own Production Line The factory must physically exist and operate its own SMT production line.
- Quality Management System A comprehensive, documented quality management system across all processes.
- Real-Time Quality Control Clear procedures for how quality is controlled during live production.
- Batch Consistency Reliable product consistency across high-volume production batches.
- Supply Stability Capacity for long-term, stable supply without insolvency risk.
JHIMS Solution

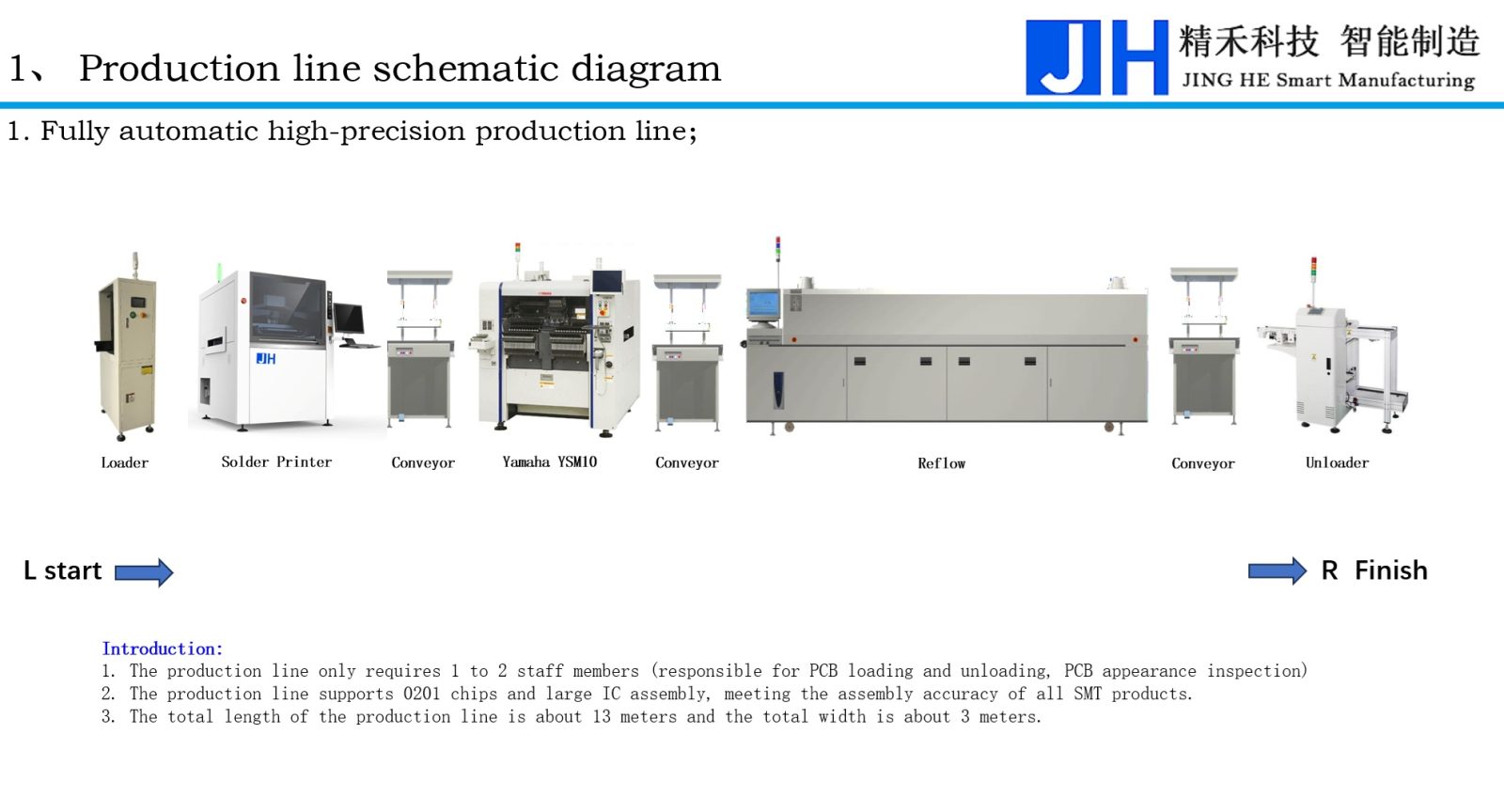

- Fully Automated Line High-precision in-house SMT production line integrated with Yamaha placement technology.
- 100% Turnkey DDP Equipment manufacturing, testing, packaging, export logistics, customs clearance, and final delivery to the Malaysia factory floor.
- Audit-Ready Quality Traceable quality control and verified placement accuracy for factory audits.
Equipment Configuration: Purchase Details & Equipment List
| Item | Model | Qty |
|---|---|---|
| Yamaha YSM10 pick and place machine (2021) | HM10 / KMK-0XG | 1 |
| Rear 24-station platform with cutter | — | 1 |
| New original Yamaha feeder SS 8mm | KHJJ-MC100-00 | 65 |
| New original Yamaha feeder ZS 12/16mm | KHJ-MC200-00 | 10 |
| New original Yamaha feeder ZS 24mm | KHJ-MC400-00 | 1 |
| PCB conveyor | KLW-M917H-00 | 2 |
| PCB automatic loader | L350 | 1 |
| Fully automatic solder paste printer | JHIMS L5 | 1 |
| PCB automatic unloader | JH-X330 | 1 |
| 8-zone reflow oven | F8 | 1 |
Purchased 2026-01-29 — a complete, production-ready SMT line delivered as one turnkey project.
SMT Production Line System Composition & Performance
| Equipment | Process Step | Benefits |
|---|---|---|
| PCB Loader (L350) | Automated board feeding | Eliminates manual handling errors; continuous board loading. |

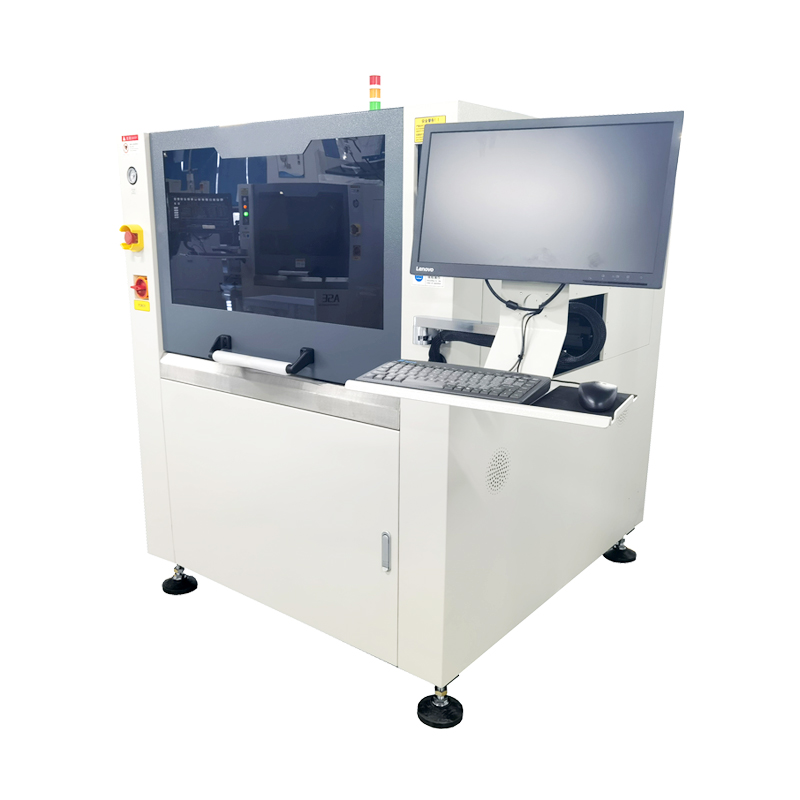

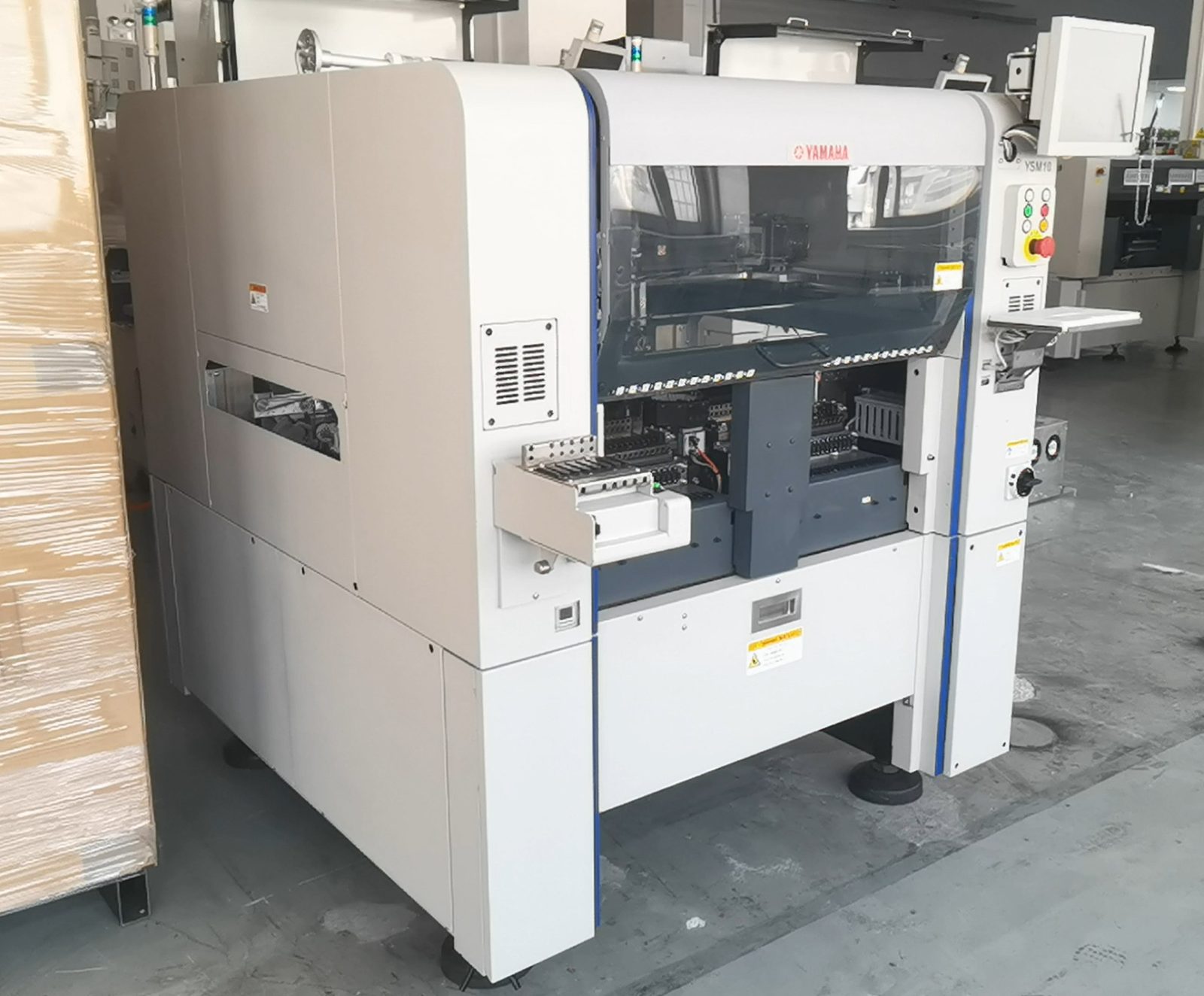

| Vision Solder Paste Printer (L5) | Fine-pitch paste application | Vision alignment prevents paste bridging; strict quality control. |
| Yamaha YSM10 Pick-and-Place | High-speed component mounting | 72-feeder platform for complex PCBs with high precision. |
| Intelligent Reflow Oven (F8) | Multi-zone thermal soldering | 8-zone temperature curve management for stable soldering. |
| PCB Conveyor & Unloader (JH-X330) | Safe transport and buffering | Automated unloading; protects components from mechanical shock. |
Zero-Risk DDP Project Delivery
- Pre-Shipment QC Strict pre-shipment quality control on every machine, including calibration and functional testing.

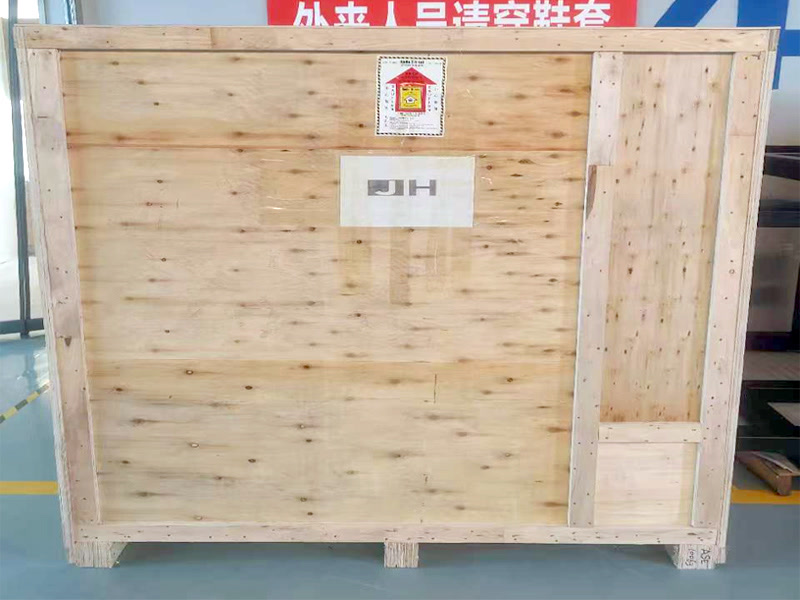

- Heavy Logistics Protection Heavy-duty industrial packaging and shipping frames protect equipment across long-distance freight.
Under DDP terms, JHIMS was responsible for the entire SMT production line process: equipment manufacturing, testing, packaging, export logistics, customs clearance, right through to final delivery to the factory floor in Malaysia — removing cross-border risk from the client’s side. The client received one accountable partner for the full journey: a single quotation, a single delivery point, and no unexpected duties or logistics surprises.
This delivery model matters especially for first-time factory builders. Instead of coordinating multiple freight forwarders, customs brokers, and equipment suppliers, the German enterprise tracked one shipment schedule, with every machine — from the L5 printer to the reflow oven — arriving together and ready for installation in sequence.
Video: Customized SMT Production Line Delivery
This video shows how JHIMS delivered a complete, fully customized SMT solution for a client in Malaysia — the same turnkey process behind this project: pre-shipment QC, heavy-duty packaging, export logistics and customs clearance, all the way to factory-floor delivery. Watch the full delivery video on YouTube.
Every machine — from the L5 printer to the reflow oven — is protected in heavy-duty packaging, loaded for long-distance freight, and delivered under one shipment schedule. One partner, one quotation, one delivery point.
Results & Operational Reliability
The Malaysia project delivered what the German enterprise needed most: a complete SMT production line that passed stringent European and US factory audits — the exact requirement that triggered the move from third-party EMS to an in-house operation.
- Audit-Ready Production The fully automated line supports traceable quality control and verified placement accuracy, giving auditors a complete, documented quality trail.
- One Accountable Partner A single quotation and a single delivery point under DDP terms — no unexpected duties, no logistics surprises, no cross-border coordination burden.
- Capital Asset Conversion Outsourced manufacturing cost converted into a traceable, controllable in-house capital asset with its own technical team.
- Long-Term Production Stability High-precision equipment and original Yamaha feeders support consistent, high-volume production for the client’s end-customers.
Every machine — from the L5 printer to the reflow oven — arrived together under one shipment schedule, ready for installation in sequence. The project demonstrates JHIMS’s turnkey capability: one partner from equipment manufacturing to factory-floor delivery, for new SMT factories anywhere in the world.
Related Products
FeaturedJHIMS L5 Solder Paste PrinterAutomatic SMT stencil printer – ±0.025mm accuracy with vision-aligned printing for the SMT line.View product →
CompanionYamaha YSM10 MounterHigh-speed compact modular mounter – 46,000 CPH, 96 feeders, e-Vision + Side View.View product →
RelatedJHIMS S630 3D SPI3D solder paste inspection – verifies print quality before reflow.View product →
RelatedJHIMS R10 Reflow OvenLead-free hot-air reflow soldering for SMT lines – 20 heating zones, up to 300°C peak.View product →

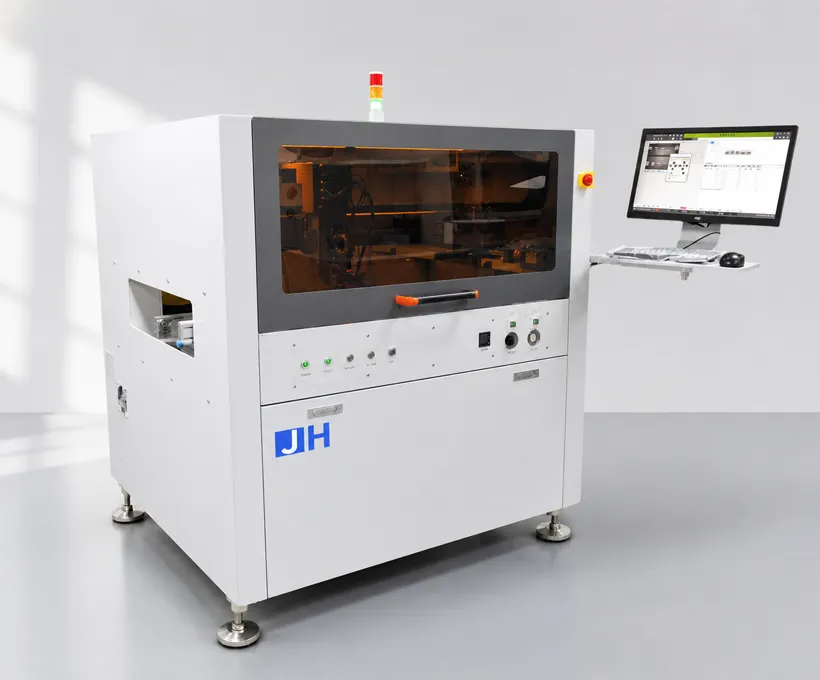

RelatedJH-D900 Dispensing MachineHigh-speed precision dispensing – 200 dots/s jet dispensing for SMT PCB assembly lines.View product →
RelatedJHIMS ZM500 Screw MachineAutomated screw tightening and removal for electronics assembly.View product →Related Resources

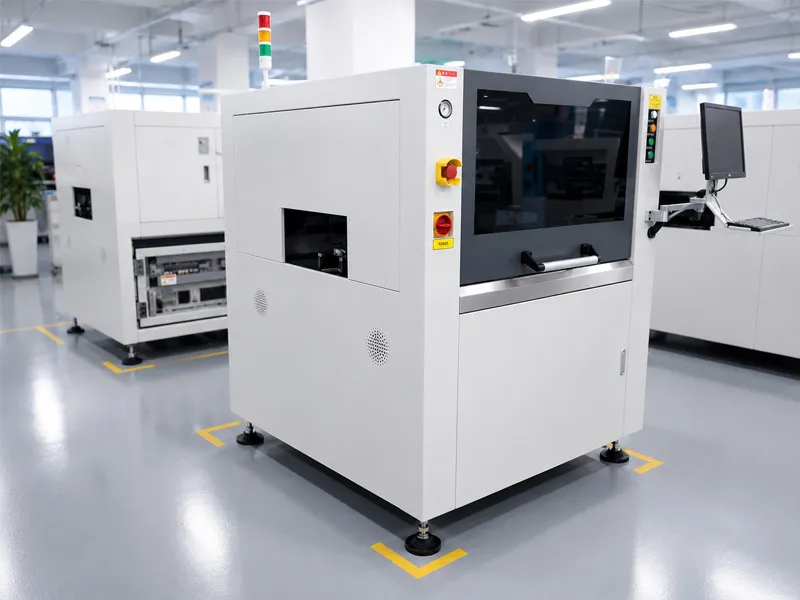

GuideL5 Solder Paste Printer GuideHow to operate and maintain the JHIMS L5 high-precision SMT stencil printer.Read article →

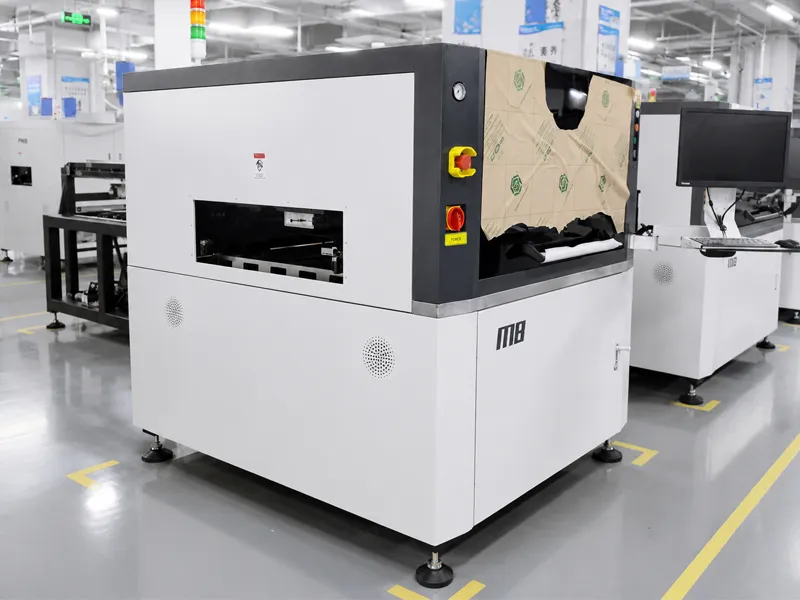

GuideM8 Solder Paste Printer GuideStep-by-step video guide for the JHIMS M8 automatic solder paste printer.Read article →
GuideSourcing SMT Equipment from ChinaA risk-managed procurement guide – sourcing, QC and delivery for SMT equipment from China.Read article →
Case StudyJHIMS L5 India Case StudyJHIMS L5 automatic solder paste printer helping an Indian OEM manufacturer scale production.Read article →

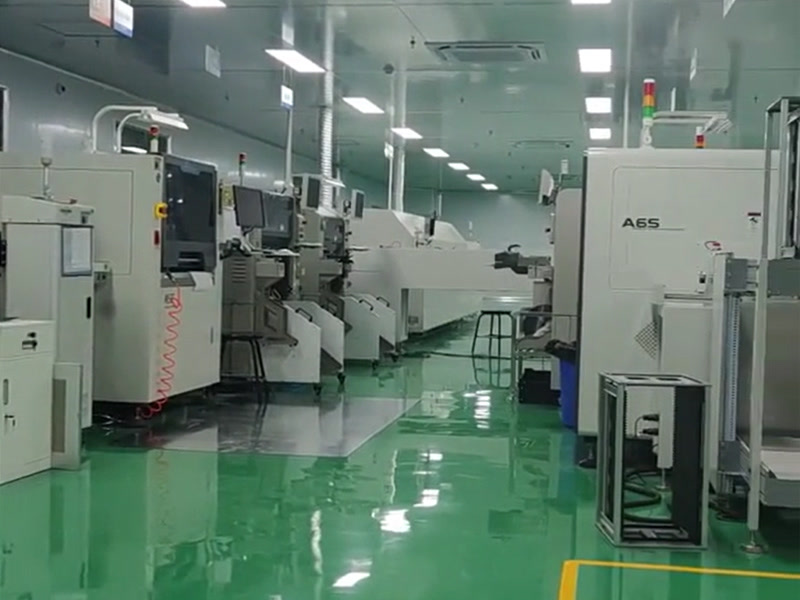

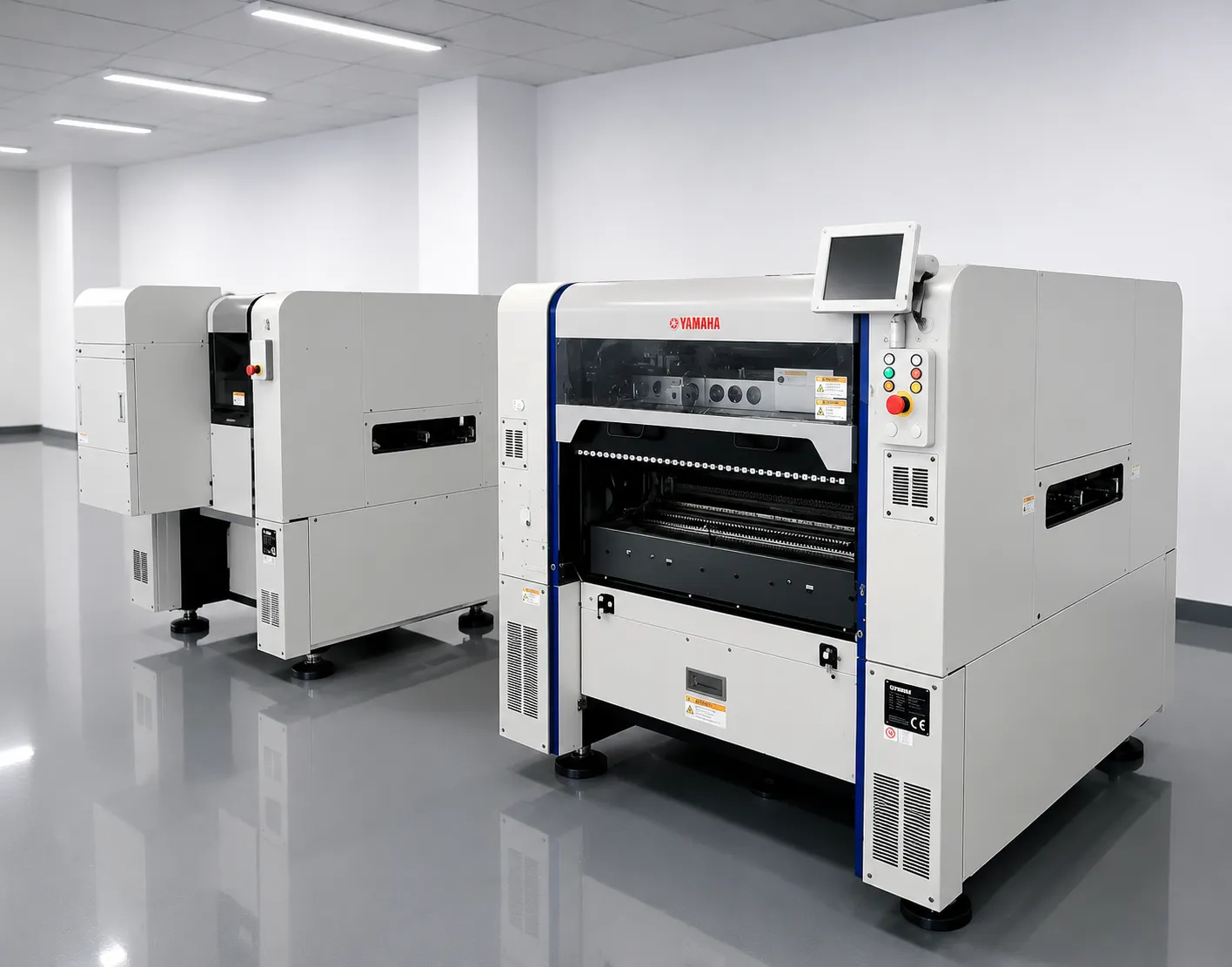

Case StudyYamaha YSM20R Changsha Case StudyFour high-speed SMT production lines built with Yamaha YSM20R-class placement in Changsha.Read article →

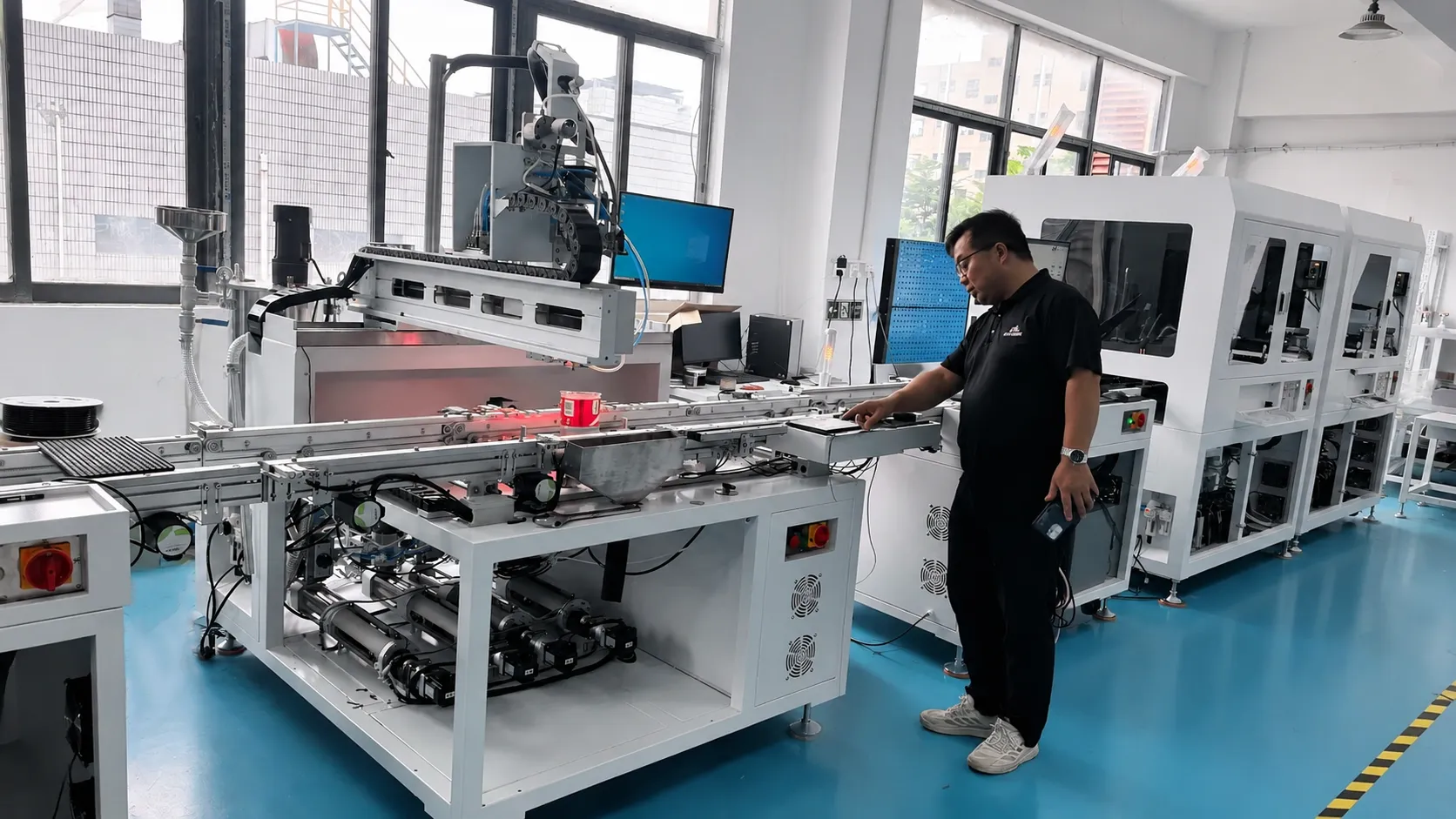

SupportTechnical SupportGlobal after-sales support, remote training, spare parts and service requests.Read article →SMT Production Line FAQ
What infrastructure is required to set up a fully automated SMT production line?▼
A cleanroom or controlled environment with proper power supply (220V), compressed air, and space for loader, printer, placement, reflow, and unloading equipment in sequence. JHIMS provides the full SMT production line layout guidance with each turnkey project.
How does JHIMS manage international logistics risks for automated lines under DDP terms?▼
JHIMS handles equipment manufacturing, testing, packaging, export logistics, customs clearance, and final factory-floor delivery — one accountable partner for the full journey.
What machines are included in a JHIMS turnkey SMT line?▼
A typical SMT production line includes PCB loader (L350), vision solder paste printer (L5), Yamaha pick-and-place (YSM10), 8-zone reflow oven (F8), conveyors, and PCB unloader (JH-X330).
Are the Yamaha machines and feeders in a JHIMS turnkey line new or used?▼
Configuration is flexible. In this project JHIMS supplied a 2021 Yamaha YSM10 pick-and-place machine together with 76 new original Yamaha feeders (SS 8mm, ZS 12/16mm and ZS 24mm) — a mix selected to meet the client’s budget and quality targets.
Can the line pass European and US factory audits?▼
Yes — traceable quality control, verified placement accuracy, and full automation support audit compliance, as demonstrated by the German client’s Malaysia factory. Browse JHIMS videos on YouTube for more factory-audit case studies.
What quality documentation supports factory audits?▼
Each machine passes strict pre-shipment quality control including calibration and functional testing, and the line operates with traceable quality control and verified placement accuracy — the documentation trail the client’s auditors required.
How long does DDP delivery take?▼
Timelines depend on line configuration and destination, but JHIMS manages the complete schedule from manufacturing through customs clearance to factory-floor delivery.
What is included in the price of a DDP turnkey project?▼
Under DDP terms, one quotation covers the entire journey — manufacturing, testing, packaging, export logistics, customs clearance, and final delivery to the factory floor — so the buyer gets one accountable partner and no unexpected duties or logistics costs.
Can JHIMS deliver a similar turnkey line to my factory?▼
Yes — JHIMS applies the same turnkey model to new factory projects: equipment manufacturing, testing, packaging, export logistics, customs clearance, and final factory-floor delivery under DDP terms.
What PCB sizes can a JHIMS turnkey SMT line handle?▼
Board size depends on the line configuration. The JHIMS L5 printer in this project prints PCBs up to 400×340mm with ±0.025mm accuracy, and the Yamaha YSM10 handles components from 0201 to 55×100mm. Exact limits follow from the loader, printer, mounter and reflow oven selected.
How many feeders can the YSM10 platform hold?▼
This project used a 72-feeder mounting platform on the Yamaha YSM10. The YSM10 product line supports up to 96 feeders depending on feeder type and configuration.
Can SPI or AOI inspection be added to the line?▼
Yes. Inspection stations are optional line modules — for example the JHIMS S630 3D SPI verifies solder paste quality before reflow, and the XI-2000 AOI inspects assembled boards. This project’s configuration focused on printing, placement, reflow and board handling.
What are the power and air requirements for the line?▼
A typical line needs a stable 220V power supply and compressed air for the printer, placement machine and reflow oven. Exact ratings depend on the equipment configuration; JHIMS confirms the full site requirements with you before shipment.
Does JHIMS provide installation and commissioning?▼
Yes. Under the turnkey model JHIMS manages delivery to the factory floor, and every machine arrives together ready for installation in sequence. Installation and commissioning support is coordinated as part of the project schedule.
Do you provide operator training?▼
Yes — JHIMS provides operator and maintenance training as part of its service package, including remote training options through the global support team.
What after-sales support is available?▼
JHIMS operates a global service network covering after-sales support, remote training, spare parts and service requests — available for turnkey lines wherever they are installed.
Can JHIMS supply spare parts for Yamaha machines?▼
Yes. As an authorized Yamaha distributor, JHIMS supplies original Yamaha spare parts, feeders and accessories with full traceability.
How does pre-shipment quality control work?▼
Every machine passes strict pre-shipment quality control, including calibration and functional testing, before it is packaged for export.
What packaging protects machines during shipping?▼
Heavy-duty industrial packaging and shipping frames protect equipment across long-distance freight — as shown in the delivery photos and video on this page.
Who handles customs clearance and duties?▼
Under DDP terms JHIMS handles export logistics, customs clearance and final factory-floor delivery, so the buyer faces no unexpected duties or logistics costs.
What is the difference between FOB and DDP delivery?▼
With FOB the buyer takes over responsibility after the goods are loaded; with DDP the seller delivers to the buyer’s door with all duties paid. JHIMS offers both, and DDP removes cross-border risk from the buyer’s side.
How do I get a quotation for a turnkey line?▼
Share your PCB types, production volume and factory conditions, and JHIMS will propose a line configuration with a single DDP quotation — our team typically replies within 12 working hours (Mon–Sat, 09:00–23:00 China Standard Time, UTC+8).
What documents are delivered with the line?▼
Each machine ships with its manuals and QC records, and the full project includes traceable quality documentation that supports factory audits.
How long does the whole project take from order to delivery?▼
Timelines depend on machine availability, line configuration and destination. JHIMS manages one shipment schedule for the complete project, from manufacturing through customs clearance to factory-floor delivery.
Can the line be expanded as production grows?▼
Yes — the line is built from modular stations, so printers, mounters, inspection, dispensing or screw-driving stations can be added later to increase capacity and capability.
Is the line suitable for high-mix, low-volume production?▼
The YSM10’s flexible feeder platform and the L5 printer’s fast program changeover support mixed production. The best configuration depends on your product mix — JHIMS can advise on the right setup.
What quality system does JHIMS itself follow?▼
JHIMS (Shenzhen Jinghe Technology Co., Ltd.) has served SMT, LED and PCB production since 2012 with traceable quality control and factory-audit-ready documentation.
Can JHIMS build a line for a specific industry, such as LED or automotive electronics?▼
Yes. JHIMS configures turnkey lines across industries — LED displays, automotive electronics, consumer electronics and more — with equipment selected for each product’s requirements.
Do you offer flexible payment terms for export projects?▼
Payment terms are agreed per contract, and JHIMS offers standard trade terms for export projects. Contact us to discuss the terms that fit your purchasing process.
How can I verify JHIMS equipment quality before ordering?▼
You can request QC documentation, witness pre-shipment testing, or arrange a factory visit — the same traceable process applied to this Malaysia project, which passed stringent European and US factory audits.
