Used Yamaha YSM20R Case Study: Shenzhen SMT Efficiency
Refurbished Yamaha YSM20R for a Shenzhen contract manufacturer: 50% order growth absorbed, cycle time cut from 8 to 5 hours, downtime down 35%, payback in 7 months.
Case Study
Used Yamaha YSM20R Case Study: Shenzhen SMT Efficiency
How a Shenzhen contract manufacturer absorbed 50% order growth with one refurbished Yamaha YSM20R: 95,000 CPH sustained, cycle time down 37.5%, downtime down 35% and payback in 7 months.
Direct answer: The Yamaha YSM20R is a high-speed modular pick-and-place machine that boosted SMT efficiency by 30% for a Shenzhen contract manufacturer. JHIMS delivered a refurbished two-year-old YSM20R with enhanced IC cabinets and cameras, installed in just 48 hours. Within 90 days the plant sustained 95,000 CPH, cut cycle times from 8 to 5 hours, reduced downtime by 35%, grew order capacity by 20%, and achieved a 7-month ROI.
Key Takeaways
- 195,000 CPH Throughput
- 2-37.5% Cycle Time
- 37 mo ROI Payback
- 4+20% Order Capacity
Customer & Industry
At a glance: who the customer is, where the machine was delivered, and what drove the investment.
CustomerShenzhen contract manufacturer (name confidential)
IndustryConsumer gadgets / automotive electronics OEM
Project LocationShenzhen, China
Project TypeRefurbished used Yamaha YSM20R (1 unit)
ApplicationHigh-mix SMT: LED, ECU, consumer electronics PCBs
Driving RequirementScale output +50% (2025 demand) without new-machine budget
Customer Background: Shenzhen OEM
A Shenzhen contract manufacturer runs over 10,000 boards daily across consumer, automotive and industrial work. Orders rose 50% in 2025, so a refurbished Yamaha YSM20R from JHIMS added scalable automation at lower cost.
The refurbished YSM20R was chosen because it was cost-effective without cutting capacity, leaving room for 50% order growth in 2025. It runs on the same Z:LEX platform.
The pressure was mix, not a single product: handling 0201 chips and IC trays on one platform means frequent feeder changes, and repeated swaps cut efficiency by about 25%. Limited tray positions add downtime.
Project Challenges
- Component Diversity Handling components from 0201 chips to large capacitors caused 25% efficiency drops due to frequent feeder swaps.
- Feeder Downtime Limited feeders for IC trays caused downtime on variable, high-mix orders.
- Budget Constraints Budget limits required reliable used equipment for continuous production operations.
- Competitive ROI Market competition demanded rapid return on investment in Shenzhen’s high-stakes environment.
The four challenges are one constraint seen from four angles: a high-mix line stops earning whenever it changes what it feeds. How long the machine runs before a feeder change is the specification that mattered.
Each reported challenge is set out below with the mechanism that produced it on a high-mix line and the response in the delivered configuration.
| Reported challenge | Mechanism in a high-mix schedule | Response in the delivered configuration |
|---|---|---|
| Component diversity from 0201 chips to large capacitors | Each additional component type costs a feeder position and a change | Component range 0201 to 55 x 100 mm, up to 140 feeder positions for 8 mm tape |
| 25 percent efficiency drop from frequent feeder swaps | Setup time plus first-article verification on every product change | ALF auto loading feeder cut idle time during tape changes by 40 percent |
| Feeder downtime on IC trays | Tray positions cannot be exchanged like tape feeders, so a missing position stops the run | sATS30NS tray changer added to optimize mixed production |
| Budget constrained to used equipment | New-machine cost was outside the available budget | Refurbished two-year-old YSM20R with enhanced IC cabinets and cameras |
| Demand for rapid return on investment | Contract work must pay the machine back inside the order window | Payback reached in 7 months with 95,000 CPH sustained |
| 50 percent order growth in 2025 | The line had to absorb more volume without more staff | 20 percent more orders accepted without adding staff |
| Production interruption during upgrade | Every day of installation is a day of lost output | Machine installed and commissioned within 48 hours |
Customer Requirements
Before selecting the refurbished Yamaha YSM20R, the customer verified four non-negotiable requirements:
- High-Speed Throughput 95,000 CPH to absorb 50% order growth.
- Component Versatility Handling 0201 chips to large capacitors without frequent swaps.
- Budget Fit Reliable used equipment at a fraction of new-machine cost.
- Rapid Deployment Fast installation to minimize production interruption.
The four checks ran against a specific machine, not a model. Acceptance rested on that machine’s Cpk and condition: a used machine that needs repair costs more in lost production than the discount it carried.
JHIMS Solution: Used Yamaha YSM20R Supply & Support

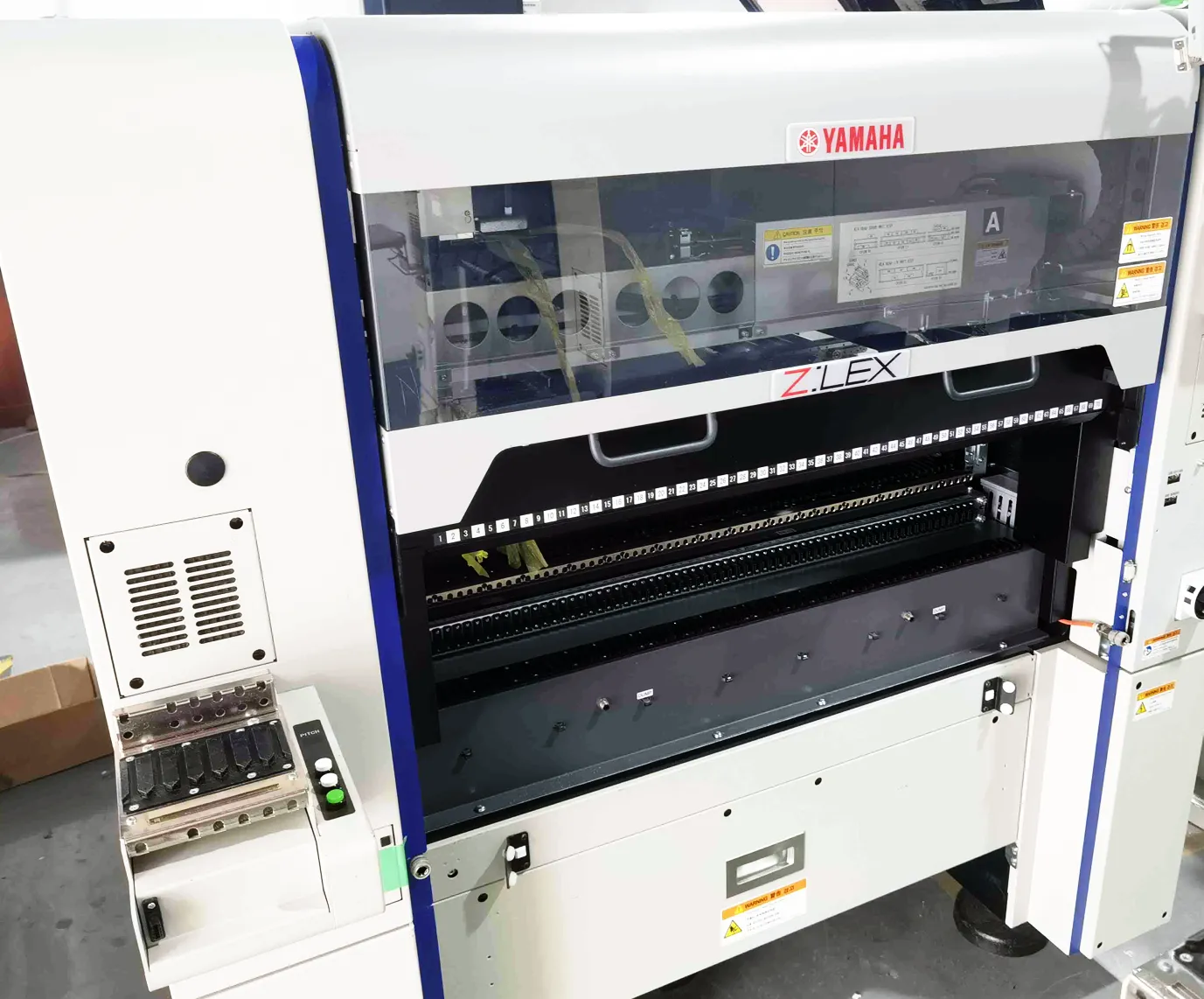

- Refurbished Yamaha YSM20R A two-year-old Yamaha YSM20R, fully refurbished with enhanced IC cabinets and cameras, delivered at a fraction of new-machine cost.
- 48-Hour Installation JHIMS installed and commissioned the machine in just 48 hours, minimizing production interruption.
- ALF Auto Loading Feeder Auto Loading Feeder (ALF) reduced idle time by 40% during tape changes.
- Climate-Calibrated Setup sATS30NS optimized mixed production, with climate-calibrated setup ensuring ±0.035mm accuracy.
- Single-Head Versatility Managed all components flawlessly, customized for the plant’s dynamic workflow.
- After-Sales Support Remote troubleshooting, manuals, and on-site training in Shenzhen for seamless integration.
Support continued after delivery: the engineers who qualified the machine stayed through commissioning and the first weeks of mixed production. It bought a configured line, not a bare machine.

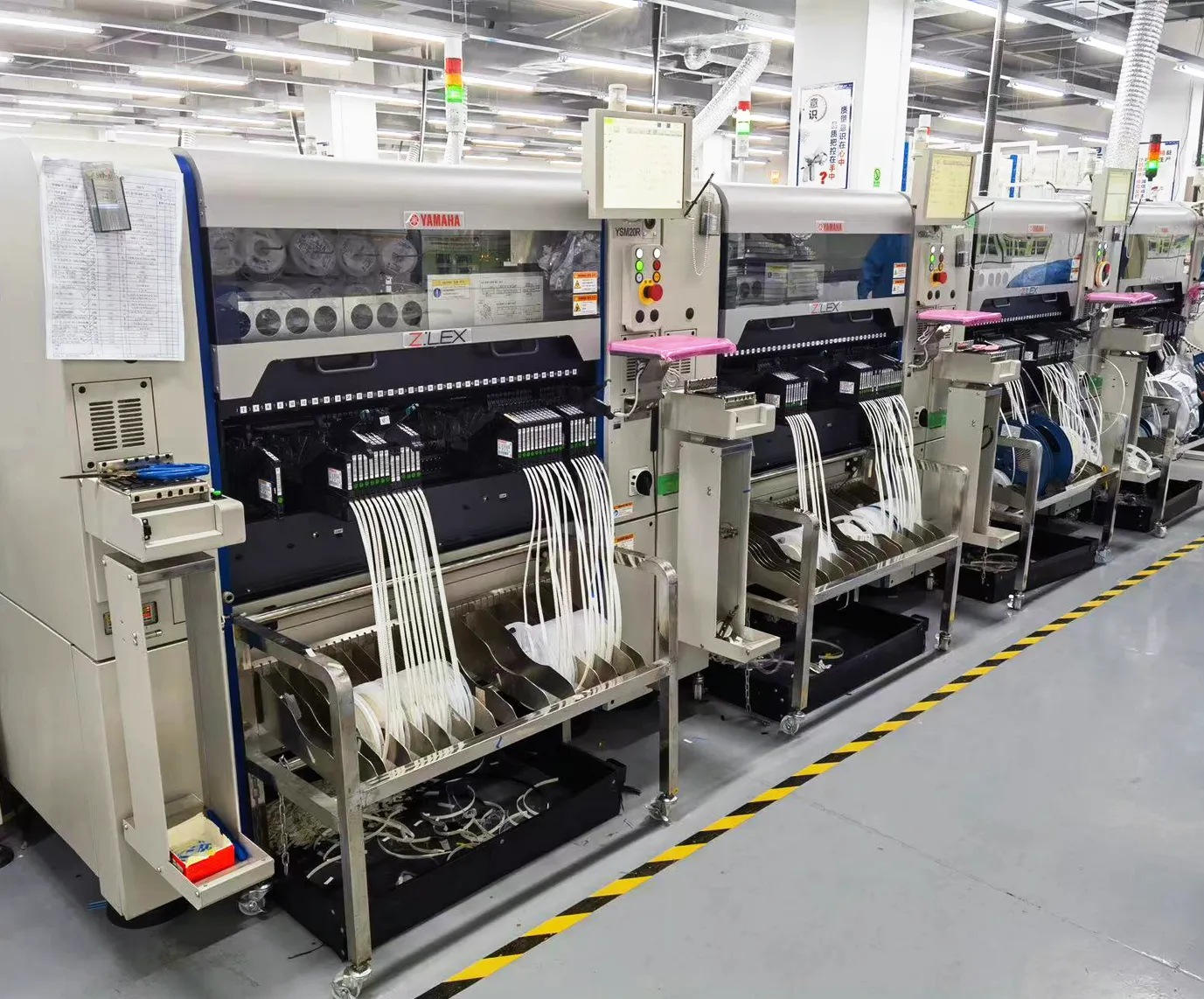

Yamaha YSM20R Equipment Configuration
| Item | Model | Qty |
|---|---|---|
| High-speed modular mounter (refurbished) | Yamaha YSM20R | 1 |
| Accessories | ALF auto loading feeder + sATS30NS tray changer | 1 set |
A refurbished two-year-old YSM20R with enhanced IC cabinets and cameras, installed and commissioned in 48 hours.

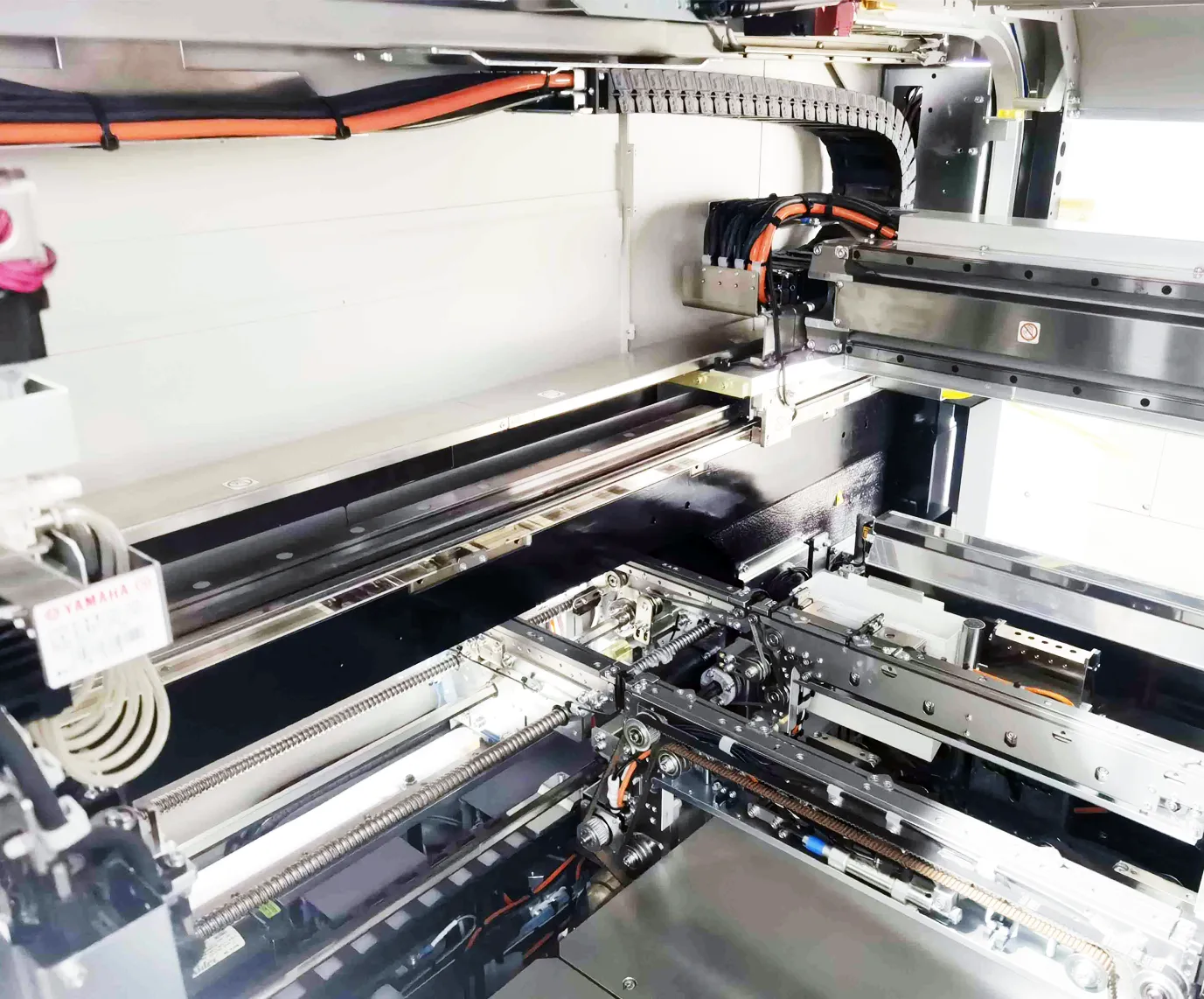

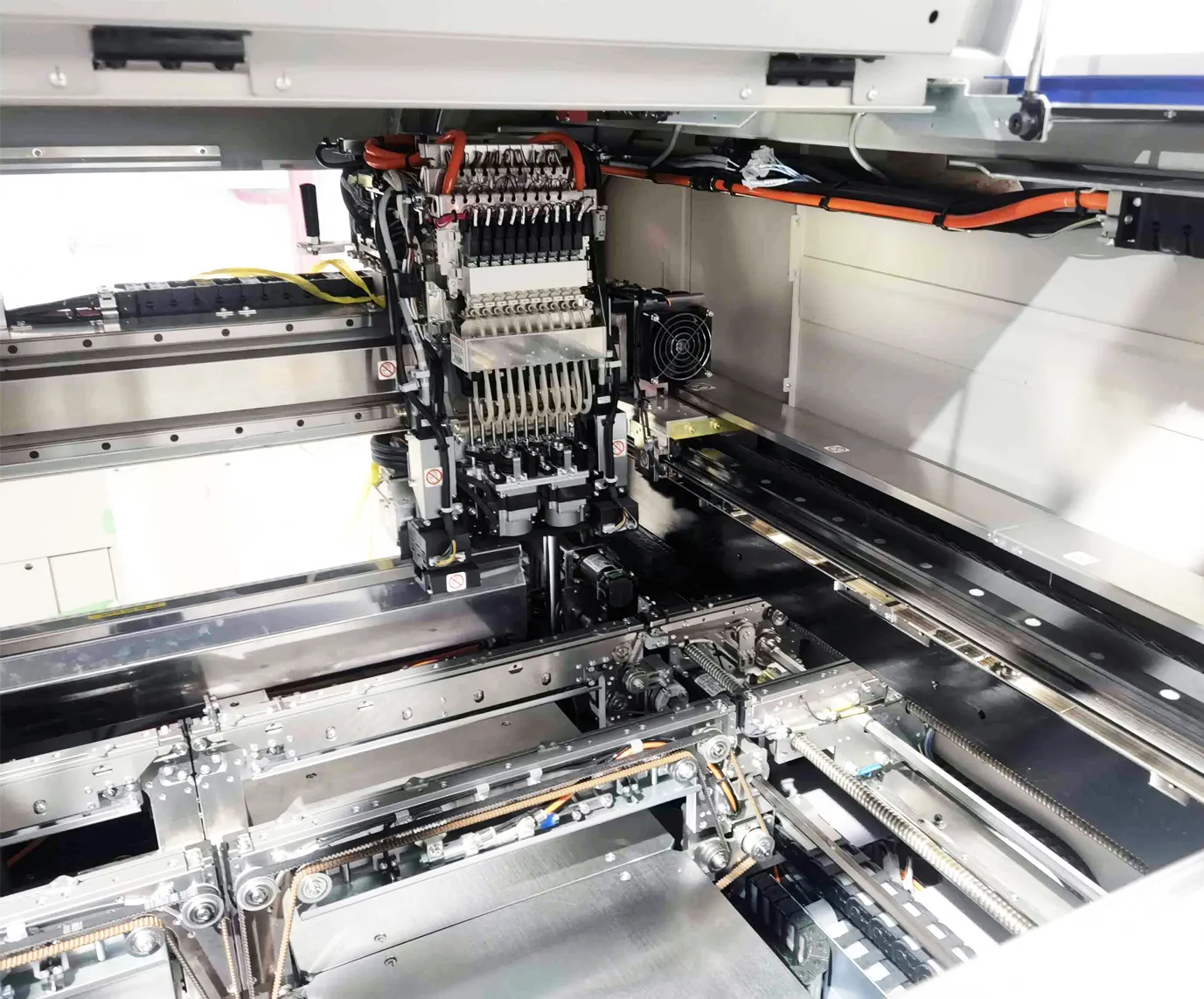

Yamaha YSM20R Key Specifications
| Feature | Details |
|---|---|
| Mounting Speed | 95,000 CPH (optimal conditions) |
| Accuracy | ±0.035mm (±0.025mm optional), Cpk ≥ 1.0 |
| Component Range | 0201 to 55×100mm, height up to 15mm |
| Feeders | Max 140 (8mm tape) + trays |
| PCB Size | Dual lane: L810×W356 to L50×W50mm |
| Dimensions | L1,374 × W1,857 × H1,445mm |
| Weight | Approx. 2,050kg |
| Warranty | 12 months |
The published specification of this machine is what makes it suitable for the plant’s mix rather than only for its volume, and each figure below is best read as a decision it makes for this plant.
| Parameter | Published figure | What it decides for this plant |
|---|---|---|
| Machine | Refurbished Yamaha YSM20R, two years old, with enhanced IC cabinets and cameras | Whether used capacity could meet a new-machine requirement |
| Mounting speed | 95,000 CPH under optimal conditions | The rate used to absorb 50 percent order growth |
| Placement accuracy | Plus or minus 0.035 mm (plus or minus 0.025 mm optional), Cpk at least 1.0 | Keeping 0201 placement and larger parts on one platform |
| Component range | 0201 to 55 x 100 mm, height up to 15 mm | How wide a product mix one line can run |
| Feeder capacity | Up to 140 positions for 8 mm tape plus trays | How many component types stay online between changes |
| PCB size | Dual lane from L810 x W356 mm down to L50 x W50 mm | Mixed board formats without re-tooling the line |
| Accessories fitted | ALF auto loading feeder and sATS30NS tray changer | Idle time during tape changes and IC tray availability |
| Machine footprint and weight | Approximately 1,374 x 1,857 x 1,445 mm, about 2,050 kg | Aisle space and floor loading before installation |
| Warranty | 12 months | Cover for the first year of continuous production |

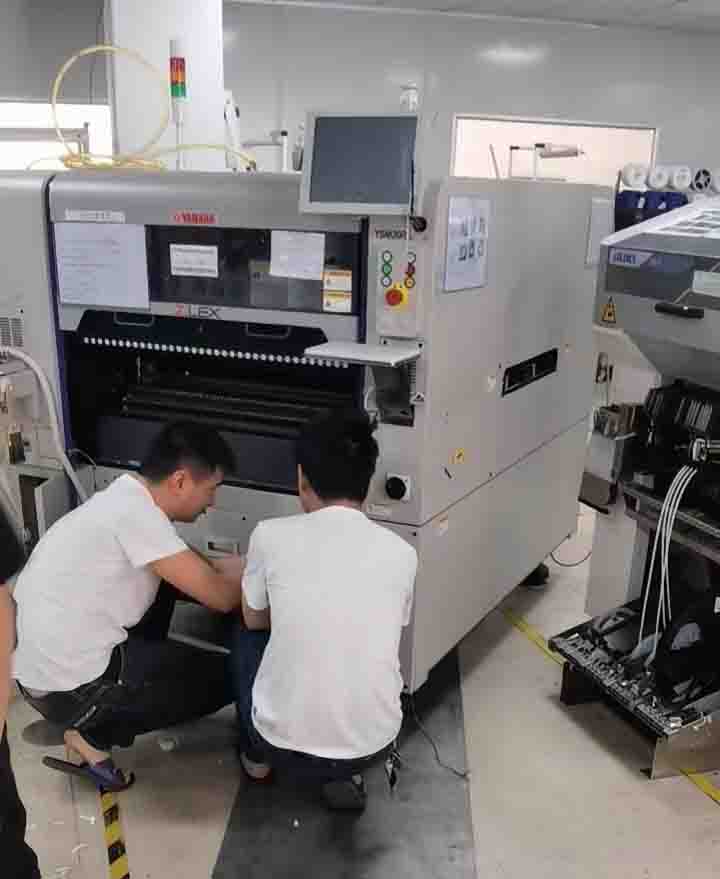

Implementation: Yamaha YSM20R 48-Hour Installation
JHIMS delivered and installed the refurbished Yamaha YSM20R in 48 hours. The ALF auto loading feeder cut tape-change idle time by 40%, the sATS30NS tray changer supported mixed runs, and setup held ±0.035 mm accuracy.
A 48-hour installation is possible only when the machine arrives ready.
- Pre-shipment testing: the machine is prepared and tested before it leaves the supplier.
- Positioning and connection: fitted to the existing line, with power, air and conveyor matched to the flow.
- Configuration: the ALF auto loading feeder and sATS30NS tray changer fitted and checked.
- Calibration and programs: climate-calibrated to ±0.035 mm, with the mixed-board programs loaded.
- First-article run: verified on live orders, with operator training at handover.
- Continuous feeding: the ALF auto loading feeder runs tape through splices, cutting idle time 40%.
Video: Yamaha YSM20R in Operation
Witness the YSM20R’s adaptability in real-world SMT setups. Watch the full YSM20R video on YouTube.
On a refurbished machine, video evidence matters more than on a new one.
- Head motion: watch the heads cycle over a real product across the full board width.
- Feeder indexing: watch the feeder banks index tape without interruptions.
- Tray handling: watch the tray handler pick ICs and align them without hesitation.
- Changeover: watch a feeder exchange, program recall and first-article check between two products.
- Recovered efficiency: look for evidence of the 25% efficiency recovery after feeder swaps.
Yamaha YSM20R Results & Operational Benefits
Within 90 days the line had settled into the rhythm the customer needed, and the published outcome is set out below.
| Metric | Before | After | Improvement |
|---|---|---|---|
| Cycle Time | 8 hours | 5 hours | -37.5% |
| Downtime | — | — | -35% |
| Order Capacity | — | — | +20% (no extra staff) |
| ROI | — | 7 months | Exceeds industry average |
The YSM20R elevated our production scalability and reliability, perfectly suited for Shenzhen’s demanding market. — Shenzhen Plant Manager
YSM20R vs YSM10 Comparison
| Feature | Yamaha YSM20R | Yamaha YSM10 |
|---|---|---|
| Speed | 95,000 CPH | 46,000 CPH |
| Component Range | 0201 to 55×100mm (15mm H) | 03015 to 55×100mm (15mm H) |
| Feeders | 140 (8mm) + trays | 96 (8mm) |
| Changeover Time | <5 min | 10 min |
- Throughput The Yamaha YSM20R delivered a 30% SMT efficiency boost with sustained 95,000 CPH.
- Speed Cycle times cut 37.5% — from 8 to 5 hours.
- Downtime 35% reduction, enabling 20% more orders without extra staff.
- ROI Full payback in 7 months, exceeding industry averages.
- Versatility Seamless high-mix production for LED, automotive ECU, and consumer gadget PCBs.
The Auto Loading Feeder contributed to the downtime figure by cutting idle time during tape changes by 40 per cent, and the tray changer removed the IC-tray bottleneck that had interrupted variable orders.
Beyond those three, the same configuration serves 5G communications (high-speed BGA mounting) and medical devices (accurate assembly for diagnostics and wearables).
Why High-Mix Production Punishes Feeder Changes
High-mix lines are limited by how long the machine runs before someone intervenes. Each change costs setup time and the next run’s first boards — a 25% efficiency drop. Without a tray handler, 0201 trays stop the run.
Changeover time is the other half of the same equation, and it must be measured on your own product pair.
- Measure your change: feeder swap, program recall, first-article check and release, timed on your own line.
- Feeder capacity: more positions reduce how many changes are needed.
- Fast recall: quick program recall and tool-less adjustment cut the cost of each change.
- Tray changer and feeder: judge a refurbished machine by its options, not by the discount.

Related Products
FeaturedYamaha YSM20R MounterHigh-speed modular mounter – 95,000 CPH, 140 feeders, 0201 to 55×100mm components, used and refurbished options available.View product →
CompanionYamaha YSM10 MounterHigh-speed compact modular mounter – 46,000 CPH, 96 feeders, e-Vision + Side View.View product →
RelatedYamaha YSM40R MounterUltra-high-speed modular mounter — up to 200,000 CPH, 0201 to 45×100mm, rotary head for irregular LED placement.View product →
RelatedJHIMS S630 3D SPI3D solder paste inspection – verifies print quality before reflow.View product →
RelatedDPS-2 Lens Vibratory FeederDual-frequency vibratory lens feeder — 0.5–1s per lens, 3–25mm lenses, 2 disc tracks expandable to 10.View product →
RelatedJHIMS R10 Reflow OvenLead-free hot-air reflow soldering for SMT lines – 20 heating zones, up to 300°C peak.View product →Related Resources
Case StudyChangsha PCBA CaseYSM20R 4-line PCB assembly deployment in Changsha.Read article →
Case StudyShenzhen YSM40R CaseYSM40R doubling LED display output for a Shenzhen manufacturer — 145K CPH, +123% speed.Read article →
Case StudySpain LED YSM20R CaseUsed YSM20R powering LED manufacturing in Spain with CPK-tested reliability.Read article →
GuideSourcing SMT Equipment from ChinaA risk-managed procurement guide – sourcing, QC and delivery for SMT equipment from China.Read article →
GuideL5 Solder Paste Printer GuideStep-by-step video guide for the JHIMS L5 automatic solder paste printer.Read article →SupportTechnical SupportGlobal after-sales support, remote training, spare parts and service requests.Get support →Frequently Asked Questions
What is the typical ROI for a used Yamaha YSM20R?▼
For high-volume producers, a used YSM20R typically pays back in 6–12 months. The Shenzhen customer achieved ROI in 7 months with a 95,000 CPH sustained throughput.
How does the YSM20R enhance SMT efficiency?▼
With 95,000 CPH, ALF auto-loading feeders, and under-5-minute changeovers, the YSM20R boosted efficiency by 30% for the Shenzhen contract manufacturer — cutting cycle times by 37.5%.
What components can the YSM20R handle?▼
From 0201 ultra-small chips to 55×100mm components up to 15mm tall, with up to 140 feeders plus IC trays.
Is the YSM20R ideal for LED assembly?▼
Yes. Continuous 0201 placement for high-volume lighting is one of its strongest applications, as demonstrated in the Shenzhen deployment.
What accuracy does the YSM20R offer?▼
±0.035mm standard (±0.025mm optional) with Cpk ≥1.0, verified through climate-calibrated setup.
Can the YSM20R integrate with dual-lane setups?▼
Yes. It supports dual-lane PCBs from L810×W356 down to L50×W50mm, ideal for high-mix production.
How was the refurbished YSM20R delivered?▼
JHIMS delivered a two-year-old YSM20R fully refurbished with enhanced IC cabinets and cameras, installed and commissioned in just 48 hours with minimal production interruption.
What industries benefit from the YSM20R?▼
Consumer electronics, automotive (ECU/ADAS), LED lighting, 5G communications, and medical devices — as demonstrated in the Shenzhen deployment.
What is the maximum placement speed of the YSM20R?▼
The YSM20R achieves 95,000 CPH under optimal conditions (type PV). Real-world speed depends on board design, component mix, and feeder setup.
What is the placement accuracy of the YSM20R?▼
±0.035mm standard accuracy (±0.025mm high-accuracy) at Cpk ≥ 1.0, verified in the Shenzhen deployment through climate-calibrated setup.
What is the component range of the YSM20R?▼
The YSM20R handles components from 0201 (0.6×0.3mm) up to 55×100mm, with a maximum height of 15mm — covering chips, capacitors, ICs, and connectors.
How many feeders can the YSM20R support?▼
Up to 140 feeders (8mm tape equivalent) plus tray feeders, with sATS30NS automatic tray changer for high-mix production.
What PCB sizes can the YSM20R process?▼
Dual-lane operation: L810×W356 to L50×W50mm, with dual-stage configurations supporting larger boards.
What are the YSM20R dimensions and weight?▼
L1,374 × W1,857 × H1,445mm, approximately 2,050kg.
What is the Auto Loading Feeder (ALF)?▼
The ALF automatically loads new tape reels during production, reducing idle time by 40% during tape changes — a key efficiency feature in the Shenzhen deployment.
What is the sATS30NS tray changer?▼
The sATS30NS automatic tray changer optimizes mixed production by supplying IC tray components without stopping the line, ideal for variable high-mix orders.
Does the YSM20R support high-mix production?▼
Yes. With 140 feeders plus trays and under-5-minute changeovers, the YSM20R is built for high-mix, variable-order environments.
Is a used YSM20R a good investment?▼
A refurbished used YSM20R delivers the same 95,000 CPH performance at a fraction of new-machine cost — the Shenzhen customer achieved ROI in 7 months.
What is the changeover time of the YSM20R?▼
Under 5 minutes for typical product changes, enabling fast switching between consumer gadgets and automotive PCB batches.
How does YSM20R compare to YSM10?▼
The YSM20R offers 95,000 CPH with 140 feeders versus the YSM10’s 46,000 CPH with 96 feeders. The YSM20R suits high-volume, high-mix lines; the YSM10 fits compact, mid-speed applications.
Can the YSM20R handle 0201 components?▼
Yes. The YSM20R places 0201 (0.6×0.3mm) components with ±0.035mm accuracy, verified for continuous high-volume LED PCB placement.
What warranty does JHIMS provide for used YSM20R machines?▼
All JHIMS machines, including refurbished used units, come with a 12-month warranty from the date of delivery, covering parts and labor.
How do I get technical support for the YSM20R?▼
Contact us on phone (86-755) 86700443, WhatsApp, email ([email protected]) or Telegram (@jinghe_tech). An engineer replies within 12 working hours (Mon–Sat, 09:00–23:00 China Standard Time, UTC+8) (business days). Browse JHIMS machine videos on YouTube.
What payment terms does JHIMS offer?▼
T/T (Telegraphic Transfer) is the primary method. Standard payment terms: 70% T/T deposit with the order, 30% T/T before shipment. Existing customers may use L/C (Letter of Credit) at sight.
Can JHIMS ship the YSM20R worldwide?▼
Yes. JHIMS ships worldwide via sea freight, air freight, or express courier, with export packaging per ISPM-15 standards. DDP, DAP and FOB Shenzhen terms available.
How is a used YSM20R refurbished?▼
Every used YSM20R is fully inspected, cleaned, and refurbished with enhanced IC cabinets and cameras where needed, then tested to achieve full 95,000 CPH specification.
Can I visit JHIMS to inspect a YSM20R?▼
Absolutely. Visit our Shenzhen facility to inspect used YSM20R machines, or arrange a remote video inspection with live machine demonstration.
How long does delivery take for a used YSM20R?▼
Standard: 1-3 weeks (refurbishment + testing + export packaging + freight). Express delivery available for urgent orders.
Does JHIMS provide installation support?▼
Yes. JHIMS provides on-site installation and commissioning — the Shenzhen YSM20R was installed in just 48 hours with minimal production interruption.
