R10 Lead Free Hot Air Reflow Oven
Request a quote
R10 — 10-Zone Lead-Free Hot Air Reflow Oven
±1°C Accuracy20 Heating Zones300°C Peak460mm Max PCB30% Energy Saving
- 🌡️ 10 upper + 10 lower zones with PID closed-loop control for uniform thermal profiles
- ⚙️ Siemens PLC + WIN10 control · German Hotset heating elements · UPS backup
- 🏭 ISO 9001 · CE compliant · 2,456+ clients in 30+ countries · Global after-sales
LEAD-FREE HOT AIR REFLOW OVEN

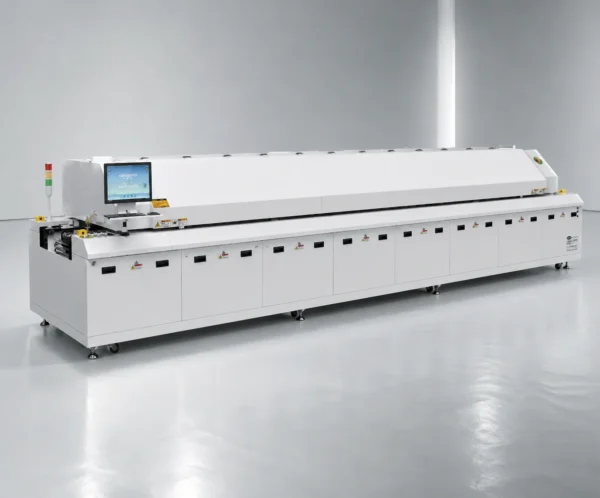

JHIMS R10 Lead Free Hot Air Reflow Oven
Achieve ±1°C temperature control across 20 independent heating zones with German Hotset heating elements and Siemens PLC control. The R10 combines intelligent current diversion that cuts energy consumption by 30%, world-class Japanese and German components, and a 6,380mm full-length tunnel to deliver reliable reflow soldering for automotive, medical, and consumer electronics manufacturers worldwide.
ISO 9001 Certified
CE Compliant
Serving 2,456+ Clients in 30+ Countries
36 R&D Engineers
Est. 2012 — 14+ Years of Excellence
Automotive Tier-1 Supplier
Medical Device Manufacturer
Consumer Electronics OEM
Industrial Automation Leader
LED Lighting Manufacturer
Medical Device Manufacturer
Consumer Electronics OEM
Industrial Automation Leader
LED Lighting Manufacturer
Explore JHIMS Solutions: Learn more about SMT assembly equipment and PCBA manufacturing solutions. Looking for specific applications? Discover our expertise in pick and place machines, solder paste printers and reflow ovens for complete SMT line integration. Complete your line with SPI inspection, AOI systems, feeders and feeder parts, and SMT machine parts. See how JHIMS supports why customers choose JHIMS, review our certificates and warranty policy, or explore buying guides, case studies and FAQ resources. For process support, browse our installation guides, user manuals and troubleshooting guides.
Pain Points & JHIMS Solutions
Common Reflow Soldering Challenges
- Temperature inconsistency across zones causing uneven solder joints and tombstoning
- High energy costs — traditional reflow ovens consume 20-25KW continuously with no intelligent power management
- Slow cool-down rates — inadequate cooling zones result in coarse grain structures and weakened intermetallic bonds
- Board warpage — uneven heating and poor transport mechanisms cause PCB bending and component misalignment at peak reflow
- Cold solder joints and bridging — lack of precise PID control leads to latent field failures
- Frequent maintenance downtime — difficult access to furnace internals and low-quality components
- Long warm-up times — 40-60 minute startup delays reduce overall equipment effectiveness
JHIMS R10 Automation Solutions
- ±1°C accuracy across 20 independently controlled zones — uniform profiles from ramp-up through cool-down
- Smart current diversion cuts energy consumption by 30% — normal operating power just 11-13KW
- 1,260mm dual-sided cooling (3 upper + 3 lower zones) for controlled solidification and strong joints
- 3,840mm preheating tunnel with dual-sided heating prevents warpage on large thermal mass boards
- PID closed-loop + SSR drive eliminates cold joints and bridging, reducing defect rates below 50 DPMO
- Electric top cover opens in one touch — weekly maintenance cut from 45 minutes to under 10
- Fast startup and electric rail width adjustment — changeover under 3 minutes, less downtime
Product Overview
JHIMS R10 Lead Free Hot Air Reflow Oven
The JHIMS R10 is a 10-zone lead-free hot air reflow oven engineered for high-volume SMT reflow soldering in PCB assembly. As a hot air reflow soldering machine rated to 300°C, it handles both lead-free (RoHS) and leaded solder alloys with ±1°C accuracy across 20 heating zones. Featuring 20 independent heating zones (10 upper + 10 lower) with PID closed-loop control and a 3,840mm preheating tunnel, the R10 delivers uniform thermal profiles board after board, while the 1,260mm dual-sided cooling section ensures controlled solidification for high-reliability solder joints.
Engineered with premium components from Hotset (Germany), Siemens (Germany), Omron (Japan), Schneider (France), and NSK (Japan), the R10 delivers industrial-grade reliability for 24/7 production environments.
Applications: Reflow soldering for automotive electronics, medical devices, consumer electronics, LED lighting, new energy, industrial automation, home appliances and telecommunications PCB assembly.
Key Features
🌡️
20-Zone Independent Heating
10 upper + 10 lower heating zones with independent PID closed-loop control. Each zone is individually calibrated and monitored, allowing precise thermal profiling for any PCB assembly — from simple single-sided boards to complex double-sided designs with mixed component sizes. Total preheating length: 3,840mm.
⚙️
German Hotset Heating Elements
World-class heating wire technology from Hotset (Germany) delivers ±1°C temperature precision with exceptional long-term stability. These industrial-grade elements resist oxidation and thermal degradation, ensuring consistent performance over tens of thousands of production cycles.
❄️
3-Zone Dual-Sided Cooling
3 upper + 3 lower cooling zones spanning 1,260mm provide controlled ramp-down for optimal intermetallic layer formation. The symmetrical cooling design prevents board warpage and ensures uniform joint solidification for brighter, mechanically stronger solder connections.
💻
Siemens PLC + WIN10 Control
Industrial-grade Siemens PLC paired with a Windows 10 industrial PC delivers a powerful yet intuitive control interface. Full touch screen operation with real-time thermal profiling, recipe management for unlimited profiles, data logging, and remote monitoring capabilities.
⚡
Smart Current Diversion
Auto current diversion technology reduces current draw by 40-50% and electricity consumption by 30%. Operating power drops from 45KW startup to 11-13KW during normal running — one of the most energy-efficient reflow ovens in its class.
🛠️
Electric Top Cover Opening
One-touch motorized top cover provides full furnace access for cleaning and maintenance. Eliminates the physical effort and time required for manual cover lifting, reducing weekly maintenance procedures from 45 minutes to under 10 minutes.
🔌
UPS Backup Protection
Integrated Zhuhai Shante UPS (Uninterruptible Power Supply) automatically engages during power outages, keeping the transport system running to safely evacuate all boards from the furnace. Protects work-in-progress PCBs worth thousands of dollars from thermal damage.
🔨
Electric Rail Width Adjustment
PANASONIC (Japan) motor-driven precision width adjustment enables rapid product changeover at the touch of a button. Supports PCB widths up to 460mm with automatic centering and stored width presets for frequent production recipes.
Technical Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Model | JHIMS R10 | Machine Dimensions | 6380 × 1445 × 1520 mm |
| Net Weight | 2,550 kg | Gross Weight | ~2,900 kg (with packaging) |
| Power Supply | 5-wire 3-phase; 380V 50/60Hz | Startup Power | 45 KW |
| Normal Operating Power | 11 – 13 KW | Energy Savings | 30% reduction via auto current diversion |
| Temperature Range | Room temp to 300°C | Temperature Accuracy | ±1°C |
| Max PCB Width | 460 mm | Component Height Clearance | Top: 25 mm / Bottom: 25 mm |
| Transport Speed | 300 – 2,000 mm/min | Transport System | Mesh belt + guide rail chain |
| Heating Zones | 10 upper + 10 lower (20 total) | Preheating Length | 3,840 mm |
| Cooling Zones | 3 upper + 3 lower (6 total) | Cooling Length | 1,260 mm |
| Control System | Windows 10 + Industrial PC + Siemens PLC | Temperature Control | PID closed-loop + SSR drive |
| Rail Width Adjustment | Electric (PANASONIC motor) | Top Cover | Electric motorized opening |
| Backup Protection | UPS (Zhuhai Shante) | Heating Element Type | Hot air convection |
| Soldering Compatibility | Lead-free (RoHS) + Leaded | Max Operating Temperature | 300°C |
| Exhaust System | Built-in fume extraction ports | Nitrogen Option | Available (factory-installed) |
| Data Logging | Full traceability | Warranty | 1 Year standard (extendable) |
Machine Configuration — Premium Global Components
Every JHIMS R10 is built with world-class components. We source only from industry-leading brands to ensure long-term reliability and precision.
Siemens
🇩🇪 Germany
PLC Controller
Hotset
🇩🇪 Germany
Heating Wire Elements
Schneider Electric
🇫🇷 France
Contactors, Main Switch
Omron
🇯🇵 Japan
Intermediate Relays, Speed Camera
NSK
🇯🇵 Japan
Bearings
PANASONIC
🇯🇵 Japan
Width Adjustment Motor
Izumi
🇯🇵 Japan
Control Buttons
Koki / Mitsukoshi
🇹🇼 Taiwan
High Temperature Motors
Ming Wei
🇹🇼 Taiwan
24V DC Power Supply
Confia
🇹🇼 Taiwan
Electric Lead Screw
KMC
🇹🇼 Taiwan
Double Row Long Shaft
ADDK
🇨🇳 China
Transport Motor
Sine
🇨🇳 China
Frequency Converter
Zhuhai Shante
🇨🇳 China
UPS Power Backup
Jiale / Ruilai
🇨🇭 Switzerland / 🇨🇳 China
Solid State Relay (SSR)
Applications & Industries
The JHIMS R10 Lead Free Hot Air Reflow Oven is a versatile workhorse deployed across mission-critical electronics manufacturing sectors worldwide.
📱
Consumer Electronics
🚗
Automotive Electronics
🏥
Medical Devices
🏭
Industrial Automation
🏠
Home Appliances
☁️
New Energy
💡
LED Lighting
📡
Telecommunications
In-Depth Knowledge Hub
Industry-Specific Reflow Soldering Solutions
Automotive Electronics Reflow
Automotive PCBs demand IPC Class 3 reliability with zero-defect soldering. The R10’s ±1°C accuracy and 20-zone control ensure consistent solder joint quality for engine control units (ECU), ADAS modules, BMS boards, and infotainment systems. The extended 3,840mm preheating zone handles large thermal mass assemblies common in automotive power electronics, while the 1,260mm controlled cooling prevents thermal shock on ceramic capacitors and BGAs. With IATF 16949-compatible traceability and full data logging, the R10 meets the rigorous quality documentation requirements of tier-1 automotive suppliers.
Medical Device Soldering
Medical electronics require the highest levels of process control and repeatability. The R10’s PID closed-loop SSR drive system delivers consistent thermal profiles batch after batch, critical for FDA-regulated Class II and Class III medical devices. The nitrogen atmosphere option prevents oxidation on fine-pitch components used in implantable devices, diagnostic equipment, and patient monitoring systems. Full temperature traceability with timestamp logging provides the quality documentation required for ISO 13485 compliance and regulatory audits. The UPS backup system protects high-value medical PCB assemblies during unexpected power interruptions.
Consumer Electronics Mass Production
Smartphones, tablets, wearables, and IoT devices demand high-throughput reflow with zero defects on ultra-fine-pitch components. The R10’s 2,000 mm/min maximum transport speed and mesh belt + guide rail system handle high-volume consumer electronics production with ease. The electric width adjustment enables rapid changeover between different product models, maximizing line utilization. Smart current diversion technology keeps operating costs low at just 11-13KW, directly improving the unit economics of high-volume consumer electronics manufacturing. Compatible with both lead-free SAC305 and low-temperature solders for flexible hybrid assemblies.
Industrial & Power Electronics
Industrial control boards, power supplies, motor drives, and IoT gateways often feature mixed-technology assemblies with large thermal mass components. The R10’s 20-zone architecture with 3,840mm preheating provides the thermal capacity needed to bring heavy copper boards, large connectors, and power MOSFETs to reflow temperature without overheating small components. The dual-sided heating and cooling system handles THT+SMT hybrid boards with up to 25mm top and bottom component clearance, while built-in fume extraction ports keep the production environment clean and compliant.
Reflow Soldering Technology Guide
Understanding reflow soldering technology is essential for optimizing your SMT assembly process. Below is a comprehensive technical reference for engineers and process managers.
Reflow Soldering Principles
Reflow soldering melts pre-deposited solder paste to form reliable electrical and mechanical joints. The process follows a controlled thermal profile: ramp-up, soak, reflow (peak), and cooling. The R10’s 20 independent zones let you program each phase precisely — a typical SAC305 lead-free profile ramps at 1-3°C/s, soaks at 150-200°C for 60-120s, peaks at 235-250°C, and cools at 2-4°C/s. The 3,840mm preheat tunnel provides the soak time large thermal mass boards need, while ±1°C accuracy keeps every board on profile.
Thermal Profiling Best Practices
Accurate profiling starts with correct thermocouple placement: attach thermocouples to the hottest and coolest points of the board (typically large BGAs and board edges) using high-temperature solder or Kapton tape. Run a profile with the R10’s WIN10 software, review the curve against your solder paste datasheet, and adjust zone temperatures in small increments (2-5°C). The R10 stores unlimited recipes, so every board type keeps its own verified profile. Re-profile after any significant board design change or oven maintenance.
Nitrogen Atmosphere Reflow
Nitrogen reflow (factory-installed option) displaces oxygen inside the tunnel to below 1,000 ppm, reducing oxidation during soldering. Benefits include brighter solder joints, better wetting on fine-pitch and OSP-finished boards, fewer voids in BGA and QFN joints, and wider process windows for lead-free alloys. The R10’s nitrogen system includes flow control, distribution manifolds, oxygen monitoring sensors, and sealed tunnel construction to minimize N₂ consumption. Typical N₂ usage ranges from 18-25 m³/h depending on the profile and board load.
Lead-Free Soldering Guide
Lead-free alloys such as SAC305 (Sn96.5/Ag3.0/Cu0.5) require higher peak temperatures (235-250°C) than traditional SnPb (210-220°C) and tighter process control. The R10 is RoHS-compliant and rated to 300°C, providing headroom above the SAC305 peak for dense boards with heavy thermal mass. The 20-zone architecture delivers the uniform heating lead-free solder demands, while controlled cooling (2-4°C/s) prevents thermal shock and intermetallic brittleness. For OSP-finished boards, nitrogen reflow is recommended to maintain solderability.
Manufacturing Best Practices Guide
Maximize your R10 performance with these manufacturing operation and maintenance guidelines.
Daily Reflow Oven Checklist
1. Verify power supply and check the UPS status indicator. 2. Inspect the mesh belt for tracking and tension. 3. Confirm exhaust and fume extraction are operating. 4. Check nitrogen supply pressure if nitrogen option installed. 5. Load the correct recipe for today’s board type. 6. Run a quick profile check with a test board or profiling system. 7. Monitor zone temperatures during the first 30 minutes of production. 8. Log any temperature deviations in the maintenance record.
Preventive Maintenance Schedule
Weekly: Clean flux residue from the tunnel entrance and exit, inspect belt tracking, check filters. Monthly: Clean heating elements and temperature sensors, verify SSR operation, lubricate chain. Quarterly: Full calibration of all 20 zones with certified thermocouples, check cooling fans, inspect electrical connections. Annually: Replace flux filters, inspect heating elements for oxidation, complete mechanical inspection of the transport system. The electric top cover reduces maintenance access time from 45 minutes to under 10.
Product Changeover Best Practices
The R10’s electric rail width adjustment (PANASONIC motor) changes PCB width in under 3 minutes with stored presets. For a fast changeover: 1. Record current recipe settings and board dimensions. 2. Select the new product preset — width adjusts automatically. 3. Load the new recipe from the WIN10 recipe library. 4. Confirm profile with a test board. 5. Adjust transport speed for the new board’s thermal mass if needed. Compared to 15-30 minutes of manual adjustment on benchtop ovens, the R10 keeps changeover downtime to a minimum.
Environmental Control & Facility Requirements
The R10 requires a 5-wire 3-phase 380V 50/60Hz supply with 45KW startup capacity (11-13KW normal operation). Ensure adequate exhaust ducting for the built-in fume extraction ports — typical exhaust flow of 8-12 m³/min. Allow 1m clearance around the oven for the electric top cover opening and maintenance access. Operating environment: 5-40°C, 20-90% RH non-condensing. For nitrogen operation, provide a nitrogen supply line with 0.5-0.7 MPa pressure. Floor loading: 2,550 kg net weight, spread across the 6,380mm footprint.
Production Workflow — R10 in Your SMT Line
See exactly where the JHIMS R10 fits in your PCB assembly process and how it integrates with upstream and downstream equipment.
📦
PCB Loader
PCB Loader
→
🖨️
Solder Paste Printer
Solder Paste Printer
→
📡
Pick & Place
Pick & Place
→
🔥
R10 Reflow Oven
⭐ This Product
R10 Reflow Oven
⭐ This Product
→
🔍
AOI Inspection
AOI Inspection
→
📦
PCB Unloader
PCB Unloader
The R10 integrates seamlessly with upstream pick-and-place and downstream AOI systems, with Ethernet-enabled data sharing for full line traceability.
Manual Reflow vs. JHIMS R10 Automatic Reflow — The Numbers Don’t Lie
| Metric | Manual Printing | JHIMS R10 | Advantage |
|---|---|---|---|
| Temperature Accuracy | ±5-10°C variation | ±1°C across 20 zones | Up to 10× Better |
| Defect Rate | 3,000-8,000 DPMO | <50 DPMO | 99% Fewer Defects |
| Energy Consumption | 18-25 KW continuous | 11-13 KW (30% savings) | 30% Lower Energy |
| Throughput | 10-30 boards/hour | 60-200+ boards/hour | Up to 6× Faster |
| Process Repeatability | Operator-dependent, high variability | Recipe-controlled, 100% repeatable | Consistent Quality |
| Traceability | Manual log or none | Full digital traceability with timestamp | Full Data Logging |
| Changeover Time | 15-30 minutes (manual adjustments) | <3 minutes (electric width adjust) | 10× Faster Changeover |
| Maintenance Downtime | Difficult access, 45-60 min/week | Electric top cover, <10 min/week | 5× Less Downtime |
Based on typical industry benchmarks. Actual results may vary by application and operating conditions.
ROI Calculator — See Your Payback Period
Enter your current production parameters to calculate how quickly the JHIMS R10 pays for itself.
Factory Tour — See JHIMS Manufacturing Excellence
Every JHIMS machine is assembled, calibrated and burn-in tested in our Shenzhen facility, then carefully packed for international delivery.
Reflow Oven Prepared for Customer Delivery
JHIMS Aging Test Workshop
JHIMS Assembly Workshop
JHIMS Demonstration Workshop
Product Videos — See the R10 in Action
Watch the JHIMS R10 performing real-world production tasks. All videos are hosted on YouTube for fast, reliable streaming worldwide.
How to Install Reflow Soldering Machine — Part 1
Complete Reflow Oven Setup Guide — Part 2
Step-by-Step Reflow Soldering Machine Installation — Part 3
How to Install Reflow Soldering Machine — Part 4
CUSTOMER SUCCESS STORIES
Trusted by SMT Factories Worldwide
Real-world results from SMT and PCB manufacturers who work with JHIMS — an ISO 9001 certified reflow oven manufacturer — every case links to a verified JHIMS case study.
LINE AUTOMATIONTCL + JHIMS: 85% Faster Changeover, 30% More Throughput
How a TCL production line cut changeover time by 85% and lifted throughput by 30% with JHIMS automation.
85%Faster Changeover
+30%More Throughput
PCB ASSEMBLYMason Electronics Vietnam: Zero Scratch Defects in Toyota Supplier Audit
A Vietnamese EMS provider passed a Toyota supplier audit with zero scratch defects after reconfiguring their PCB line.
ZeroScratch Defects
PassToyota Audit
COST REDUCTIONMexico PCB Assembly — 67% Labor Reduction
How a Mexican PCB assembly operation reduced labor cost by 67% through SMT line automation.
-67%Labor Cost
AutomatedSMT Line
Frequently Asked Questions
🔧 Technical Questions
The JHIMS R10 can reach temperatures up to 300°C, making it fully compatible with lead-free solders (SAC305 typically peaks at 235-250°C) as well as traditional SnPb solders. The German Hotset heating elements are specifically rated for sustained high-temperature operation without degradation. Temperature accuracy is maintained at ±1°C across all 20 zones throughout the entire operating range.
The integrated Zhuhai Shante UPS (Uninterruptible Power Supply) continuously monitors the main power input. In the event of a power outage, the UPS automatically engages within milliseconds, providing backup power specifically to the transport conveyor system. This ensures all PCBs inside the furnace are safely transported out of the heating tunnel before the furnace cools, preventing boards from being thermally damaged.
Yes, the R10 is available with a factory-installed nitrogen (N₂) atmosphere option. This includes integrated nitrogen flow control, distribution manifolds throughout the heating zones, oxygen monitoring sensors, and sealed tunnel construction to minimize N₂ consumption. Nitrogen reflow reduces oxidation, improves solder wetting, and produces brighter, more reliable solder joints — ideal for fine-pitch and OSP-finished boards.
The R10’s auto current diversion technology actively monitors the electrical load across all 20 heating zones. During the reflow soak and peak phases, when all zones demand maximum power, the system intelligently redistributes current to avoid simultaneous peak draw. This reduces the overall current requirement by 40-50% and translates to approximately 30% lower electricity consumption compared to conventional reflow ovens.
The R10 is controlled by a Siemens PLC (Programmable Logic Controller) paired with a Windows 10 industrial PC. The Siemens PLC handles all real-time temperature control, transport speed regulation, and safety interlocks with industrial-grade reliability. The WIN10 PC provides the touch-screen user interface with unlimited thermal profile storage, real-time multi-zone temperature display, data logging, and remote monitoring capabilities.
Each of the 20 heating zones (10 above and 10 below the conveyor) operates independently with its own temperature sensor, Hotset heating element, and PID control loop. The upper zones primarily heat components and solder paste from above, while the lower zones heat the PCB substrate and bottom-side components from below. This symmetrical dual-sided heating ensures uniform thermal distribution throughout the board, which is essential for double-sided assemblies and large thermal mass components.
The R10 is compatible with all industry-standard PCB surface finishes including HASL (Hot Air Solder Leveling — leaded and lead-free), ENIG (Electroless Nickel Immersion Gold), OSP (Organic Solderability Preservative), Immersion Silver, Immersion Tin, and ENEPIG. For OSP-finished boards, the nitrogen atmosphere option is recommended to preserve solderability during the reflow process.
The R10 accommodates PCB thicknesses from 0.5mm to 6.0mm with the standard rail configuration. The 25mm top and bottom component height clearances provide ample space for mixed-technology assemblies with through-hole components on the top side. For applications with taller components, custom rail configurations are available upon request — please contact our sales team to discuss your specific requirements.
The R10 maintains ±1°C temperature accuracy across all 20 heating zones, verified during factory acceptance testing (FAT) with calibrated thermocouples. This accuracy is achieved through the combination of German Hotset heating elements (tight resistance tolerance), Jiale/Ruilai solid state relays (millisecond switching response), and Siemens PLC PID algorithms (continuously optimized control parameters).
Yes, the R10 is fully designed for lead-free soldering and is RoHS compliant. With a maximum temperature rating of 300°C, it comfortably handles SAC305 (Sn96.5/Ag3.0/Cu0.5) profiles with peak temperatures of 235-250°C, as well as higher-temperature lead-free alloys such as SN100C and SAC387. The 3,840mm preheating length and 20-zone architecture provide the thermal capacity and control precision needed for reliable lead-free reflow.
The R10 processes PCB widths up to 460mm with any board length, covering everything from small consumer electronics modules to large industrial control boards. Transport speed ranges from 300 to 2,000 mm/min with a mesh belt + guide rail chain system that handles rigid PCBs, aluminum substrates (LED), and mixed-technology assemblies with components up to 25mm on both sides.
Yes. The R10 is designed for double-sided PCB assembly where the bottom side is reflowed first and the top side second. The 1,260mm cooling section with 3 upper + 3 lower zones provides controlled solidification that keeps bottom-side components in place during the second pass. The transport system supports stable handling of populated boards, and recipes can be stored separately for each side.
Yes, the R10’s WIN10 industrial PC and Siemens PLC both support software updates. PLC firmware updates are provided by JHIMS to add features, improve temperature control algorithms, or address any identified issues. WIN10 PC software updates may include new user interface features, enhanced data logging capabilities, and improved MES integration. Updates are provided free of charge during the warranty period.
German Hotset heating elements in the R10 have an expected lifespan of 15,000-25,000 operating hours under normal conditions (approximately 5-8 years for a single-shift operation, or 2-3 years for 24/7 production). Lifespan depends on operating temperature, frequency of thermal cycling, and environmental conditions. Replacement elements are stocked and can be installed during scheduled maintenance.
The R10 uses hot air convection heating elements — the industry-preferred method for uniform heat transfer in reflow soldering. Forced hot air circulation distributes heat evenly across the board surface and into component shadows, avoiding the hot-spot and shadowing issues of infrared-only heating. Combined with the 20-zone architecture, convection heating delivers the thermal uniformity required for dense, mixed-technology assemblies.
The R10 uses PID closed-loop control with SSR (Solid State Relay) drive. Each of the 20 zones has its own temperature sensor feeding real-time data to the Siemens PLC, which continuously adjusts SSR output for millisecond-level response. This closed-loop architecture maintains ±1°C accuracy even under varying board loads, keeping every board on its programmed thermal profile.
Yes. The R10 records full production data with timestamps — zone temperatures, transport speed, recipe used, and board counts — stored on the WIN10 industrial PC. Data can be exported to CSV or integrated with MES/ERP systems via Ethernet, providing complete traceability for ISO 9001, IATF 16949, and ISO 13485 quality systems.
Yes. The R10 is a 10 zone reflow oven (20 heating zones total with 10 upper + 10 lower) engineered for lead-free SMT production. The 3,840mm preheat length, ±1°C accuracy, and 300°C temperature range comfortably handle SAC305 and other lead-free alloys, while the 30% energy saving keeps operating costs low — making it a cost-effective choice for mid-to-high-volume SMT lines.
🛡️ Warranty & After-Sales
Every JHIMS R10 reflow oven includes a standard 1-year comprehensive warranty covering all parts and labor for manufacturing defects. The warranty covers the PLC controller, heating elements, solid state relays, motors, bearings, conveyor system, electrical components, and the industrial PC. Extended warranty plans of 2 or 3 years are available at the time of purchase.
Yes. JHIMS provides on-site installation, commissioning, and operator training by JHIMS certified engineers — on-site service is available at a charge. Remote video training, documentation support and professional technical guidance are provided free of charge. Our standard package includes pre-installation consultation, complete system calibration, and operator training covering operation, profiling, and maintenance.
JHIMS provides multi-channel technical support: remote diagnostics via the R10’s Ethernet connection, WhatsApp/Telegram/Teams support for quick troubleshooting, email support with guaranteed first reply within 12 working hours (Mon–Sat, 09:00–23:00 China Standard Time, UTC+8), and on-site service visits for complex issues (available worldwide at a charge). A comprehensive online knowledge base with manuals, guides, and video tutorials is also available.
A standard R10 installation typically takes 3-5 working days from delivery to production-ready status: mechanical assembly, electrical connections, exhaust ducting, full calibration of all 20 heating zones, thermal profiling, operator training, and production trial runs. The timeline can be shorter for facilities with pre-prepared installation sites.
Yes, JHIMS maintains regional spare parts inventory in Asia, Europe, and the Americas for rapid delivery. Common wear items such as heating elements, SSR modules, conveyor belts, bearings, flux filters, and fans are stocked in quantity. For critical components, we offer recommended spare parts kits that can be kept on-site for immediate replacement.
Absolutely. JHIMS offers thermal profile optimization as part of our installation service and as an ongoing support option. Our application engineers can remotely review your current profiles using data exported from the R10, recommend adjustments for specific PCB designs and component mixes, and develop custom profiles for challenging assemblies such as heavy copper boards, ceramic substrates, and flex circuits.
Yes, JHIMS offers tiered preventative maintenance (PM) contracts: Basic (1 annual visit with full inspection and calibration), Standard (2 annual visits with full service, calibration, and priority support), and Premium (quarterly visits with full service, 24/7 priority support, and spare parts discount). All PM contracts include comprehensive machine inspection and heating element resistance measurement.
To request an on-site service visit, contact your designated JHIMS support engineer directly, call our service hotline at (86-755) 86700443, email [email protected] with “Service Visit Request” in the subject line, or use the contact form on this page. Provide your machine serial number, a description of the issue, and your preferred visit timeframe.
🚚 Shipping & Payment
The JHIMS R10 reflow oven is quoted per configuration (FOB Shenzhen). The final quotation depends on configuration options such as the nitrogen atmosphere option, custom rail widths, extended warranty, and destination shipping costs. For an exact quotation tailored to your requirements, please contact our sales team via WhatsApp, email, or the contact form.
The R10 ships in a custom wooden crate with approximate shipping dimensions of 6,800 × 1,650 × 1,800 mm. Gross shipping weight is approximately 2,900 kg including crate and accessories. Shipping method: FCL (Full Container Load) — the R10 fits in a 20-foot container. Air freight is available for urgent deliveries at additional cost.
Standard payment terms: 70% T/T deposit with the order, 30% T/T before shipment. Existing customers may use L/C (Letter of Credit) at sight. All prices are quoted in USD. Our sales team will provide complete wire transfer details and order confirmation documents after you place an inquiry.
Standard lead time for the JHIMS R10 is 25-35 working days from receipt of deposit to ready-for-shipment, including manufacturing, assembly, factory calibration, and burn-in testing. Shipping transit time (sea freight) varies by destination: 15-25 days to Asia Pacific ports, 25-35 days to European ports, 30-40 days to North American ports, and 35-50 days to South American or African ports.
For FOB (Free On Board) terms, the buyer is responsible for freight, insurance, customs clearance, and any import duties/taxes in the destination country. However, JHIMS provides full support by preparing all necessary export documentation, recommending trusted freight forwarders and customs brokers in your country, and providing HS code classification for the R10 to help you determine duty rates.
Absolutely! We encourage potential customers to visit our manufacturing facility in Shenzhen to see the R10 in production, witness live demonstrations, inspect build quality firsthand, meet our engineering team, and discuss your specific requirements face-to-face. Factory visits can typically be arranged within 1-2 weeks of request. We can assist with visa invitation letters and hotel recommendations.
Every R10 delivery includes: the complete R10 reflow oven fully assembled and tested, Siemens PLC with WIN10 industrial PC pre-loaded with software, standard accessories kit (thermocouple probes, flux filters, conveyor belt tracking tool), comprehensive documentation package (user manual, electrical schematics, maintenance guide, spare parts list), and the calibration certificate from factory acceptance testing.
JHIMS ships to over 30 countries worldwide and is constantly expanding. We have existing customers and shipping experience in China, India, Vietnam, Thailand, Malaysia, Indonesia, Philippines, South Korea, Japan, Turkey, Germany, Italy, France, UK, Poland, Czech Republic, Russia, Brazil, Mexico, USA, Egypt, South Africa, UAE, and many more. If your country is not listed, please contact us — we ship worldwide.
Yes, JHIMS offers PCB sample soldering services. You can send us your bare PCBs, components, and solder paste, and we will run them through an R10 at our factory, returning the soldered assemblies along with the thermal profile data used. This allows you to verify soldering quality on your actual products before committing to a purchase. Sample processing typically takes 3-5 working days from receipt.
The R10 is packaged in a custom-engineered fumigated wooden crate designed for international sea and air freight. Packaging includes heavy-duty plywood construction with internal steel reinforcement, VCI (Volatile Corrosion Inhibitor) bags and desiccant packs for moisture protection during ocean transit, foam padding and custom-cut supports for shock and vibration isolation, and tilt/impact indicators to verify handling integrity on arrival.
LEARNING CENTER
Knowledge Center — Expert Resources
Practical guides and real case studies about the JHIMS R10 — from daily operation to full line integration, written by JHIMS engineers.
Reference videos: How to Install Reflow Soldering Machine – Step-by-Step Tutorial & Safety Guide | Part 1; Complete Reflow Oven Setup Guide for PCB Assembly | Installation & Training Tutorial | Part 2; Step-by-Step Reflow Soldering Machine Installation | PCB SMT Training Video | Part 3.
| Weight | 2900 kg |
|---|---|
| Dimensions | 6800 × 1650 × 1800 mm |
| Power Supply | 5-wire 3-phase; 380V 50/60Hz |
| Startup Power | 45 KW |
| Normal Operating Power | 11 – 13 KW |
| Temperature Range | Room temp to 300°C |
| Max PCB Width | 460 mm |
| Heating Zones | 10 upper + 10 lower (20 total) |
| Cooling Zones | 3 upper + 3 lower (6 total) |
| Temperature Accuracy | ±1°C |
| Warranty | 1 Year standard (extendable) |
