YAMAHA YSM20R High-Speed Modular Mounter
Request a quote
YSM20R — High-Speed Modular Mounter
95,000 CPH±0.035mm Accuracy0201–55×100mm140 FeederssATS30NS Nonstop
- ⚡ 95,000 CPH (Type PV) — one YSM20R-2 replaces two legacy machines
- 🎯 ±0.035mm accuracy · 0201 to 55×100mm components · FM head to 28mm
- 🏭 YAMAHA YSM platform · THK · SMC · ISO 9001 · CE compliant
PICK AND PLACE MACHINE
JHIMS YSM20R High-Speed Modular Mounter
95,000 CPH true throughput, ±0.035mm precision, 0201 to 55×100mm component range. The YSM20R is Yamaha’s flagship high-end modular pick-and-place platform — authorized distribution, factory-direct pricing, global after-sales support.
ISO 9001 Certified
CE Compliant
Serving 2,456+ Clients in 30+ Countries
36 R&D Engineers
Est. 2012 — 12+ Years of Excellence
Automotive Tier-1 Supplier
Medical Device Manufacturer
Consumer Electronics OEM
Industrial Automation Leader
LED Lighting Manufacturer
Medical Device Manufacturer
Consumer Electronics OEM
Industrial Automation Leader
LED Lighting Manufacturer
Explore JHIMS Solutions: Learn more about SMT assembly equipment and PCBA manufacturing solutions. Looking for specific applications? Discover our expertise in pick and place machines and reflow ovens for complete SMT line integration.
Pain Points & JHIMS Solutions
Common High-Speed Placement Challenges
- Slow placement speeds (sub-50K CPH) bottlenecking entire SMT lines and limiting monthly PCB output
- Frequent component pickup errors causing excessive nozzle wear, feeder jams, and unplanned downtime
- Limited component size range forcing manufacturers to invest in multiple specialized machines
- Long product changeover times (30-60 min) between high-mix PCB batches, killing overall equipment effectiveness
- Inconsistent placement accuracy causing rework on fine-pitch QFP and micro-BGA assemblies
- Inability to handle both ultra-small 0201 chips and large 55×100mm connectors on a single platform
- High energy costs from older machines consuming 3x more power than modern modular designs
Yamaha YSM20R Automation Solutions
- 95,000 CPH (Type PV) true throughput — one YSM20R-2 replaces two legacy machines, cutting floor space by 50%
- sATS30NS nonstop feeder exchange system eliminates production stoppage during component reload — zero downtime
- 0201 to 55×100mm range with HM and FM head options — handle ultra-fine chips, QFPs, BGAs, and odd-form connectors on ONE machine
- Under 30-second product changeover with 128-feeder exchange carriage and automatic program recall
- ±0.035mm (±0.025mm) Cpk≥1.0 precision for both CHIP and QFP — first-pass yield over 99.95% on fine-pitch assemblies
- Dual-head HM×2 configuration with independent Z-axis control — simultaneous pickup of different component sizes
- Average power consumption of only 1.9kW — industry-leading energy efficiency in its class
Product Overview — YSM20R High-Speed Modular Mounter
The YAMAHA YSM20R pick and place machine is Yamaha’s flagship high-speed SMT mounter, purpose-built for ultra-high-speed, high-mix PCB assembly. As an authorized Yamaha distributor, JHIMS delivers factory-direct pricing with full technical support, installation, and warranty coverage worldwide. The YSM20R-2 dual-beam configuration achieves 95,000 CPH (Type PV) true throughput using twin High-Speed Multi (HM) heads. 95,000 CPH (Type PV) with ±0.035mm (±0.025mm) Cpk ≥ 1.0 accuracy, 0201 to 55×100mm component range (FM head up to 28mm height), and 1.9kW average power consumption — the most energy-efficient YSM20R mounter in its speed class.
Built by YAMAHA with THK linear guides, NSK/NACHI precision bearings, SMC pneumatics, Panasonic sensors, Keyence/OMRON vision components and TOYOGIKEN power terminals for 24/7 industrial reliability.
Applications: Consumer electronics, automotive electronics, medical devices, industrial automation, new energy & BMS, LED lighting & display, telecom & 5G, and home appliance SMT assembly.
Key Features of the YSM20R High-Speed Mounter
⚡
95,000 CPH True Throughput
0.038 sec/CHIP placement speed with twin HM heads on X-axis dual-beam configuration. Yamaha optimal conditions verified. Optional sATS30NS nonstop feeder exchange eliminates production stoppage — continuous 24/7 operation without component reload downtime.
🎯
±0.035mm High Precision
Industry-leading ±0.035mm (±0.025mm) Cpk≥1.0 (3σ) accuracy for both CHIP and QFP components. Achieved through Yamaha’s proprietary rigid frame design, high-resolution servo control, and advanced vision alignment. Consistent first-pass yield exceeding 99.95%.
🧩
Dual-Head Versatility (HM + FM)
High-Speed Multi (HM) head for 0201-55×100mm components up to 15mm height. Optional Flexible Multi (FM) head extends to 28mm height for tall connectors and odd-form parts. Mix heads on a single machine for maximum flexibility.
📦
140-Type Feeder Capacity
Up to 140 feeder types on fixed plates (8mm tape equivalent) or 128 types on exchange carriages. Supports 30-tray sATS30 fixed auto-tray supply and 10-tray cATS10 carriage-type tray supply unit. Handles tape, stick, and tray components simultaneously.
👁
Advanced Multi-Camera Vision
Scan camera for high-speed on-the-fly recognition. Multi-view camera with optional coplanarity detection for BGA/CSP ball inspection. Fiducial camera (8×8mm FOV) for board mark alignment. Side-view camera for lead coplanarity verification.
🔃
Sub-30s Product Changeover
32-feeder exchange carriages on all four sides with automatic program recall. Single-operator changeover in under 30 seconds — no tools required. 128-feeder bank supports over 12,800 placement points and 255 component types per board.
🔌
1.9kW Ultra-Low Power
Average power consumption of only 1.9kW (10.4kVA capacity) — the most energy-efficient mounter in its speed class. 3-phase AC 200-416V global voltage compatibility. Conforms to EU Machinery Directive 2006/42/EC and EMC Directive 2014/30/EU (CE marking).
🌐
Smart Factory Ready
GATE, Advanced GATE, Advanced GATE 2, and SMEMA machine-to-machine signal compatibility for seamless line integration. Works with Yamaha Y.FacT / P-Tool SMT line support software for tact simulation, production planning, and real-time monitoring.
Technical Specifications — YSM20R
All specifications sourced from Yamaha official technical documentation: SJBMK18100-01 / ZLEX_YSM20R_CN / SESMK18400-00 v2.001.
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Model Code (2-beam) | KMK-000 | KMK-500 | — |
| Model Code (1-beam) | KMK-100 | KMK-600 | — |
| Mounting Speed (HM×2) | 95,000 CPH | 90,000 CPH | 80,000 CPH |
| Cycle Time per CHIP | 0.038 sec | 0.040 sec | — |
| Mounting Accuracy | ±0.035mm (±0.025mm) Cpk ≥ 1.0 (3σ) — for both CHIP and QFP | ||
| Component Range (HM Head) | 0201 to W55×L100mm, H≤15mm | 03015 to W55×L100mm, H≤15mm | Same as TypeSV |
| Component Range (FM Head) | 03015 to W55×L100mm, H≤28mm | ||
| sATS30NS Nonstop Feeder | Compatible | Not Compatible | — |
| Scan Camera | □12 mm | □8 mm | — |
| External Dimensions | L1,374×W1,857×H1,445mm | Same | L1,374×W2,110×H1,445mm |
| Weight (2-beam) | Approx. 2,050kg | Type SV | Approx. 2,500kg |
| Weight (1-beam) | Approx. 1,950kg | Type SV | — |
| Noise Level | 78 dB(A) or less | ||
| Max PCB (L-size) | L810×W490mm (Single Lane) | Max PCB (M-size) | L360×W490mm |
| Dual-Stage Transport | 1PCB: L810×W490 / 2PCB: L380×W490 | Min PCB | L50×W50mm |
| Transport Height | 900mm ±10mm | Transport Speed | 50–500mm/sec |
| Placement Points | 12,800 points max | Component Types | 255 types/board |
| Fiducial Marks | 128 marks/board | PCB Data Capacity | 100 MB/machine |
| Positioning Resolution | X/Y/Z: 0.001mm / R: 0.001° | Feeder Capacity (Fixed) | Max. 140 types (8mm equivalent) |
| Feeder Capacity (Exchange) | Max. 128 types (8mm equivalent) | Auto Tray (Fixed/sATS30) | Max. 30 layers |
| Auto Tray (Carriage/cATS10) | Max. 10 layers (KLX-000/100) | cATS10 Dimensions | L480×W870×H1,150mm / 160kg |
| Power Supply | 3-Phase AC 200/208/220/240/380/400/416V ±10%, 50/60Hz | Power Capacity | 10.4kVA |
| Average Power Consumption | 1.9kW (typical) | Wire Terminal | TOYOGIKEN FPS-80 (M5 bolt) |
| Air Supply | 0.45MPa+, clean & dry | Air Consumption (HM×2) | 240 L/min avg / 340 L/min max [ANR] |
| Operating Temperature | 15–35°C (accuracy: 20–28°C) | Operating Humidity | 20–80% (optimal: 50–60%) |
| Altitude | ≤1,000m | Floor Load | Approx. 850 kg/m² |
| Chip (Square/Cylindrical/Transistor) | 0.2×0.1mm to 12×12mm | Type SV | N/A |
| SOP, SOJ, QFP (Small) | 5×4.5mm to 20×20mm | Type SV | Pitch ≥ 0.4mm (0.22mm gap / 0.18mm lead) |
| SOP, SOJ, QFP (Medium) | 20×20mm to 32×32mm | Type SV | Pitch ≥ 0.5mm (0.28mm gap / 0.22mm lead) |
| SOP, SOJ, QFP (Large) | 32×32mm to 55×55mm | Type SV | Pitch ≥ 0.65mm (0.35mm gap / 0.30mm lead) |
| BGA / CSP (Small) | Up to 20×20mm | Type SV | Ball Ø ≥ 0.18mm / Pitch ≥ 0.3mm |
| BGA / CSP (Medium) | 20×20mm to 32×32mm | Type SV | Ball Ø ≥ 0.22mm / Pitch ≥ 0.37mm |
| BGA / CSP (Large) | 32×32mm to 55×55mm | Type SV | Ball Ø ≥ 0.30mm / Pitch ≥ 0.5mm |
| Odd-Form (Connectors, etc.) | Up to 55×100mm | Type SV | Consult JHIMS per component |
Machine Configuration — Premium Global Components
Every YAMAHA YSM20R is built with world-class components from leading global brands.
YAMAHA
🇯🇵 Japan
Servo Motors & Motion Control
THK
🇯🇵 Japan
Linear Guides & Ball Screws
NSK / NACHI
🇯🇵 Japan
Precision Bearings
SMC
🇯🇵 Japan
Pneumatic Cylinders & Valves
Panasonic
🇯🇵 Japan
Industrial Sensors
Keyence / OMRON
🇯🇵 Japan
Vision & Optical Sensors
YAMAHA Robotics
🇯🇵 Japan
X/Y/Z/W/R/PU Axis Servo Drives
TOYOGIKEN
🇯🇵 Japan
Power Terminal Blocks (FPS-80)
Applications & Industries
The YAMAHA YSM20R is deployed across mission-critical electronics manufacturing sectors worldwide.
📱
Consumer Electronics
🚗
Automotive Electronics
🏥
Medical Devices
🏭
Industrial Automation
🔋
New Energy & BMS
💡
LED Lighting & Display
📡
Telecom & 5G
🏠
Home Appliances
Industry Solutions & Technical Guides
Industry-Specific SMT Placement Solutions
Automotive Electronics
ECUs, BMS controllers, ADAS sensor boards, and infotainment systems demand ISO/TS 16949 traceability and zero-defect manufacturing. The YSM20R’s ±0.035mm accuracy and sATS30NS nonstop feeder system ensure 24/7 production with component-level traceability. Handles everything from 0201 passives on dense ECU boards to large connectors on body control modules.
Medical Devices
Implantable device controllers, diagnostic equipment, and patient monitors require ISO 13485 compliance. The YSM20R’s multi-view camera with coplanarity detection ensures every BGA ball is seated perfectly. Smart Recognition verifies component polarity and orientation in real time, critical for life-safety electronics.
Consumer Electronics
Smartphones, tablets, wearables, and IoT devices demand extreme miniaturization and high-volume throughput. The Type PV configuration handles 0201 chips at 95,000 CPH. Dual-stage PCB transport allows simultaneous processing of two different board types without stopping the line.
Industrial & New Energy
Power inverters, motor drives, solar charge controllers, and BMS boards feature large components, thick PCBs, and high-current traces. The FM head handles components up to 55×100mm and 28mm height with precise force control.
LED Lighting & Display
High-density LED boards require placing thousands of identical components with zero defects. The YSM20W wide version handles panels up to 742mm width, while the HM head’s scan camera inspects every LED placement in real time.
Telecom & 5G Infrastructure
Base station boards, RF modules, and networking equipment combine large PCB sizes with mixed component technologies. The YSM20R’s 255 component types per board and 12,800 placement points handle even the most complex 5G PCB assemblies.
Pick & Place Technology Guide
Understanding CPH: Real vs. Theoretical
CPH ratings are based on Yamaha optimal conditions. Real-world CPH depends on PCB complexity, component mix, and board load/unload time. The Type PV achieves 95,000 CPH. Use Y.FacT/P-Tool software for accurate production estimates with your specific PCBs.
Vision Systems: Scan vs. Multi-View Camera
The scan camera performs high-speed on-the-fly recognition during head movement — ideal for chips up to 12mm (PV) or 8mm (SV). The multi-view camera provides stationary multi-angle imaging for larger components, BGA ball inspection, and coplanarity verification.
Feeder Technology: Tape, Stick & Tray
Yamaha’s feeder ecosystem supports 8mm to 56mm tape widths. The sATS30NS (Type PV only) enables nonstop splicing. The cATS10 tray changer holds 10 trays. Stick feeders handle tube-packaged components. The exchange carriage system enables complete feeder bank swaps in under 30 seconds.
Accuracy & Cpk: What the Numbers Mean
Cpk (Process Capability Index) ≥ 1.0 means the placement distribution is at least 3σ within the tolerance band. The YSM20R achieves ±0.035mm at Cpk 1.0 and ±0.025mm under optimal conditions — verified with Yamaha standard evaluation components.
SMT Line Manufacturing Guide
Line Balancing & Takt Time
A balanced SMT line ensures the bottleneck is never at placement. With 95,000 CPH, the YSM20R typically sets the takt time. Upstream: ensure your stencil printer cycle time matches. Downstream: match reflow oven throughput. Yamaha Y.FacT simulates full-line performance before equipment purchase.
Facility Requirements
Floor space: ~2.6m² for the main unit (L1,374×W1,857mm), plus service clearance (1m front/rear, 0.5m sides). Floor load: ≥ 850 kg/m². Power: dedicated 3-phase circuit. Air: 0.45MPa+, 8mm+ ID supply line with dryer and filter. Operating environment: 20–28°C, 50–60% RH recommended.
Preventive Maintenance Schedule
Weekly: Nozzle inspection and cleaning. Monthly: X-axis ball screw grease, guide lubrication. Quarterly: Air filter replacement, FM head ball screw lubrication. Semi-Annually: All camera lighting unit cleaning. Annually: Spline shaft cleaning, conveyor belt inspection, controller filter replacement.
Operator Training Requirements
Basic operation: 3-day training covering startup/shutdown, program loading, feeder setup, and basics. Advanced programming: 2-day P-Tool and database management. Maintenance certification: 2-day hands-on training for in-house staff. All training provided by JHIMS engineers — on-site or at our Shenzhen demo center.
Production Workflow — YSM20R in Your SMT Line
See exactly where the YAMAHA YSM20R fits in your PCB assembly process and how it integrates with upstream and downstream equipment.
📥
PCB Loader
Auto board loading
→
🖨️
Stencil Printer
JHIMS L5 / Yamaha YSP
→
🔍
SPI Inspection
Pre-reflow AOI
→
⚡
YSM20R
▶ High-Speed Mounter ◀
→
🔥
Reflow Oven
10+ zone reflow
→
🔎
AOI Inspection
Post-reflow AOI
→
📨
PCB Unloader
Auto board unloading
Legacy Placement vs. YSM20R High-Speed Mounter
| Metric | Manual Placement | YSM20R-2 Type PV | Advantage |
|---|---|---|---|
| Placement Speed | ~800 CPH/operator | ~8,000 CPH | 95,000 CPH (×119 vs manual) |
| Placement Accuracy | ±0.2mm (operator-dependent) | ±0.1mm | ±0.035mm (Cpk≥1.0) |
| Component Range | 0603+ (limited by tweezer) | 0402+ | 0201 to 55×100mm |
| Operators Required | 1 per station (×120 stations to match) | 2–3 per machine | 1 operator for entire machine |
| Monthly Output (8h×26d) | ~166K placements | ~1.66M placements | ~19.76M placements (×119 vs manual) |
| Annual Labor Cost (est.) | $600K+ (120 operators) | $180K+ (3 operators × 10 machines) | ~$12K (1 operator) |
| Defect Rate | 2–5% typical | 0.5–1% typical | <0.05% (first-pass) |
| Changeover Time | 10–15 min | 15–30 min | <30 sec (feeder carriage swap) |
Based on real-world production data from electronics manufacturers using the YSM20R. Actual results may vary by application.
ROI Calculator — See Your Payback Period
Based on the quotation we prepare for your YSM20R. Enter your current production parameters to calculate how quickly the YSM20R pays for itself.
Product Gallery — See the YSM20R in Detail

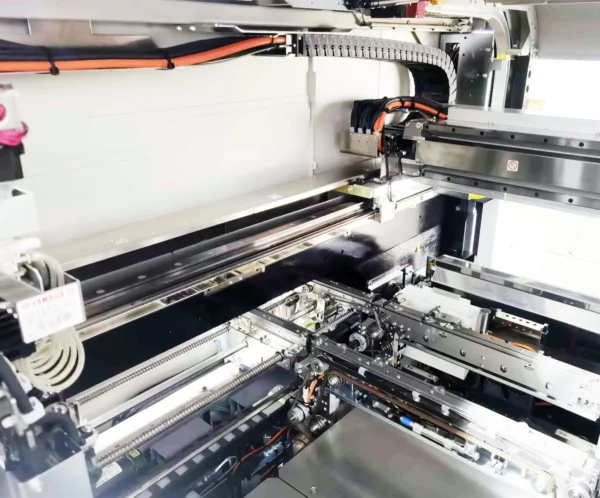

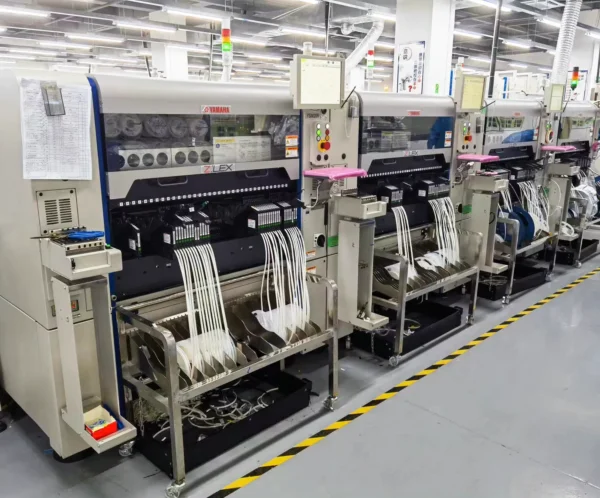

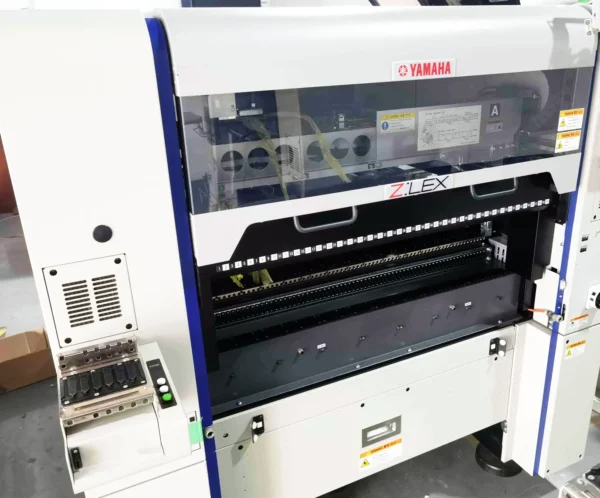

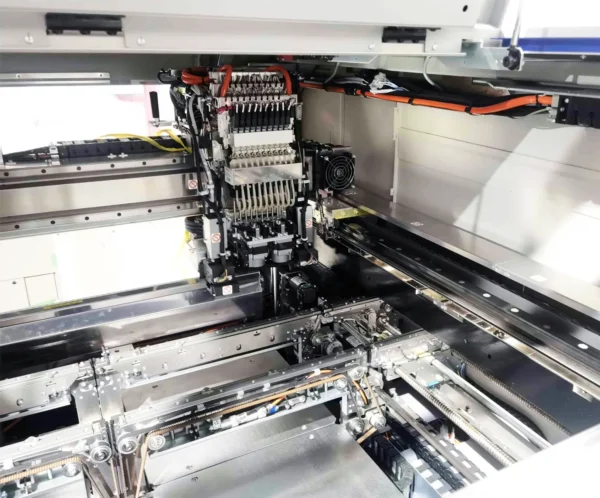

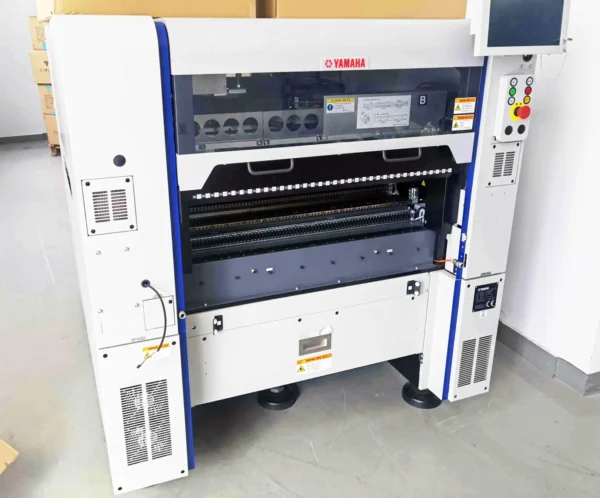

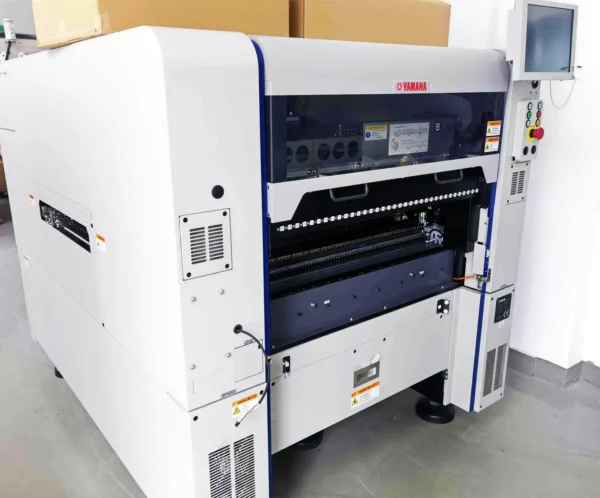

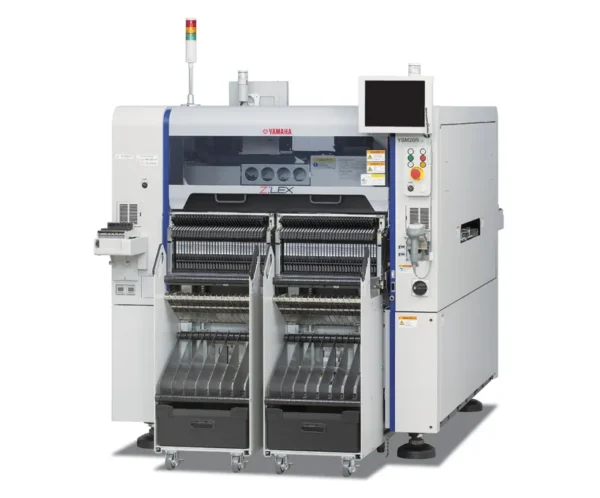

The YAMAHA YSM20R: high-speed mounter, PCB conveyor unit, internal structure and production line integration.
Product Videos — See the YSM20R in Action
Watch the YAMAHA YSM20R performing real-world placement tasks. All videos are hosted on YouTube for fast, reliable streaming worldwide.
Yamaha Pick and Place Machines — YSM20R Overview (JHIMS)
YSM20R & YSM10 YAMAHA Pick and Place Machine — Production
How to Buy a Yamaha Pick and Place Machine at Minimal Cost
CUSTOMER SUCCESS STORIES
Trusted by SMT Factories Worldwide
Real deployments of the Yamaha YSM20R across Europe and China — LED manufacturing, high-speed PCB assembly and SMT line turnkey projects. Every machine shipped, installed and supported by the JHIMS team.
LED MANUFACTURING4 YSM20R Machines for a Spanish LED Maker
JHIMS supplied 4 used Yamaha YSM20R machines plus feeders, nozzles and tray carts to a Spanish LED manufacturer — 2 years of production with zero breakdowns and +30% output.
4YSM20R Machines
0Breakdowns / 2 Yrs
+30%Output
95K CPH LINES95K CPH SMT Lines in Changsha
A Changsha OEM built 4 complete SMT lines with YSM20R, YSM10, YS24 and YS12 mounters plus SPI and reflow — 95,000 CPH per line with 99.5% yield.
95KCPH per Line
4Complete Lines
99.5%Yield
SMT EFFICIENCYShenzhen SMT Efficiency Upgrade
A Shenzhen contract manufacturer reached 95K CPH with a refurbished YSM20R from JHIMS — 30% efficiency gain, 37.5% cycle time cut and 7-month ROI.
95KCPH Achieved
-37.5%Cycle Time
7 MoPayback
LED PRODUCTIONThird YSM20R for Spanish LED Production
A Spanish LED display maker added a third used YSM20R from JHIMS — CPK-tested reliability, 95K CPH capability and a 30% efficiency boost across the line.
3rdYSM20R Added
95KCPH Capability
+30%Efficiency
Frequently Asked Questions
🔧 Technical Questions
The YSM20R-2 Type PV achieves 95,000 CPH (0.038 sec/CHIP) under Yamaha optimal conditions with twin HM heads. Type SV achieves 90,000 CPH. Real-world CPH depends on your specific PCB design, component mix, and board transport time.
HM head (Type PV): 0201 to 55×100mm, up to 15mm height. HM head (Type SV): 03015 to 55×100mm, up to 15mm height. FM head: 03015 to 55×100mm, up to 28mm height. Handles chips, SOP/SOJ/QFP up to 55×55mm (min 0.4mm pitch), BGA/CSP (min ball Ø0.18mm, min pitch 0.3mm), and odd-form connectors up to 55×100mm.
±0.035mm (±0.025mm) with Cpk ≥ 1.0 (3σ) for both CHIP and QFP components, verified under Yamaha optimal conditions using standard evaluation components, test boards, and two-faced adhesive tape. Translates to first-pass yield exceeding 99.95% for fine-pitch assemblies.
Type PV (KMK-000/100) is the premium variant: 95,000 CPH, 0201 minimum component, □12mm scan camera, sATS30NS compatible. Type SV (KMK-500/600) is the value variant: 90,000 CPH, 03015 minimum component, □8mm scan camera, no sATS30NS. Both share the same ±0.035mm accuracy and FM head options.
Fixed feeder plates: up to 140 types (8mm tape equivalent). Exchange feeder carriages: up to 128 types. sATS30 fixed auto-tray: up to 30 trays. cATS10 carriage-type tray: up to 10 trays. The F64/64 configuration provides 128 feeders across four exchange carriages.
Single lane: L50×W50mm (min) to L810×W490mm (max). YSM20R-1 also supports M-size boards up to L360×W490mm. Dual-stage transport: 1 PCB at L810×W490mm or 2 PCBs at L380×W490mm each. Transport height: 900±10mm.
3-phase AC 200/208/220/240/380/400/416V ±10%, 50/60Hz. Power capacity: 10.4kVA with average consumption of 1.9kW. Uses TOYOGIKEN FPS-80 terminal (M5 bolt). Conductor cross-section: 6mm² or larger.
0.45 MPa (4.5 kgf/cm²) or higher, clean and dry. Supply pipe inner diameter: 8mm or larger. Set pressure: 0.40 MPa. Air consumption with HM head × 2: 240 L/min average, 340 L/min maximum [ANR]. Air source must pass through dryer and filter.
Four vision systems: (1) Fiducial Camera — 8×8mm FOV for board mark detection; (2) Scan Camera — □12mm (PV) or □8mm (SV) for high-speed on-the-fly recognition; (3) Multi-view Camera — optional on HM, standard on FM, with coplanarity detection for BGA ball inspection; (4) Side-view Camera — for lead coplanarity verification.
The sATS30NS (Non-Stop) is an automatic tray supply unit compatible with YSM20R Type PV only. It allows continuous production without stopping for component replenishment. Holds up to 30 trays. Ideal for 24/7 production where any stoppage represents significant revenue loss.
🛡️ Warranty & After-Sales
JHIMS provides a standard warranty covering manufacturing defects. The warranty period and terms are detailed in your purchase agreement. Yamaha’s standard warranty terms are referenced in SESMK18400-00 §9. Extended warranty packages are available.
Weekly: nozzle inspection/cleaning, multi-camera glass cleaning. Monthly: X-axis ball screw greasing, X/Y-axis guide lubrication. Quarterly: air filter replacement, FM head ball screw lubrication, PU axis maintenance. Semi-Annually: all camera lighting unit cleaning. Annually: spline shaft cleaning (HM/FM head), conveyor belt inspection, guide cleaning, W-axis lubrication, controller filter replacement.
Yes. JHIMS provides on-site installation, commissioning, and operator training by JHIMS certified engineers — on-site service is available at a charge. Remote video training, documentation support and professional technical guidance are provided free of charge. Typical on-site scope: installation and commissioning (2-3 days), basic operator training (3 days), advanced P-Tool programming (2 days), and maintenance certification (2 days) by JHIMS certified engineers.
JHIMS maintains a comprehensive spare parts inventory at our Shenzhen headquarters. Critical parts ship via DHL/FedEx express, typically 3-7 business days. We recommend purchasing a preventive maintenance spare parts kit with your machine.
Support available via: phone (86-755) 86700443, WhatsApp, Telegram (@jinghe_tech), Microsoft Teams ([email protected]), email ([email protected]), and phone (Mon-Sat, 09:00-23:00 China Standard Time (UTC+8)). First reply typically within 12 working hours (Mon–Sat, 09:00–23:00 China Standard Time, UTC+8); a stopped line is picked up 24/7 on WhatsApp.
Absolutely. Visit our Shenzhen demo center to see the YSM20R running. We can also arrange visits to existing customer sites in your region (subject to customer approval). Contact us to schedule.
Based on Yamaha’s track record with previous-generation machines, parts and service availability is expected for at least 10-15 years. JHIMS stocks a comprehensive inventory of genuine Yamaha spare parts. Extended service contracts are available.
Yes. Conforms to EU Machinery Directive 2006/42/EC and EMC Directive 2014/30/EU (CE marking). Built-in emergency stop systems on front/rear consoles, safety covers with mechanical switches, and comprehensive error detection systems. Note: CE marking may not apply to special-order items with custom specifications.
🚚 Shipping & Payment
Main unit: L1,374×W1,857×H1,445mm, approx. 2,050kg (2-beam) or 1,950kg (1-beam). Additional: 32-feeder exchange carriage (70kg), cATS10 tray unit (160kg), sATS30 tray unit (250kg), sATS30NS (290kg). Complete shipping dimensions provided in your quotation.
T/T (Telegraphic Transfer) is the primary method. Standard payment terms: 70% T/T deposit with the order, 30% T/T before shipment. Existing customers may use L/C (Letter of Credit) at sight. Contact sales for terms tailored to your order and region.
Standard: 4-8 weeks (factory production + pre-delivery inspection + export packaging + ocean freight). Air freight available for urgent orders. Ocean transit: 2-5 weeks depending on destination. We provide regular shipping status updates throughout the process.
Yes. JHIMS provides commercial invoice, packing list, bill of lading/airway bill, certificate of origin, and any required compliance certificates. We work with experienced freight forwarders who can assist with destination customs clearance. DDP (Delivered Duty Paid) shipping available upon request for certain countries.
Standard: main machine unit, standard accessories (operation manual, tool kit, maintenance kit), feeder configuration as specified, HM head(s), scan camera, fiducial camera, standard P-Tool basic license, and JHIMS inspection certificate. Optional items (FM head, sATS30NS, cATS10, multi-view camera, additional feeders, spare parts kit) must be specified in your order.
Custom-fabricated wooden crate with vibration-dampening foam and vapor-phase corrosion inhibitor (VCI) packaging. All moving axes mechanically locked. Tilt and shock indicator attached for transit condition verification. Suitable for both ocean freight (containerized) and air freight.
The YSM20R is a high-speed SMT pick and place machine used to place surface-mount components onto PCBs at high speed and accuracy for electronics assembly.
The YSM20R delivers high placement accuracy with a hybrid vision system, meeting the requirements of fine-pitch and high-density PCB assembly.
The YSM20R handles components from ultra-small 0201 chips to large connectors, with flexible nozzle and feeder configurations.
Program via the intuitive software interface with CAD data import, component library management, and automatic optimization of placement sequence.
The YSM20R supports a wide range of feeders including tape, tray, and stick feeders, plus the sATS30NS nonstop feeder system for continuous production.
The YSM20R places thousands of components per hour with consistent accuracy, replacing manual placement which is 10-20x slower with higher error rates.
LEARNING CENTER
Knowledge Center — Expert Resources
Practical guides, case studies and reference material about the YSM20R pick and place machine, written by JHIMS engineers — from procurement strategy to production troubleshooting.
Reference videos: Las máquinas pick and place Yamaha en pocas palabras ｜Yamaha pick and place machine#ysm20r #ysm10; ysm20r ysm10 YAMAHA Pick and Place Machine| ysm10 YS12 YS24 Máquina pick and place de alta velocidad; How to buy Yamaha pick and place machine for minimal cost – jhims.
| Weight | 2050 kg |
|---|---|
| Dimensions | 1374 × 1857 × 1445 mm |
| Mounting Speed | 95,000 CPH |
| Min Component | 0201 |
| Chip | 0.2×0.1mm to 12×12mm |
| Min PCB | L50×W50mm |
| Max PCB | L810×W490mm |
| Feeder Capacity (Fixed) | Max. 140 types (8mm equivalent) |
| Auto Tray | Max. 30 layers |
| Average Power Consumption | 1.9kW (typical) |
