YRM20 — High-Speed Modular Mounter
115,000 CPH±0.025mm Accuracy0201–55×100mm128 Feeder TypeseATS30 Nonstop
- ⚡ 115,000 CPH (2-beam RM head) — one YRM20 replaces multiple legacy machines
- 🎯 ±0.025mm Cpk≥1.0 high-accuracy mode · 0201 to 55×100mm · FM head to 30mm
- 🧩 1-head solution: RM + HM + FM on one platform — no head replacement
- 🏭 YAMAHA YRM platform · Σ servo · ISO 9001 · Authorized Yamaha distributor
PICK AND PLACE MACHINE
JHIMS YRM20 High-Speed Modular Mounter
115,000 CPH class-leading placement speed, ±0.025mm precision and a 1-head solution covering 0201 to 55×100mm components up to 30mm tall. Supplied by JHIMS as an authorized Yamaha distributor — factory-direct pricing with worldwide installation and after-sales support.
ISO 9001 Certified
CE Compliant
Serving 2,456+ Clients in 30+ Countries
36 R&D Engineers
Est. 2012 — 12+ Years of Excellence
Automotive Tier-1 Supplier
Medical Device Manufacturer
Consumer Electronics OEM
Industrial Automation Leader
LED Lighting Manufacturer
Medical Device Manufacturer
Consumer Electronics OEM
Industrial Automation Leader
LED Lighting Manufacturer
Explore JHIMS SMT Solutions: Browse the full SMT assembly equipment lineup and PCBA manufacturing solutions. Building a high-speed placement cell? Compare pick and place machines and pair the YRM20 with a reflow oven for a complete SMT line.
Pain Points & JHIMS Solutions
Common High-Speed Placement Challenges
- Placement speed below 115K CPH bottlenecking high-volume consumer, LED and automotive lines
- Head changeover downtime when the product mix spans tiny 0201 chips to 55×100mm connectors
- Single-lane machines leaving half the line idle on mixed-lot, high-mix production
- Tray component replenishment forcing line stops during 24/7 continuous runs
- Accuracy drift on fine-pitch micro-BGA and densely packed LED boards
- Nozzle eccentricity and feeder wear silently degrading placement quality
- Tall odd-shaped components up to 30mm requiring a separate placement platform
Yamaha YRM20 Automation Solutions
- 115,000 CPH (2-beam RM head) — one YRM20 replaces multiple legacy machines and cuts floor space
- 1-head solution: RM / HM / FM heads on one platform — 0201 to 55×100mm, up to 30mm height, no head replacement
- Dual-stage conveyor: 2-PCB (L380×W510) or 1-PCB up to L810×W510 — flexible mixed-lot operation
- eATS30 non-stop tray feeder (30 pallets) plus auto loading feeder — zero-stop component replenishment
- ±0.025mm Cpk≥1.0 high-accuracy mode with low-impact nozzle — first-pass yield on fine-pitch assemblies
- Nozzle and feeder maintenance warnings with self-diagnosis and self-recovery — quality never drifts
- SEMI SMT-ELS compatible (option) — seamless smart-factory line integration with other vendors’ machines
Product Overview — YRM20 High-Speed Modular Mounter
The YAMAHA YRM20 pick and place machine is the flagship of Yamaha’s new YRM platform — a premium high-efficiency YRM20 mounter that fuses proven YS-series technology with the advanced Σ (Sigma) servo and control architecture. As an authorized Yamaha distributor, JHIMS delivers the YRM20 with factory-direct pricing, full installation, training and worldwide after-sales support.
The YRM20 carries the 1-head solution to its ultimate stage: the super high-speed rotary RM head places 0201 chips at 115,000 CPH while still handling medium odd-shaped parts up to 12×12mm; the high-speed general-purpose HM head spans 0201 to 55×100mm; and the odd-form FM head handles the largest connectors and tall components up to 30mm with force control. No head replacement, no compromise. A dual-stage conveyor takes boards up to L810×W510mm, and the eATS30 non-stop tray feeder keeps 30 pallets in continuous supply.
Applications: Consumer electronics, automotive electronics, medical devices, LED lighting & display, new energy & BMS, industrial automation, telecom & 5G, and EMS contract manufacturing.
Key Features of the YRM20 High-Speed Mounter
⚡
115,000 CPH Super-High-Speed RM Head
The new rotary RM head (18 nozzles) delivers 115,000 CPH on the 2-beam configuration — the fastest in its class. It maintains high-speed production without head replacement, handling super-tiny 0201 chips through medium odd-shaped components up to 12×12mm at 6.5mm height.
🎯
±0.025mm High-Accuracy Mode
±0.025mm Cpk≥1.0 (high-accuracy mode) verified under Yamaha optimum conditions. Low-impact lightweight nozzles are standard equipment, ensuring gentle, high-quality mounting of super-tiny components packed in narrow spaces — with nozzle IDs for simplified maintenance.
🧩
1-Head Solution: RM + HM + FM
One YRM20 covers the entire component spectrum: RM head (0201 to 12×12mm), HM head (0201 to 55×100mm, 15mm height) and FM head (03015 to 55×100mm, 30mm height, force control). Head combinations are selectable per beam — 1-beam or 2-beam common platform.
📦
Dual-Stage Conveyor, W=510mm
Yamaha’s in-machine 2-division mounting conveys 2 PCBs (L380×W510) at once, or a single board up to L810×W510mm. High-speed PCB conveying dramatically cuts board changeover time and lifts efficiency on high-mix production.
🛡️
eATS30 Non-Stop Tray Feeder
The large-capacity eATS30 stores up to 30 pallets and supplies tray components without stopping the machine — streamlined refilling and non-stop production. The compact cATS10R (10 stages) saves floor space, and the ZSR feeder pushes component transfer speed for the RM head.
👁️
Vision Systems for Mounting Quality
A side-view camera photographs pickup state to detect dropped, tilted or flipped components. Optional coplanarity checker verifies BGA/CSP ball coplanarity; the optional All ImageTracer saves every component recognition image for defect analysis and traceability.
🔧
Nozzle & Feeder Maintenance Warnings
Self-diagnosis and self-recovery functions keep nozzles and feeders clean: correct nozzle eccentricity, buffer spring check, nozzle air pressure check and visual inspection — with automatic spare-nozzle exchange and production continuation.
🌐
SEMI SMT-ELS & Smart Factory Ready
Compatible with SEMI SMT-ELS communication standards (option) for seamless connection such as Auto Program Change-Over with other vendors’ machines. Automatic push-up pin positioning reduces changeover workload and supports unattended program switching.
Technical Specifications — YRM20
All specifications sourced from Yamaha official technical documentation: SEBMX19C00-07 (December 2022) — YRM20 specifications, under optimum conditions unless stated.
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Model | YRM20 (1-beam / 2-beam) | Product Type | Premium high-efficiency modular mounter |
| Head System | Super high-speed rotary RM head / High-speed general-purpose in-line HM head / Odd-shaped components in-line FM head | ||
| Nozzles (RM Head) | 18 per head unit | RM Head Components | 0201 to W12×L12mm, height ≤6.5mm |
| Nozzles (HM Head) | 5 per head unit | HM Head Components | 0201 to W55×L100mm, height ≤15mm |
| Nozzles (FM Head) | 10 per head unit | FM Head Components | 03015 to W55×L100mm, height ≤30mm |
| Mounting Speed (2-beam) | RM: 115,000 / HM: 98,000 / FM: 35,000 CPH | Mounting Speed (1-beam) | RM: 57,500 / HM: 49,000 / FM: 17,500 CPH |
| Mounting Accuracy | ±0.025mm Cpk≥1.0 (high-accuracy mode); ±0.035mm Cpk≥1.0 | ||
| Component Types (Carriage) | Max. 128 types (32 feeders × 4, 8mm tape equivalent) | Component Types (Fixed) | Max. 128 types (8mm tape equivalent) |
| Tray Capacity | Max. 60 types (with eATS30 × 2) | Min PCB | L50×W50mm |
| PCB (1-beam, single lane) | L50×W50 to L510×W510mm (option: to L810×W510mm) | PCB (2-beam, 1-PCB) | L50×W50 to L810×W510mm |
| PCB (2-beam, 2-PCB) | L50×W50 to L380×W510mm | Conveyor | Dual-stage conveyor, high-speed PCB conveying |
| Power Supply | 3-phase AC 200/208/220/240/380/400/416V ±10%, 50/60Hz | Air Supply | 0.45MPa or more, clean & dry |
| External Dimensions | L1,374 × W1,948 × H1,445mm (excluding projections) | Weight (2-beam) | Approx. 2,250kg (main unit only) |
| Weight (1-beam) | Approx. 2,150kg (main unit only) | SEMI SMT-ELS | Compatible (option) |
| Feeder Lineup | ZSR high-speed feeder / ZS feeder / auto loading feeder | Tray Feeders | eATS30 (30 pallets, non-stop) / cATS10R (10 stages) |
Machine Configuration — Yamaha Σ Technology & Ecosystem
Every YAMAHA YRM20 is built on Yamaha’s in-house Σ (Sigma) motion technology and the complete Yamaha Robotics ecosystem.
YAMAHA Σ Technology
🇯🇵 Japan
Servo & motion control architecture
RM Rotary Head
🇯🇵 Japan
Super high-speed rotary head, 18 nozzles
HM / FM Heads
🇯🇵 Japan
High-speed general-purpose / odd-shape in-line heads
ZSR / ZS Feeders
🇯🇵 Japan
High-speed & lightweight single-hand feeders
eATS30 / cATS10R
🇯🇵 Japan
Non-stop 30-pallet & compact 10-stage tray feeders
YSi-V + All ImageTracer
🇯🇵 Japan
Vision, traceability & defect analysis software
SEMI SMT-ELS
Industry Standard
Machine-to-machine communication (option)
YAMAHA Robotics
🌐 Global
Worldwide service network & spare parts
Applications & Industries
The YAMAHA YRM20 is deployed across mission-critical electronics manufacturing sectors worldwide.
📱
Consumer Electronics
🚗
Automotive Electronics
🏥
Medical Devices
💡
LED Lighting & Display
🔋
New Energy & BMS
🏭
Industrial Automation
📡
Telecom & 5G
🏭
EMS / Contract Manufacturing
Industry Solutions & Technical Guides
Industry-Specific SMT Placement Solutions
Automotive Electronics
ECUs, BMS controllers, ADAS sensor boards and infotainment modules demand zero-defect output and full traceability. The YRM20’s ±0.025mm high-accuracy mode and SEMI SMT-ELS option support ISO/TS 16949 documentation, while the FM head places large 55×100mm connectors and tall 30mm components found on body control modules.
Medical Devices
Implantable controllers, diagnostic instruments and patient monitors require ISO 13485-compliant processes. The optional All ImageTracer saves every component recognition image, giving quality teams the proof trail medical audits demand — supported by 0201 handling with the low-impact nozzle.
Consumer Electronics
Smartphones, tablets, wearables and IoT devices combine extreme miniaturization with high volume. The RM head places 0201 chips at 115,000 CPH, and the dual-stage conveyor processes two different board types without stopping the line.
LED Lighting & Display
Dense LED boards place thousands of identical components with near-zero defects. The RM head’s low-impact nozzle prevents damage to adjacent tiny components, and the non-stop eATS30 tray feeder keeps LED line production flowing through 24/7 shifts.
New Energy & BMS
Power inverters, motor drives and battery management boards carry large components, thick copper traces and tall parts. The FM head handles components up to 55×100mm and 30mm height with force control for consistent placement of odd-shaped parts.
EMS / Contract Manufacturing
High-mix, variable-volume production is where the YRM20 shines: the 1-head solution removes head-change downtime, and fast program/feeder changeover with automatic push-up pin positioning keeps utilization high across dozens of board types per week.
Pick & Place Technology Guide
Understanding CPH: Real vs. Theoretical
YRM20 ratings (RM 115,000 / HM 98,000 / FM 35,000 CPH at 2-beam) are measured under Yamaha optimum conditions. Real throughput depends on board complexity, component mix and transport time. Use Yamaha Y.FacT/P-Tool to simulate tact with your specific PCBs before purchase.
The 1-Head Solution: RM, HM & FM
Instead of swapping heads for different component sizes, the YRM20 carries rotary (RM), general-purpose (HM) and odd-form (FM) heads on a common platform. Each beam is configurable, and 1-beam or 2-beam options cover different speed/cost targets — no head replacement, no downtime.
Dual-Stage Conveyor & 2-PCB Mounting
Yamaha’s in-machine 2-division mounting conveys two PCBs (up to L380×W510mm each) in parallel, or one board up to L810×W510mm. High-speed conveying shortens board changeover and raises overall equipment effectiveness on mixed-lot lines.
Vision, Traceability & Quality
The side-view camera detects dropped, tilted or flipped components at pickup. The optional coplanarity checker inspects BGA/CSP ball coplanarity, and All ImageTracer records every recognition image — supporting traceability systems that connect with YSi-V and AIT for rapid defect cause analysis.
SMT Line Manufacturing Guide
Line Balancing & Takt Time
With 115,000 CPH, the YRM20 typically sets the takt time in a high-speed line. Upstream stencil printers and SPI must match; downstream reflow and AOI must keep up. Yamaha Y.FacT simulates the complete line so the bottleneck is never the mounter.
Facility Requirements
Main unit: L1,374×W1,948×H1,445mm, approx. 2,250kg (2-beam) — allow 1m front/rear and 0.5m side service clearance. Power: dedicated 3-phase AC 200-416V circuit. Air: 0.45MPa+ clean and dry with dryer and filter. Keep 20–28°C and 50–60% RH for optimal accuracy.
Preventive Maintenance Schedule
The YRM20 self-diagnoses nozzle eccentricity, buffer springs, air pressure and appearance, then self-recovers or signals for replacement. Standard practice: daily nozzle inspection, weekly air filter checks, monthly guide lubrication and camera glass cleaning, and quarterly feeder maintenance per the operator and maintenance manuals supplied with the machine.
Operator Training Requirements
JHIMS provides on-site installation, commissioning and operator training by certified engineers covering startup, program loading, feeder setup and maintenance basics — followed by advanced P-Tool programming where needed. Remote video training and documentation support are provided free of charge.
Production Workflow — YRM20 in Your SMT Line
See exactly where the YAMAHA YRM20 fits in your PCB assembly process and how it integrates with upstream and downstream equipment.
📥
PCB Loader
Auto board loading
→
🖨️
Stencil Printer
JHIMS L5 / L12
→
🔍
SPI Inspection
Pre-reflow AOI
→
⚡
YRM20
▶ High-Speed Mounter ◀
→
🔥
Reflow Oven
10+ zone reflow
→
🔎
AOI Inspection
Post-reflow AOI
→
📨
PCB Unloader
Auto board unloading
Legacy Placement vs. YRM20 High-Speed Mounter
| Metric | Manual Placement | YRM20 (2-beam RM) | Advantage |
|---|---|---|---|
| Placement Speed | ~800 CPH/operator | ~8,000 CPH | 115,000 CPH (×144 vs manual) |
| Placement Accuracy | ±0.2mm (operator-dependent) | ±0.1mm | ±0.025mm (Cpk≥1.0) |
| Component Range | 0603+ (limited by tweezer) | 0402+ | 0201 to 55×100mm, up to 30mm height |
| Operators Required | 1 per station (×144 stations to match) | 2–3 per machine | 1 operator for entire machine |
| Monthly Output (8h×26d) | ~166K placements | ~1.66M placements | ~23.9M placements (×144 vs manual) |
| Annual Labor Cost (est.) | $600K+ (144 operators) | $180K+ (3 operators × 10 machines) | ~$12K (1 operator) |
| Defect Rate | 2–5% typical | 0.5–1% typical | <0.05% (first-pass) |
| Changeover Time | 10–15 min | 15–30 min | Non-stop eATS30 + auto program change-over |
Based on real-world production data from electronics manufacturers using high-speed mounters. Actual results may vary by application.
ROI Calculator — See Your Payback Period
Based on the quotation we prepare for your YRM20. Enter your current production parameters to calculate how quickly the YRM20 pays for itself.

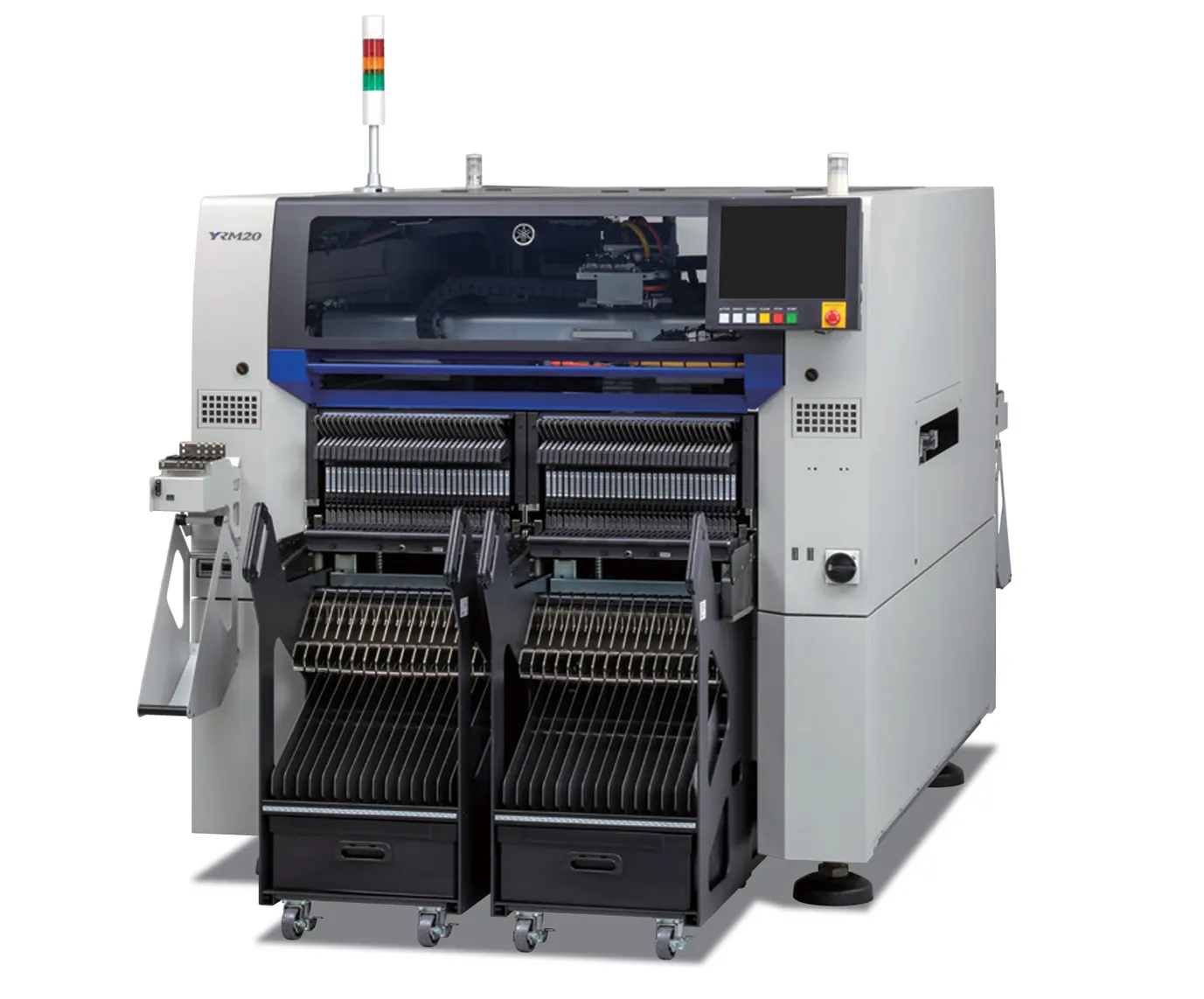

Product Gallery — See the YRM20 in Detail

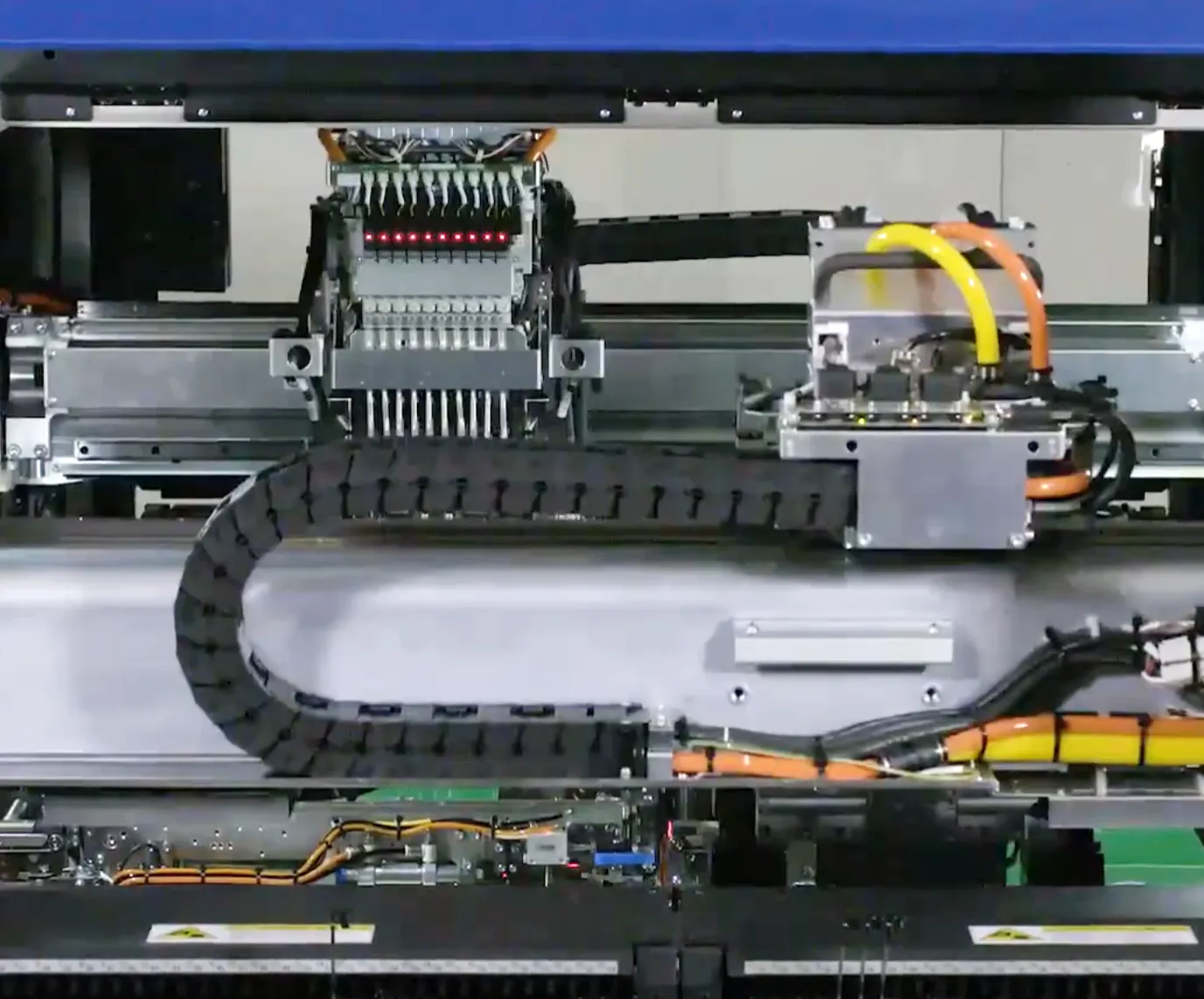

The YAMAHA YRM20: high-speed mounter, dual cantilever placement unit and real production line integration.
Product Videos — See the YRM20 in Action
Watch the YAMAHA YRM20 and the Yamaha placement platform performing real-world production tasks. All videos are hosted on YouTube for fast, reliable streaming worldwide.
Yamaha YRM20 Pick and Place Machine | High Speed SMT Placement Machine for PCB Assembly
Yamaha SMT Feeder | Tape Feeder for Yamaha Pick and Place Machine
YSM40R YSM20R Yamaha Pick and Place Machine — Technology Sharing
Yamaha YSM20R Pick and Place Machine — Introduction
CUSTOMER SUCCESS STORIES
Trusted by SMT Factories Worldwide
Real SMT production and line-integration projects delivered by JHIMS — high-speed placement lines, LED display assembly and turnkey factories. Every project shipped, installed and supported by the JHIMS team.
TURNKEY LINETurnkey SMT Factory in Malaysia
A German electronics enterprise automated its Malaysia factory with JHIMS DDP turnkey delivery — YSM10 mounters, L5 printer and F8 reflow, fully commissioned.
DDPTurnkey Delivery
3Line Machines
100%Automated Line
145K CPH LEDDoubled LED Output with Yamaha High-Speed Mounters
Shenzhen LJX Display Technology doubled LED display output by replacing a Hanwha S2 line with the Yamaha YSM40R high-speed mounter — the same Yamaha placement platform family as the YRM20.
145KCPH Achieved
+123%Speed Gain
-33%Line Length
LINE EFFICIENCYTCL + JHIMS: 85% Faster Changeover
A TCL production line cut changeover time by 85% and lifted throughput by 30% with JHIMS automation — the same fast-changeover thinking built into the YRM20’s eATS30 and automatic program change-over.
-85%Changeover Time
+30%Throughput
LABOR SAVINGSMexico PCB Assembly — 67% Labor Reduction
A Mexico-based PCB assembly operation cut labor cost by 67% through automated SMT feeding and placement — the economics that make a 115,000 CPH mounter pay for itself.
-67%Labor Cost
1Automated Line
Frequently Asked Questions
🔧 Technical Questions
On the 2-beam configuration the YRM20 reaches 115,000 CPH with the super high-speed rotary RM head, 98,000 CPH with the HM head and 35,000 CPH with the FM head (under Yamaha optimum conditions). The 1-beam version reaches 57,500 / 49,000 / 17,500 CPH respectively. Real-world CPH depends on your PCB design, component mix and board transport time.
±0.025mm Cpk≥1.0 in high-accuracy mode, with ±0.035mm Cpk≥1.0 as the standard rating — both verified under Yamaha optimum conditions using standard evaluation components and test boards. Combined with the low-impact nozzle, this delivers high first-pass yield on fine-pitch and micro-component assemblies.
The RM head handles 0201 to W12×L12mm components up to 6.5mm height; the HM head handles 0201 to W55×L100mm up to 15mm height; the FM head handles 03015 to W55×L100mm up to 30mm height with force control. One YRM20 covers chips, SOP/SOJ/QFP, BGA/CSP and large odd-shaped connectors.
Instead of swapping heads when the component mix changes, the YRM20 carries rotary RM, general-purpose HM and odd-form FM heads on a common 1-beam or 2-beam platform. Head combinations are configured per beam, so production never stops for head replacement — the 1 head solution taken to its ultimate stage.
The YRM20 is the dual-stage conveyor model: 1 PCB up to L810×W510mm or 2 PCBs at L380×W510mm, 115,000 CPH. The YRM20DL is the dual-lane model: two independent lanes each up to W330mm (or single-lane up to L810×W610mm), 120,000 CPH with ±0.015mm accuracy options. JHIMS supplies both — contact us for a line recommendation.
1-beam single lane: L50×W50mm to L510×W510mm standard, extendable to L810×W510mm by option. 2-beam dual stage: 1-PCB conveyance up to L810×W510mm, or 2-PCB conveyance up to L380×W510mm each. Minimum board size is L50×W50mm.
Feeder carriage exchange: max. 128 component types (32 feeders × 4, 8mm tape equivalent). Fixed plate: max. 128 types. Trays: up to 60 types when equipped with two eATS30 units. Feeder lineup includes the ZSR high-speed feeder, ZS lightweight feeder and auto loading feeder.
3-phase AC 200/208/220/240/380/400/416V ±10%, 50/60Hz. Install a dedicated circuit with the correct conductor sizing for your voltage; the machine ships ready for the voltage specified in your order.
0.45MPa or more, in a clean and dry state. Install an air dryer and filter upstream, and use a supply line sized for the machine’s consumption. Your JHIMS engineer confirms exact consumption figures for your head configuration during commissioning.
The eATS30 is a large-capacity tray feeder that stores up to 30 pallets and refills them without stopping production — ideal for 24/7 lines where tray components are used continuously. The compact cATS10R (10 stages) is the space-saving, cost-effective alternative.
Yes. The YRM20 is compatible with SEMI SMT-ELS communication standards as an option, enabling seamless connection such as Auto Program Change-Over with other vendors’ machines — a key requirement for mixed-vendor smart factories.
A side-view camera photographs the pickup state to detect dropped, tilted or flipped components. An optional coplanarity checker inspects BGA/CSP ball coplanarity, and the optional All ImageTracer saves every component recognition image for defect analysis and traceability.
🛡️ Warranty & After-Sales
JHIMS provides a standard warranty covering manufacturing defects. The warranty period and terms are detailed in your purchase agreement, referencing Yamaha standard terms. Extended warranty packages are available on request.
The YRM20 continuously self-diagnoses nozzle eccentricity, buffer springs, air pressure and nozzle appearance, and self-recovers or signals for replacement. Standard routine: daily nozzle inspection, periodic feeder maintenance and quarterly camera/guide checks — detailed in the operator and maintenance manuals supplied with the machine.
Yes. JHIMS provides on-site installation, commissioning, and operator training by JHIMS certified engineers — on-site service is available at a charge. Remote video training, documentation support and professional technical guidance are provided free of charge.
JHIMS maintains a comprehensive spare parts inventory at our Shenzhen headquarters. Critical parts ship via DHL/FedEx express, typically 3-7 business days. We recommend purchasing a preventive maintenance spare parts kit with your machine.
Support available via: phone (86-755) 86700443, WhatsApp, Telegram (@jinghe_tech), Microsoft Teams, email ([email protected]), and phone (Mon-Sat, 09:00-23:00 China Standard Time (UTC+8)). First reply typically within 12 working hours (Mon–Sat, 09:00–23:00 China Standard Time, UTC+8); a stopped line is picked up 24/7 on WhatsApp.
Absolutely. Visit our Shenzhen demo center to see Yamaha mounters running. We can also arrange visits to existing customer sites in your region (subject to customer approval). Contact us to schedule.
Based on Yamaha’s track record with previous-generation machines, parts and service availability is expected for at least 10-15 years. JHIMS stocks genuine Yamaha spare parts and offers extended service contracts.
🚚 Shipping & Payment
Main unit: L1,374×W1,948×H1,445mm (excluding projections), approx. 2,250kg for the 2-beam version or 2,150kg for the 1-beam version (main unit only). Complete shipping dimensions including crating are provided in your quotation.
T/T (Telegraphic Transfer) is the primary method. Standard payment terms: 70% T/T deposit with the order, 30% T/T before shipment. Existing customers may use L/C (Letter of Credit) at sight. Contact sales for terms tailored to your order and region.
Standard: 4-8 weeks (factory production + pre-delivery inspection + export packaging + ocean freight). Air freight available for urgent orders. Ocean transit: 2-5 weeks depending on destination. We provide regular shipping status updates throughout the process.
Yes. JHIMS provides commercial invoice, packing list, bill of lading/airway bill, certificate of origin, and any required compliance certificates. We work with experienced freight forwarders who can assist with destination customs clearance. DDP (Delivered Duty Paid) shipping available upon request for certain countries.
Standard: main machine unit, heads as configured, standard accessories (operator and maintenance manuals, tool kit, maintenance kit), feeder configuration as specified, and JHIMS inspection certificate. Optional items (eATS30, cATS10R, coplanarity checker, All ImageTracer, additional feeders, spare parts kit) must be specified in your order.
Custom-fabricated wooden crate with vibration-dampening foam and vapor-phase corrosion inhibitor (VCI) packaging. All moving axes mechanically locked. Tilt and shock indicators attached for transit condition verification. Suitable for both ocean freight (containerized) and air freight.
The YRM20 is the higher tier of the two: 115,000 CPH (RM head) versus 95,000 CPH (YSM20R), ±0.025mm high-accuracy mode versus ±0.035mm (±0.025mm), board width up to 510mm versus 490mm, and the RM/HM/FM 1-head solution versus HM/FM heads. The YRM20DL dual-lane model goes further with 120,000 CPH. Choose based on your speed, precision and board-size targets — JHIMS advises on configuration.
LEARNING CENTER
Knowledge Center — Expert Resources
Field-tested guidance on the YRM20 pick and place machine and high-speed SMT placement — buying strategy, line integration and real customer results, compiled by JHIMS engineers.
Reference videos: Yamaha YRM20 Pick and Place Machine | High Speed SMT Placement Machine for PCB Assembly; Yamaha SMT Feeder | Tape Feeder for Yamaha Pick and Place Machine; YSM40R YSM20R Yamaha pick and place machine technology sharing｜Chinese and English words Mu#YSM20R.
| Weight | 2250 kg |
|---|---|
| Dimensions | 1374 × 1948 × 1445 mm |
| Brand | Yamaha |

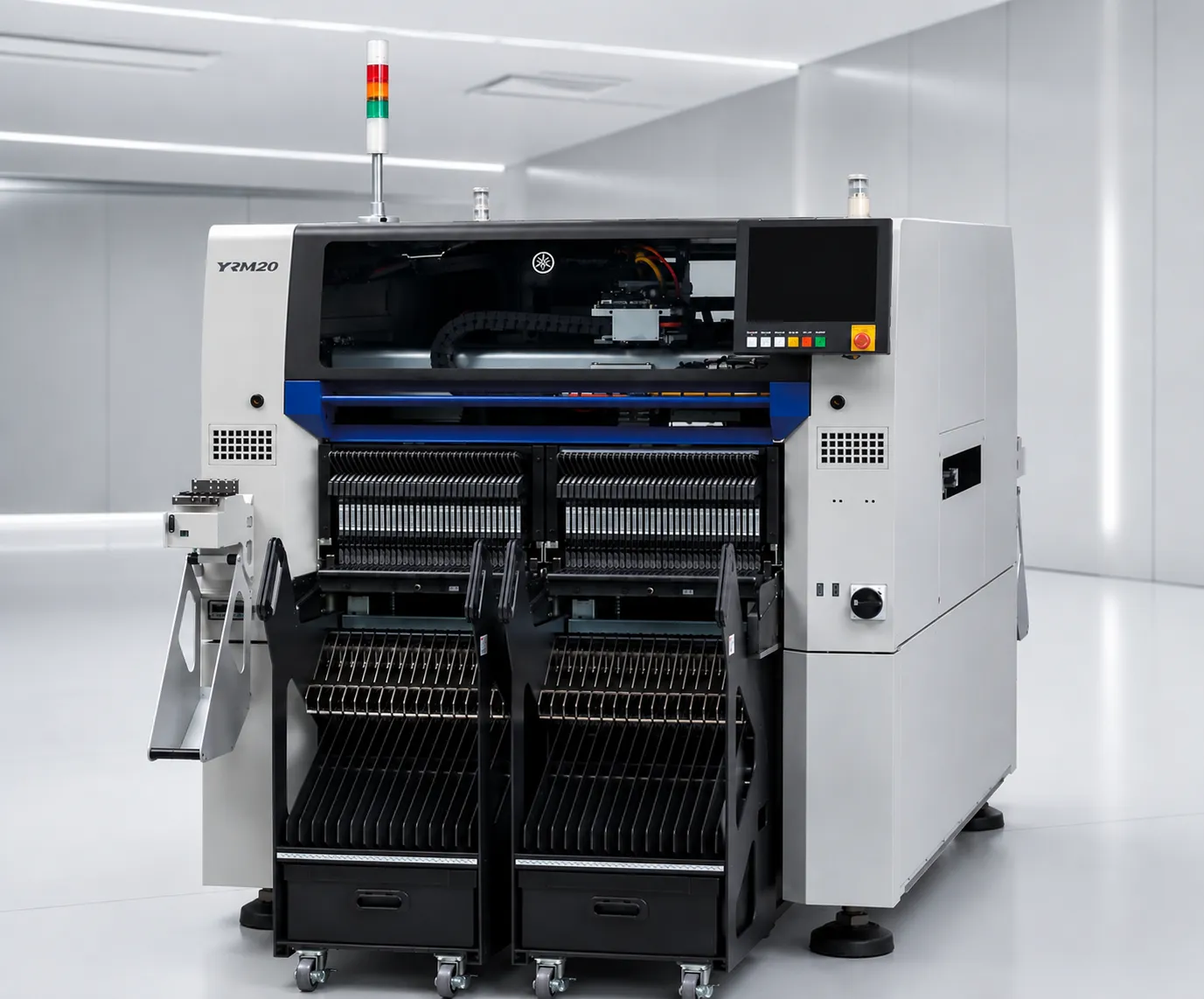

| Model | YRM20 |
| Product Type | High-speed modular mounter (SMT pick and place machine) |
| Mounting Speed | 115,000 CPH |
| Mounting Accuracy | ±0.025mm Cpk≥1.0 |
| Component Range | 0201 to 55×100mm, max height 30mm |
| Min Component | 0201 |
| Min PCB | L50×W50mm |
| Max PCB | L810×W510mm |
| Feeder Capacity (Fixed) | Max. 128 types (8mm equivalent) |
| Auto Tray | Max. 30 layers (eATS30) |
| Power Supply | 3-phase AC 200/208/220/240/380/400/416V ±10%, 50/60Hz |
| Air Pressure | 0.45MPa or higher |
| Origin | Shenzhen, China |
| Warranty | 12 Months |
