JHIMS R6-U UV Laser Marking Machine
Request a quote
R6-U — UV Laser Marking Machine
±0.02mm Accuracy5W UV 355nm LaserCCD+MARK Vision5-7s Cycle360° Marking
- 🔦 Permanent laser marking — survives reflow, cannot peel like labels
- 🎯 ±0.02mm CCD+MARK auto-positioning for PCB/FPC traceability
- 🏭 Omron · Inovance · Googol · Mean Well components · ISO 9001 · CE
LASER MARKING MACHINE

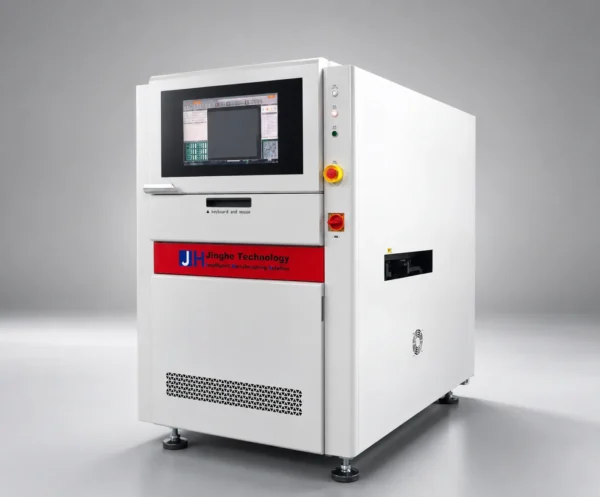

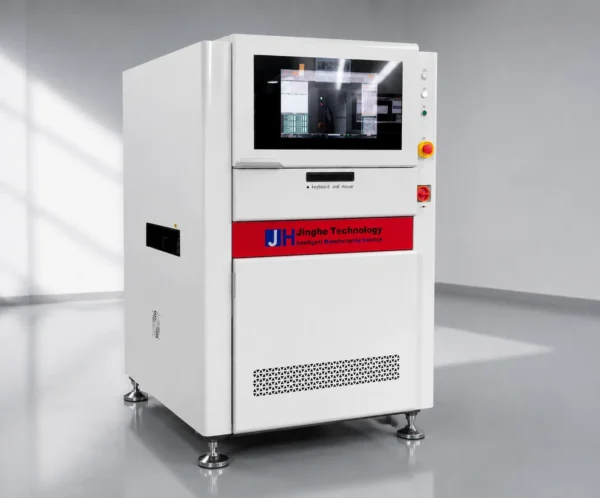

JHIMS R6-U UV Laser Marking Machine
High-precision PCB laser engraving system with +-0.02mm accuracy. 5W UV laser (355nm), CCD+MARK vision positioning, 360-degree marking angle. Fully automated barcode, QR code, text, and graphic engraving for PCB traceability, electronic components, ceramic, plastic, and metal surfaces. ISO 9001 certified. Serving 2,456+ clients in 30+ countries since 2012.
ISO 9001 Certified
CE Compliant
Serving 2,456+ Clients in 30+ Countries
36 R&D Engineers
Est. 2012 — 12+ Years of Excellence
Automotive Tier-1 Supplier
Medical Device Manufacturer
Consumer Electronics OEM
Industrial Automation Leader
LED Lighting Manufacturer
Medical Device Manufacturer
Consumer Electronics OEM
Industrial Automation Leader
LED Lighting Manufacturer
Explore JHIMS Solutions: Learn more about SMT assembly equipment and PCBA manufacturing solutions. Looking for specific applications? Discover our expertise in pick and place machines and reflow ovens for complete SMT line integration.
Pain Points & JHIMS Solutions
Common PCB Marking & Traceability Challenges
- Label-based PCB marking fails in reflow — labels peel, blister and fall off during soldering
- Manual ink marking produces slow, inconsistent and often illegible codes
- 15-30 seconds per board for manual labeling slows the production line
- Serial numbers tracked manually — no live link to MES/ERP traceability
- Barcode readability problems discovered only at final QC, forcing rework
- Recurring label, ink and ribbon consumables drive up cost per board
JHIMS R6-U UV Laser Marking Solutions
- Permanent laser marking survives reflow — codes cannot peel, fade or be tampered with
- ±0.02mm CCD+MARK dual-vision auto-positioning for consistent, legible codes on every board
- 5-7 second automatic marking cycle with inline conveyor integration
- MES/ERP integration with automatic work order download and serial number synchronization
- Built-in CCD verification reads every barcode after marking, before the board advances
- Zero consumables — laser marking only uses electricity, saving $8,000-15,000 per year vs labels
Product Overview — R6-U UV Laser Marking Machine
The JHIMS R6-U UV laser marking machine is a state-of-the-art PCB laser marking machine and UV laser engraver engineered for high-speed, high-precision marking on PCB surfaces. The system integrates a 5W ultraviolet laser (355nm wavelength), an XY precision servo-driven motion platform, and a CCD+MARK dual-camera vision positioning system to deliver unmatched marking quality and throughput. 5W UV laser (355nm) with CCD+MARK dual vision positioning and ±0.02mm marking accuracy.
Built with Omron photoelectric sensors, Inovance motion control, Googol Technology CNC, Mean Well power, CHINT, Schneider Electric and Airtac pneumatic components for 24/7 industrial reliability.
Applications: PCB & FPC marking, electronic components, automotive electronics, medical devices, consumer electronics, LED manufacturing, semiconductor packaging, ceramic substrates and metal shielding.
Key Features of the R6-U UV Laser Marking Machine
🎯
Ultra-High Precision UV Laser
5W UV laser with 355nm wavelength delivers a 0.03mm spot size and +-0.02mm repeatable marking accuracy. Cold-marking process creates zero thermal stress on sensitive PCB substrates and components.
🔍
CCD+MARK Dual Vision System
High-resolution industrial cameras with advanced image processing automatically locate fiducial marks (MARK points) for precise board alignment. Real-time verification camera reads and validates every barcode immediately after engraving.
⚙
CNC Automatic Track Adjustment
Stepper-motor-driven lead screw mechanism with saved recipe system. Automatically adjusts conveyor width for different PCB sizes. Supports board widths from 50mm to 510mm with optional 600mm extended mode.
🛠
World-Class Component Supply Chain
Built with Omron photoelectric sensors, Inovance servo motors and drives, Googol motion control card, Mean Well power supplies, and CHINT circuit protection. Every component selected for 24/7 industrial reliability.
🔌
MES/ERP/IMS Ready
Ethernet connectivity with open API for seamless integration with shopfloor management systems. Supports automatic work order download, serial number synchronization, and real-time production data upload.
🔑
Anti-Duplicate & Traceability
Built-in duplicate marking prevention ensures every PCB receives a unique identifier. Full production logging with timestamp, operator ID, and barcode data for complete traceability from fabrication to end-customer.
📄
Visual Template Editor
Intuitive drag-and-drop barcode placement directly on the live PCB camera view. Real-time WYSIWYG template editing. Gerber file import for automatic barcode position mapping. New recipe setup in approximately 3 minutes.
🌡
Zero-Consumable Operation
Laser marking requires no ink, no labels, no ribbons, and no solvents. The only operating cost is electricity. Annual consumable savings of $8,000-15,000 compared to ink-based or label-based marking systems.
📦
Compact Industrial Design
Footprint of just 950mm x 1550mm x 1680mm. Fits standard SMT production lines with SMEMA-compatible conveyor interface. Integrated fume extraction with dedicated dust collection fan protects operators and maintains clean-room compatibility.
🌐
Multi-Language & Global Support
Windows 10-based control software with one-click Chinese/English interface switching. Remote diagnostic capability. Supported by JHIMS global service network across 30+ countries with 24-hour technical response.
Technical Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product Model | R6-U (Standard) | Machine Dimensions (LxDxH) | 950mm x 1550mm x 1680mm |
| Machine Weight | Approx. 550 kg | Total Power Consumption | 2.5 kW (Host: 1.8 kW) |
| Power Supply | Single-phase 220V AC, 50Hz | Air Supply | 0.5-0.7 MPa (5-7 Kgf/cm2) |
| Conveyor Working Height | 900 +-20 mm (adjustable) | Laser Type | UV Solid-State Laser, Wavelength 355 nm |
| Laser Power | 5W (3W/10W optional) | Laser Spot Diameter | 0.03 mm |
| Marking Angle | 360 degrees | Cooling Method | Air cooling (water chiller optional for 10W+) |
| Galvo Scan Range | 40mm x 40mm | Field Lens Focal Length | f=254mm (standard) |
| Repeatable Marking Accuracy | +-0.02 mm (XY directions) | Minimum QR Code Size | 1.2mm x 1.2mm |
| Minimum Line Width | 0.04 mm | Minimum Character Size | 0.2 mm |
| Marking Time (4x4mm QR code) | Approx. 7 seconds (including board load/unload + positioning + marking + verification) | Min/Max PCB Size | 50mm x 50mm / 510mm x 460mm (600mm x 460mm with track delay) |
| PCB Thickness Range | 0.5mm – 5mm | Max PCB Weight | Less than or equal to 2 kg |
| PCB Deformation Allowance | Less than 2mm | Conveyor Speed | 50-300 mm/s |
| XY Axis Movement Speed | Up to 1000 mm/s | Top-Side Component Clearance | 25mm (excluding PCB thickness) |
| Bottom-Side Component Clearance | 15mm (excluding PCB thickness) | PCB Transport Direction | Left to Right / Right to Left (configurable) |
| Conveyor Width Adjustment | CNC automatic with recipe memory | Flip Function | Optional (for double-sided marking) |
| Fume Extraction | Dedicated dust collection fan with 2.5-inch exhaust duct | Positioning System | CCD + MARK dual-camera vision |
| Online Code Reading | Yes – built-in barcode verification | Marking Content | 1D barcodes, 2D QR codes, Data Matrix, text, serial numbers, logos, graphics, date codes |
| Control System | Industrial PC + Googol GCN400A-S 8-axis motion card + Inovance SV660 servo drives | Operating System | Windows 10 (Simplified Chinese / English) |
| Operating Software | JHIMS proprietary laser marking software (in-house developed) | Network Interface | Ethernet (TCP/IP) |
| System Integration | MES, ERP, Shopfloor, IMS compatible | File Format Support | Gerber, DXF, and standard engineering formats |
| Operating Temperature | 0-40 degrees C (no condensation or icing) – UV air-cooled: max 27 degrees C ambient | Operating Humidity | 35-85% RH (no condensation, no icing) |
| Transport/Storage Temperature | -25 to 55 degrees C (max 65 degrees C within 24 hours) | Floor Requirement | Cement floor, load bearing greater than 2T per square meter |
| SMEMA Interface | Yes – standard SMEMA communication protocol |
Machine Configuration — Premium Global Components
Every JHIMS R6-U is built with world-class components from leading global brands.
Omron
Japan
Photoelectric Sensors & Relays
Inovance
China
Servo Motors & Drives (SV660 Series)
Googol Technology
China
GCN400A-S 8-Axis Motion Control Card
Mean Well
Taiwan, China
Industrial Power Supplies (LRS Series)
CHINT
China
Circuit Breakers & Contactors
Schneider Electric
France
Emergency Stop & Safety Relays
Guka Motor
China
Stepper Motors & DMD556 Drives
Airtac
Taiwan, China
Pneumatic Cylinders & Solenoid Valves
CW (Filter)
China
CW4EL2-30A-R Power Line Filter
Applications & Industries
The JHIMS R6-U UV laser marking machine is deployed across mission-critical electronics manufacturing sectors worldwide.
🔌
PCB & FPC Marking
⚙
Electronic Components
🚘
Automotive Electronics
🏥
Medical Devices
📱
Consumer Electronics
💡
LED Manufacturing
⚛
Semiconductor Packaging
🌎
Ceramic Substrates
🛠
Metal Shielding & Housings
🛒
Plastic Product ID
🌈
Glass Coating Ablation
Industry Solutions & Technical Guides
Automotive Electronics
Permanent laser marking on ECU boards, sensor modules, and power distribution units for full lifecycle traceability. Our R6-U meets automotive IATF 16949 traceability requirements with unique 2D Data Matrix codes that withstand under-hood temperatures up to 150 degrees C. Typical cycle time of 5-7 seconds per board with 99.9% first-pass read rate.
Consumer Electronics
High-speed marking on smartphone PCBs, wearable device flex circuits, and IoT module boards. The R6-U handles multi-panel boards with array marking functionality, engraving up to 24 individual QR codes on a single panel in one automated cycle. Supports fine-pitch marking down to 1.2mm x 1.2mm for ultra-compact wearables.
Medical Device Electronics
FDA UDI (Unique Device Identification) compliant marking for medical PCBs, implantable device controllers, and diagnostic equipment. The UV cold-marking process creates no thermal stress, preserving the integrity of sensitive medical-grade components. Full audit trail logging for regulatory compliance documentation.
LED & Lighting Manufacturing
High-contrast marking on aluminum-core LED PCBs and ceramic LED substrates. The 355nm UV wavelength achieves excellent absorption on metal-clad and ceramic surfaces, producing crisp, machine-readable codes. Compatible with both rigid and flexible LED strip manufacturing processes.
UV Laser Marking Technology Explained
UV laser marking operates at a wavelength of 355nm, which falls in the ultraviolet spectrum. Unlike CO2 (10,600nm) or fiber (1,064nm) lasers that rely on thermal effects to mark materials, UV lasers use a photochemical process called “cold marking.” The high-energy UV photons directly break molecular bonds on the material surface, resulting in exceptionally clean, high-contrast marks with virtually zero heat-affected zone (HAZ).
This cold-marking characteristic makes UV lasers ideal for PCB marking because it eliminates the risk of delamination, copper trace damage, or component thermal stress. The 0.03mm spot size enables sub-millimeter barcode and text marking, while the 360-degree marking angle provides complete flexibility for barcode orientation on densely populated boards.
Key advantages of UV laser technology: Cold processing (no thermal damage), ultra-fine resolution (0.04mm minimum line width), wide material compatibility (PCB, FPC, ceramic, glass, plastics, metals), permanent and chemical-resistant marks, zero consumables, and environmentally friendly operation with no inks, solvents, or chemical waste.
R6-U Manufacturing & Quality Process
Every R6-U laser marking machine undergoes a rigorous manufacturing and quality assurance process at our Shenzhen factory. The production workflow includes: precision frame welding and stress-relief annealing, CNC-machined base plate mounting, component-level incoming inspection, modular sub-assembly testing (servo, vision, laser, conveyor), full system integration, 72-hour burn-in test, laser calibration and EZCAD 9-point/25-point correction, camera distortion and angle calibration, and final CPK capability study with statistical process control documentation.
Quality certifications: ISO 9001:2015 certified manufacturing facility. CE compliance for European market access. Each machine ships with a complete quality dossier including CPK test report, calibration certificates, component traceability records, and factory acceptance test (FAT) documentation. Our 36-person R&D team continuously improves machine performance based on field data from installations across 30+ countries worldwide.
Pre-shipment testing: Every R6-U runs a minimum 10,000-cycle marking test with 100% barcode readability verification before packaging. Machines are shipped in custom wooden crates with vibration isolation for safe international transport.
Production Workflow — R6-U in Your SMT Line
See exactly where the JHIMS R6-U fits in your PCB assembly process.
📦
PCB Loader
PCB Loader
→
🔦
R6-U Laser Marking
⭐ This Product
R6-U Laser Marking
⭐ This Product
→
🖨️
Solder Paste Print
Solder Paste Print
→
🤖
Pick & Place
Pick & Place
→
🔥
Reflow Oven
Reflow Oven
→
🔎
AOI Inspection
AOI Inspection
→
📤
PCB Unloader
PCB Unloader
The R6-U laser marking machine adds permanent, traceable identification early in the SMT line — before solder paste printing.
Manual Labeling vs. R6-U Laser Marking
| Metric | Manual Labeling / Ink Marking | JHIMS R6-U | Advantage |
|---|---|---|---|
| Marking Speed | 15-30 seconds per board (manual) | 5-7 seconds per board (fully automatic) | R6-U |
| Accuracy | +-0.5mm (manual placement) | +-0.02mm (CCD+MARK auto-positioning) | R6-U |
| Annual Consumable Cost | $8,000 – $15,000 (labels, ink, ribbons) | $0 (zero consumables) | R6-U |
| Labor Requirement | 1 dedicated operator per shift | 0 operators (fully automated, inline) | R6-U |
| Code Readability | Variable; labels can peel, ink can smear | 99.9% first-pass read rate; permanent marks | R6-U |
| Durability | Labels degrade under heat and chemicals | Survives reflow, washing, and harsh environments | R6-U |
| Changeover Time | 10-20 minutes (manual setup) | Under 3 minutes (automatic recipe recall) | R6-U |
| Verification | Separate manual scanning step required | Built-in online reading and verification | R6-U |
| Data Integration | Manual data entry; error-prone | Automatic MES/ERP sync via Ethernet | R6-U |
| Environmental Impact | Chemical waste from inks and solvents | Zero waste; environmentally friendly | R6-U |
Based on real-world production data from electronics manufacturers using the R6-U. Actual results may vary by application.
ROI Calculator — See Your Payback Period
Based on the quotation we prepare for your R6U. Enter your current production parameters to calculate how quickly the R6U pays for itself.
Product Gallery — See the R6-U in Detail

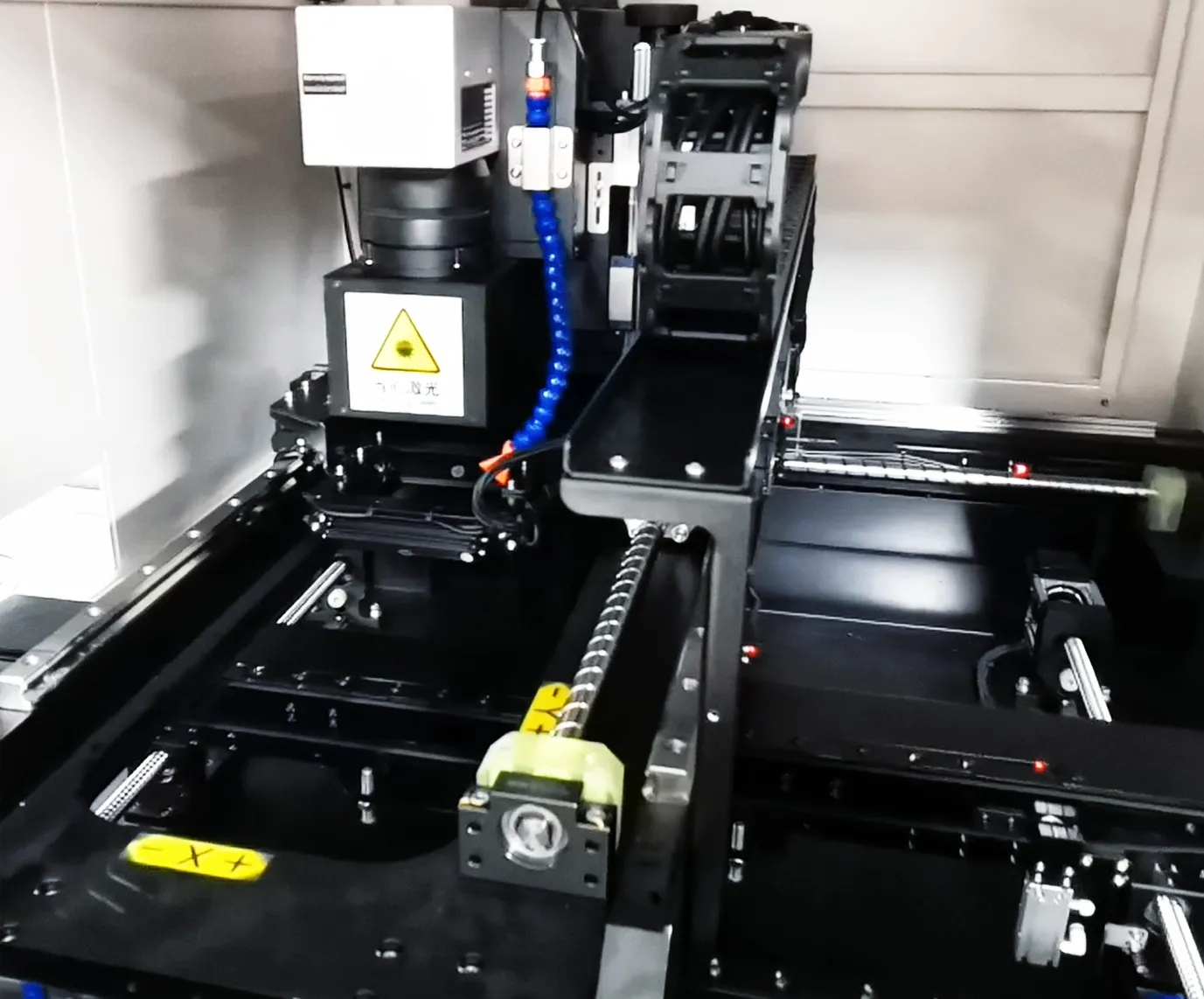

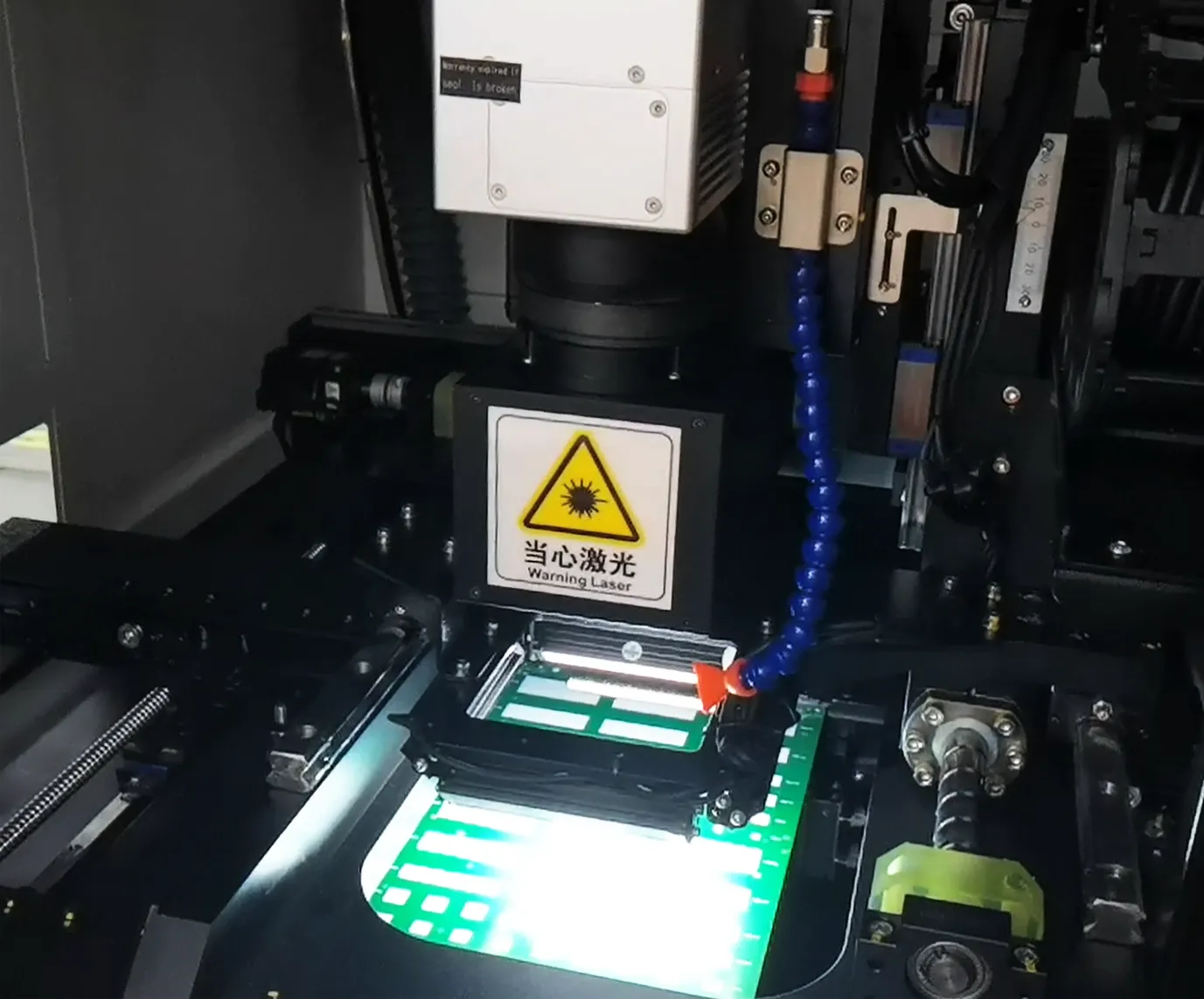

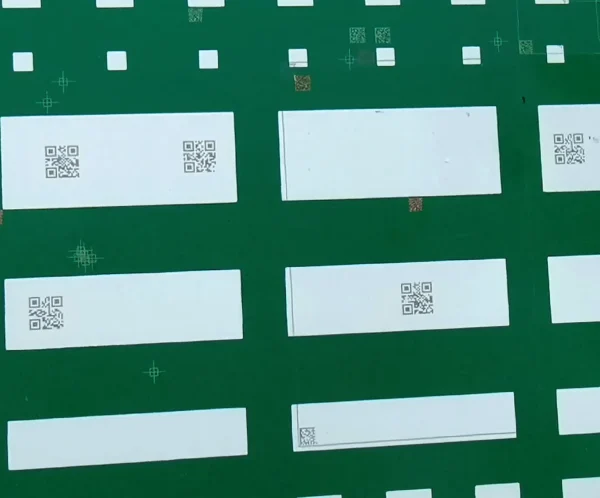

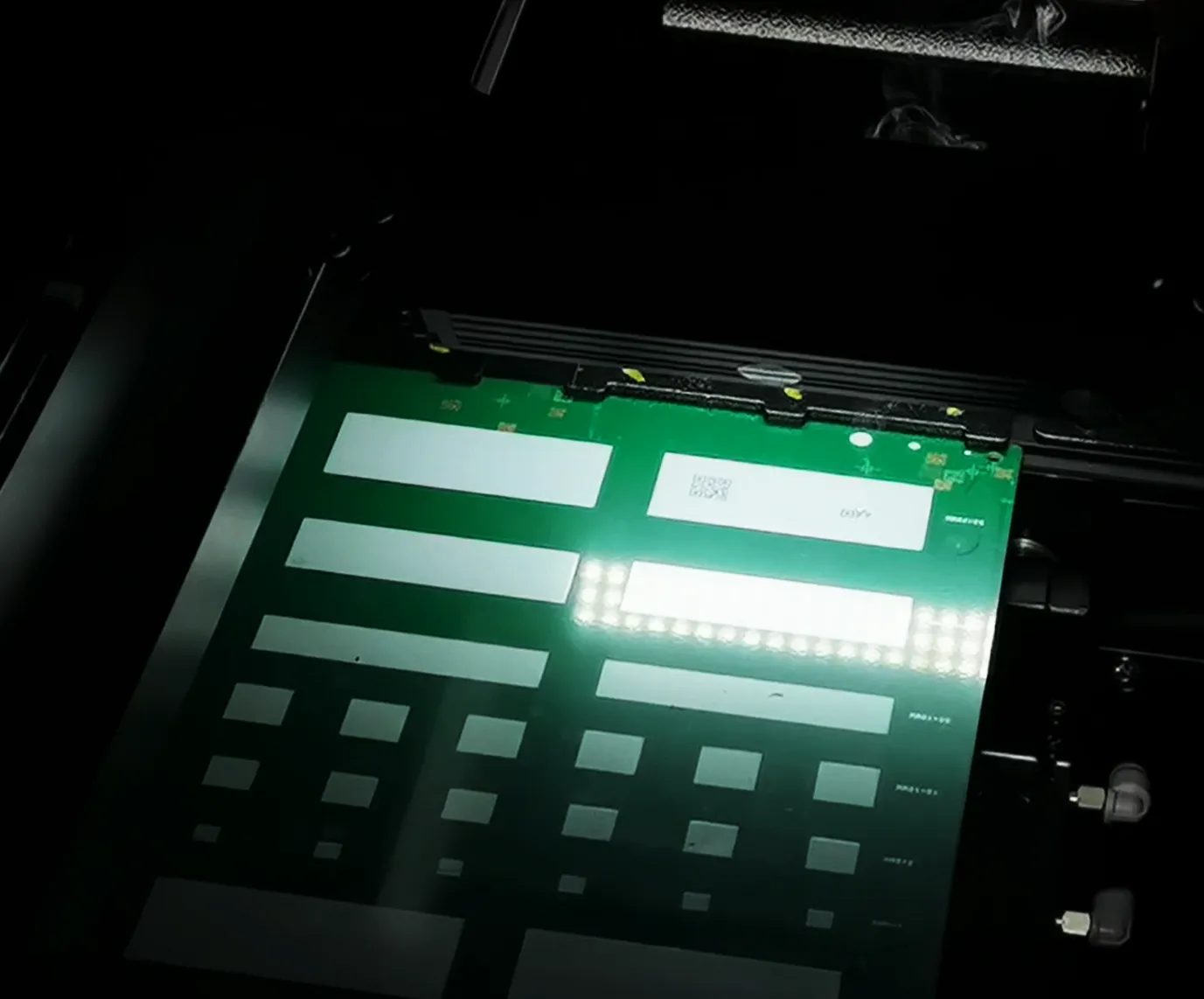

The JHIMS R6-U laser marking machine: working head, internal structure, PCB engraving and QR code marking demonstration.
Product Videos — See the R6-U in Action
Watch the R6-U laser marking machine in action. All videos are from the JHIMS official channel.
Instructional Video for Automatic PCB Laser Engraving Machine
R6-U Laser Engraving Machine Demonstration
JHIMS PCB Laser Engraving Machine Training
CUSTOMER SUCCESS STORIES
Trusted by SMT Factories Worldwide
Real JHIMS deployments across global SMT factories — from PCB assembly cost reduction to zero-defect quality audits. Every project shipped, installed and supported by the JHIMS team.
PCB ASSEMBLYMexico PCB Assembly — 67% Labor Reduction
A Mexico-based PCB assembly operation cut labor cost by 67% through automated feeding and placement automation.
-67%Labor Cost
AutoFeeding
AutoPlacement
QUALITY AUDITZero Scratch Defects in a Toyota Supplier Audit
PPM dropped from 8,500 to 120 (-98.6%) and the Toyota supplier audit passed with zero findings on the first attempt.
-98.6%PPM Defects
0Audit Findings
1stAttempt Pass
CHANGE OVERTCL: 85% Faster Changeover, 30% More Throughput
Changeover dropped from 25 minutes to under 5, daily downtime cut by 85% and throughput rose 30%.
25→5Min Changeover
-85%Downtime
+30%Throughput
Frequently Asked Questions
🔧 Technical Questions
The R6-U achieves repeatable marking accuracy of +-0.02mm in both X and Y directions, enabled by the CCD+MARK dual-camera vision positioning system and Inovance servo motor-driven XY precision platform.
The standard R6-U is equipped with a 5W UV solid-state laser operating at 355nm wavelength. Optional configurations include 3W and 10W UV lasers, as well as CO2 and fiber laser options for specific material requirements.
The minimum QR code size is 1.2mm x 1.2mm. The minimum line width is 0.04mm, and the minimum character size is 0.2mm, enabling ultra-compact marking on space-constrained PCBs.
For a standard 4mm x 4mm QR code, the complete cycle time (board loading + positioning + marking + barcode verification + board unloading) is approximately 7 seconds. Actual speed varies based on barcode size, complexity, and board dimensions.
The R6-U supports PCB sizes from 50mm x 50mm (minimum) to 510mm x 460mm (standard maximum). With track delay mode enabled, it can handle boards up to 600mm x 460mm. PCB thickness range is 0.5mm to 5mm.
The UV 355nm laser can mark on PCB (FR4, green/black/blue solder mask), FPC (flexible printed circuits), ceramic substrates, plastic housings, metal shielding covers, glass coatings, silicon wafers, and anodized aluminum. The cold-marking process works on both light and dark surfaces.
Yes, the R6-U offers an optional flip function (翻版功能) that enables automatic double-sided marking. The board is flipped within the machine and marked on both sides without operator intervention.
Yes, the R6-U includes a built-in online barcode reading and verification system. After each mark, the system immediately reads and grades the barcode quality. Unreadable or low-quality codes trigger automatic re-marking or operator alert based on your configuration.
The R6-U supports all major 1D barcode formats (Code 39, Code 128, EAN-13, UPC-A, etc.) and 2D formats (QR Code, Data Matrix, PDF417, Aztec). It also supports custom text, serial numbers, date codes, logos, and vector graphics.
Absolutely. The R6-U features Ethernet connectivity and open API for seamless integration with MES, ERP, Shopfloor, and IMS systems. It supports automatic work order downloads, serial number synchronization, and real-time production data upload.
The 5W UV laser source has a typical service life of 20,000-30,000 operating hours under normal conditions. With proper maintenance and cooling, many units exceed this estimate. The laser diode module is field-replaceable when eventual replacement is needed.
The standard 5W UV laser uses air cooling, which is sufficient for most production environments with ambient temperatures below 27 degrees C. For 10W configurations or high-temperature environments, an external water chiller is required. CO2 versions may also need water cooling.
The JHIMS proprietary software accepts Gerber files (RS-274X), DXF files, and standard image formats for barcode position mapping and template creation. You can import your PCB design files directly for automatic barcode placement programming.
The R6-U uses a dual-camera CCD+MARK vision system. Camera 1 captures the entire PCB and identifies pre-defined fiducial marks (MARK points) for rough positioning. Camera 2 provides high-resolution local alignment for precise marking location. The system automatically compensates for board rotation, translation, and minor warpage, achieving +-0.02mm repeatable accuracy without manual intervention.
🛡️ Warranty & After-Sales
UV lasers (355nm) use cold photochemical ablation, ideal for PCBs because they create zero thermal stress on delicate traces and components. CO2 lasers (10,600nm) are better for organic materials like wood, glass, and acrylic but can damage PCB substrates due to heat. Fiber lasers (1,064nm) excel at metal marking but are less suitable for FR4 PCB substrates. For electronics manufacturing, UV is strongly recommended for its cold-marking capability and broad material compatibility.
Yes, the R6-U supports array marking functionality for multi-panel boards. You can set up marking patterns for up to 24 individual barcodes on a single panel in one automated cycle. The array feature allows you to define the first and last position on the panel and automatically generates all intermediate marking positions, dramatically reducing programming time for high-density panels.
The R6-U requires a clean, dry compressed air supply at 0.5-0.7 MPa (5-7 Kgf/cm2). Daily checks should verify air pressure between 0.1-0.2 MPa at the machine inlet. The system includes pneumatic components from Airtac for reliable cylinder and solenoid valve operation in the top-plate clamping, door lock, and board stop mechanisms.
The R6-U is designed for bare PCB marking before component placement in the SMT line. However, it can mark on certain areas of assembled PCBs if there is sufficient clearance. The top-side component clearance is 25mm excluding board thickness, and bottom-side clearance is 15mm. The focal length of the field lens at f=254mm standard provides adequate working distance for most applications.
Yes, UV laser marks are permanent because the 355nm laser photons directly break molecular bonds on the material surface through photochemical ablation, creating a physical micro-etching rather than a surface coating. These marks survive reflow soldering temperatures up to 260 degrees C, PCB washing processes, harsh chemicals, and mechanical abrasion. Unlike ink or label-based marking, laser marks will not fade, peel, or degrade over the product entire lifecycle.
Air-cooled R6-U, standard for 5W UV, uses integrated fans for laser heat dissipation and is suitable for ambient temperatures up to 27 degrees C. Water-cooled configurations, required for 10W UV or CO2 lasers, use an external chiller unit that circulates cooled water through the laser head. Water cooling provides more stable laser output in high-temperature environments and enables higher power operation. The water chiller ships with the machine in water-cooled configurations.
The R6-U includes a dedicated dust collection fan with a 2.5-inch exhaust duct for laser fume extraction. An optional smoke purifier is available for facilities without external ventilation. The extraction system captures particulates generated during the laser marking process, protecting operators and maintaining clean-room compatibility. The collection bag and filters should be cleaned every 15 days and replaced according to the maintenance schedule.
The R6-U comes with a standard 12-month warranty covering all manufacturing defects in materials and workmanship. The UV laser source carries a separate 12-month or 10,000-hour warranty (whichever comes first). Extended warranty packages of up to 36 months are available.
🚚 Shipping & Payment
Yes, JHIMS provides optional on-site installation, commissioning, and operator training by our certified field service engineers. We also offer remote installation guidance via video call and comprehensive training documentation. Training typically takes 2-3 days for operators and 1 day for maintenance staff.
JHIMS provides multi-channel technical support: email support ([email protected]) with a first reply within 12 working hours (Mon–Sat, 09:00–23:00 China Standard Time, UTC+8), WhatsApp/Telegram instant messaging, remote desktop diagnostic sessions, and on-site service visits when required. A stopped line is picked up 24/7 on WhatsApp.
We recommend keeping the following spare parts on hand: Omron photoelectric sensors (PN: 2.5.1.1.0004), electronic relays (PN: 2.6.6.2.0003), drive belts (PN: 3.2.2.1.0268 and 3.2.2.1.0054), water chiller filter cartridge (PN: 3.6.6.0.0315), pre-filter (PN: 3.9.4.0.0012), main filter (PN: 3.9.4.0.0013), and gas filter (PN: 3.9.4.0.0014). A complete spare parts kit is available for purchase.
Daily: clean conveyor belts, check sensors, verify software operation. Weekly: lubricate X/Y ball screws, check air pressure, inspect cooling water level, clean fume extractor. Monthly: tighten all mechanical fasteners, clean CCD lens and field lens, lubricate guide rails, inspect belts and couplings. Quarterly: clean XY axis lead screws and rails, replace air filters if needed. Semi-annually: replace filter cotton, comprehensive machine inspection.
Yes, JHIMS offers warranty extension packages of 12, 24, and 36 additional months. Extended warranties include priority technical support, annual preventive maintenance visits, and discounted spare parts. Contact our sales team for pricing.
The R6-U is shipped in a custom wooden crate with approximate dimensions of 1200mm x 1800mm x 2000mm and a total shipping weight of approximately 700 kg (including packaging and crate). The machine itself weighs approximately 550 kg.
We offer sea freight (FCL/LCL) for international shipments with typical transit times of 15-45 days depending on destination, air freight for urgent deliveries with 5-10 day transit, and express courier (DHL/FedEx/UPS) for spare parts and small accessories. All shipments are fully insured.
Standard payment terms: 70% T/T deposit with the order, 30% T/T before shipment. Existing customers may use L/C (Letter of Credit) at sight.
Standard lead time for R6-U is 4-6 weeks from order confirmation to shipment, depending on current production queue and configuration complexity. Rush orders may be accommodated at an additional charge. Custom configurations may require 6-8 weeks.
JHIMS ships to over 30 countries worldwide. We have established logistics partnerships for smooth customs clearance in North America, Europe, Southeast Asia, Middle East, South America, and Africa. Contact our sales team to confirm shipping availability and estimated transit time to your specific location.
Yes, the R6-U is CE compliant and meets all applicable EU directives for machinery safety, electromagnetic compatibility (EMC), and laser safety. CE documentation and Declaration of Conformity are provided with each machine shipped to EU destinations.
Each R6-U shipment includes: user operation manual, maintenance manual, shipping/packing list, factory acceptance test (FAT) report, CPK test certificate, calibration certificates, CE Declaration of Conformity, commercial invoice, packing list, and bill of lading/airway bill.
Yes, we strongly encourage customers to send sample PCBs for test marking at our Shenzhen facility. We will provide detailed test reports including marking quality images, barcode readability grades, and cycle time measurements. Video conference demonstration is also available upon request.
Absolutely! We welcome factory visits from prospective customers. You can see the R6-U assembly line, observe live machine demonstrations, meet our engineering team, and discuss your specific application requirements. Please contact our sales team to schedule a visit.
We accept payments in USD (US Dollar), EUR (Euro), CNY (Chinese Renminbi), and GBP (British Pound). Multi-currency invoicing is available. All international transactions are processed through our designated bank with SWIFT transfer capability.
LEARNING CENTER
Knowledge Center — Expert Resources
Practical guides and reference material for the JHIMS R6-U UV laser marking machine — from operation and calibration to PCB traceability integration, written by JHIMS engineers.
Reference videos: Fully automatic PCB laser engraving machine; This PCB Laser Engraves a Motherboard in SECONDS – You Won’t Believe Your Eyes!; PCB Laser Engraving Machine Training | Step-by-Step Tutorial for Beginners | Part 1.
| Weight | 550 kg |
|---|---|
| Dimensions | 950 × 1550 × 1680 mm |
| Total Power Consumption | 2.5 kW (Host: 1.8 kW) |
| Power Supply | Single-phase 220V AC, 50Hz |
| Laser Power | 5W (3W/10W optional) |
| Min/Max PCB Size | 50mm x 50mm / 510mm x 460mm (600mm x 460mm with track delay) |
| PCB Thickness Range | 0.5mm – 5mm |
| Positioning System | CCD + MARK dual-camera vision |
| Marking Content | 1D barcodes, 2D QR codes, Data Matrix, text, serial numbers, logos, graphics, date codes |
| Top-Side Component Clearance | 25mm (excluding PCB thickness) |
| Bottom-Side Component Clearance | 15mm (excluding PCB thickness) |
