The DPS-2 is compatible with Hanwha (Samsung), Yamaha, JUKI, Hitachi, and Fuji pick and place machines. Interface kits are available for each brand. Contact us for compatibility verification with your specific machine model.

0.5–1 second per lens per channel under standard operating conditions. Actual speed depends on lens geometry, weight, and the specific PLC profile configured for your lens type.

The DPS-2 supports lenses from 3mm to 25mm in diameter, including inner/outer three-feet and four-angle reflection lenses. The ±1mm tolerance range is based on specific lens shape and pin dimensions.

Standard configuration supports 3–6 channels. Custom configurations are available for 1–10 channels depending on your production requirements. Each channel operates independently with its own vibration parameters.

It’s a JHIMS-patented technology that uses two independent vibration frequencies — one for the circular bowl (bulk movement) and one for the linear track (precision alignment). This eliminates resonance interference common in single-frequency feeders, ensuring stable amplitude regardless of load.

Yes. Anti-static bowl coating, ESD-safe track inserts, and grounding provisions are available as options. This configuration is recommended for LED and semiconductor-grade lens handling.

Less than 65 dB(A) at 1 meter distance, measured under standard operating conditions. Optional acoustic enclosures can reduce this to under 55 dB(A) for noise-sensitive environments.

Standard configuration uses Mitsubishi FX5U PLC with a 7-inch Weintek HMI touchscreen. Alternative configurations with Siemens S7-1200 or Pro-face HMI are available upon request.

Under 5 minutes using the PLC preset profile system. Operators simply select the saved profile on the HMI, adjust track width knobs (tool-less), and swap bowl inserts if needed (magnetic mount).

Rated power consumption is 0.55 KVA. Typical operating consumption is approximately 0.35 KVA. Power supply requirement is 220V AC, 50–60Hz, single phase.

Yes. The PLC supports Modbus TCP and Ethernet/IP protocols for integration with MES/ERP systems. Real-time production data (speed, count, downtime, error codes) can be streamed to your factory monitoring system.

Dimensions: 1350mm (L) × 1000mm (W) × 750mm (H). Net weight is approximately 180 kg. A reinforced floor is not required for standard installation.

The Weintek HMI supports English, Chinese, Spanish, Vietnamese, Hindi, and Turkish as standard. Additional language packs can be installed upon request. The PLC interface and training documentation are available in English and Chinese by default.

1-year comprehensive warranty covering all parts and labor. Lifetime technical support is included. Extended warranty plans of up to 3 years are available for purchase.

Yes. JHIMS engineers can travel to your facility for on-site installation, commissioning, and operator training. Remote video-guided installation is also available as a lower-cost alternative. Both options include full documentation and training materials.

Contact our support team via WhatsApp (+86 189 7533 5491), email ([email protected]), or Telegram (@jinghe_tech). We offer remote diagnostics via video call, and can dispatch service engineers for critical issues. Standard response time is under 4 hours during business hours.

Yes. We maintain inventory of all critical spare parts in Shenzhen. Common consumables (track inserts, bowl coatings, sensors) ship within 48 hours. For major components (motors, PLC), typical lead time is 5–7 working days via DHL/FedEx express.

Absolutely. We use video call diagnostics as the first line of support. Over 80% of technical issues are resolved remotely within 2 hours. VPN-based PLC remote access is available for customers who opt into our connected service program.

Daily: visual inspection of track cleanliness and sensor function (2 minutes). Weekly: clean bowl and track surfaces, check pneumatic pressure (10 minutes). Monthly: inspect vibration units, lubricate guide rails, verify sensor calibration (30 minutes). Annual: full preventive maintenance by JHIMS or certified partner (4 hours).

JHIMS has authorized service partners in Vietnam, India, Mexico, and Turkey. Additional regions are served remotely with expedited parts dispatch. We are actively expanding our service network — contact us for the latest coverage in your region.

Yes. We provide a free sample testing service. Send us 500–800 of your actual lens samples, and we will run a comprehensive test at our Shenzhen facility. You’ll receive a detailed test report with video documentation, speed data, and rejection rate analysis. Test lenses are returned with your machine shipment.

Standard delivery time is 15–20 working days after receipt of deposit. Custom configurations or large-volume orders may require 25–35 working days. Express manufacturing (10 working days) is available with a priority surcharge.

Standard terms: 50% deposit with order, 50% before shipment. We accept T/T (wire transfer), L/C (letter of credit for orders above $50,000), and Western Union. For established customers, we offer net-30 terms after credit approval.

Each unit is vacuum-sealed in a moisture barrier bag, packed in a reinforced plywood export crate with shock indicators and tilt indicators. The crate is fumigated and ISPM-15 compliant for international shipping. Insurance is included in all shipments.

JHIMS ships to over 30 countries worldwide. Shipping costs depend on destination, crate dimensions, and your preferred method (air freight: 5–7 days; sea freight: 15–35 days). We provide a detailed shipping quote with your order. DDP (Delivered Duty Paid) terms are available for most destinations.

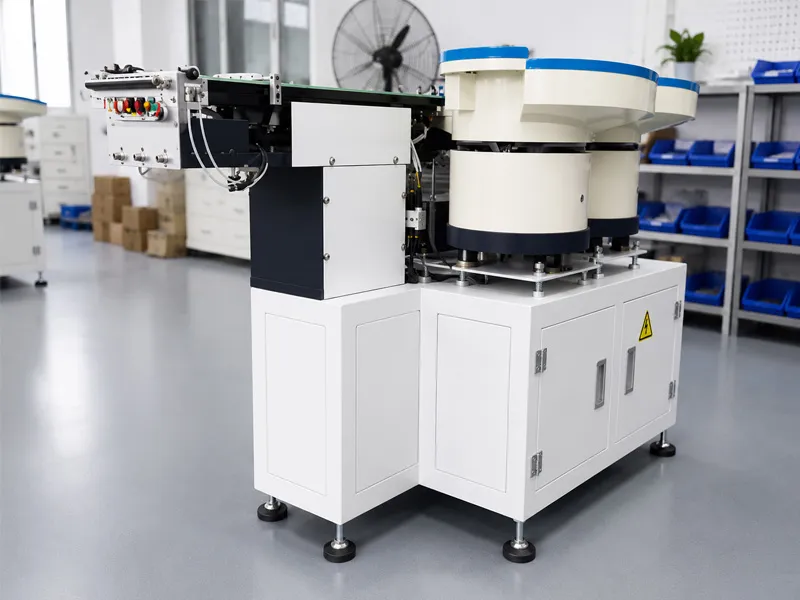

Each shipment includes: machine birth certificate with 120-point QC checklist, CE declaration of conformity, ISO 9001 certificate copy, packing list, commercial invoice, bill of lading, Form E/F (for duty preference where applicable), and the machine’s burn-in test report with your lens samples.

The standard MOQ is 1 unit. We welcome trial orders. For volume orders of 10+ units, volume pricing discounts and priority production scheduling apply.

Typical customs clearance takes 1–3 working days for most destinations. Our export documentation package is designed to minimize delays. We can recommend customs brokers in your country if needed, or work with your preferred broker.

Yes. We offer trade-in credit for older JHIMS feeders when upgrading to the latest DPS-2 model. The trade-in value is assessed based on the machine’s age, condition, and maintenance records. Contact our sales team for a trade-in evaluation.

Absolutely — and we encourage it. Factory visits to our Shenzhen facility are welcomed. You can see the manufacturing process, witness a live DPS-2 demo with your lens samples, and meet our engineering team. We assist with visa invitation letters for international visitors.
